S1950AA-49.152 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> S1950AA-49.152

S1950AA-49.152: DescriptionACMOS Output Clock Oscillator, 32MHz Min, 125MHz Max, 49.152MHz Nom; CategoryPassive components oscillator; File Size670KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

S1950AA-49.152 Overview

ACMOS Output Clock Oscillator, 32MHz Min, 125MHz Max, 49.152MHz Nom

S1950AA-49.152 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BULK
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	S1903
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	32 MHz
Nominal operating frequency	49.152 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	ACMOS
Output load	50 OHM
physical size	7mm x 5mm x 1.8mm
longest rise time	2 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

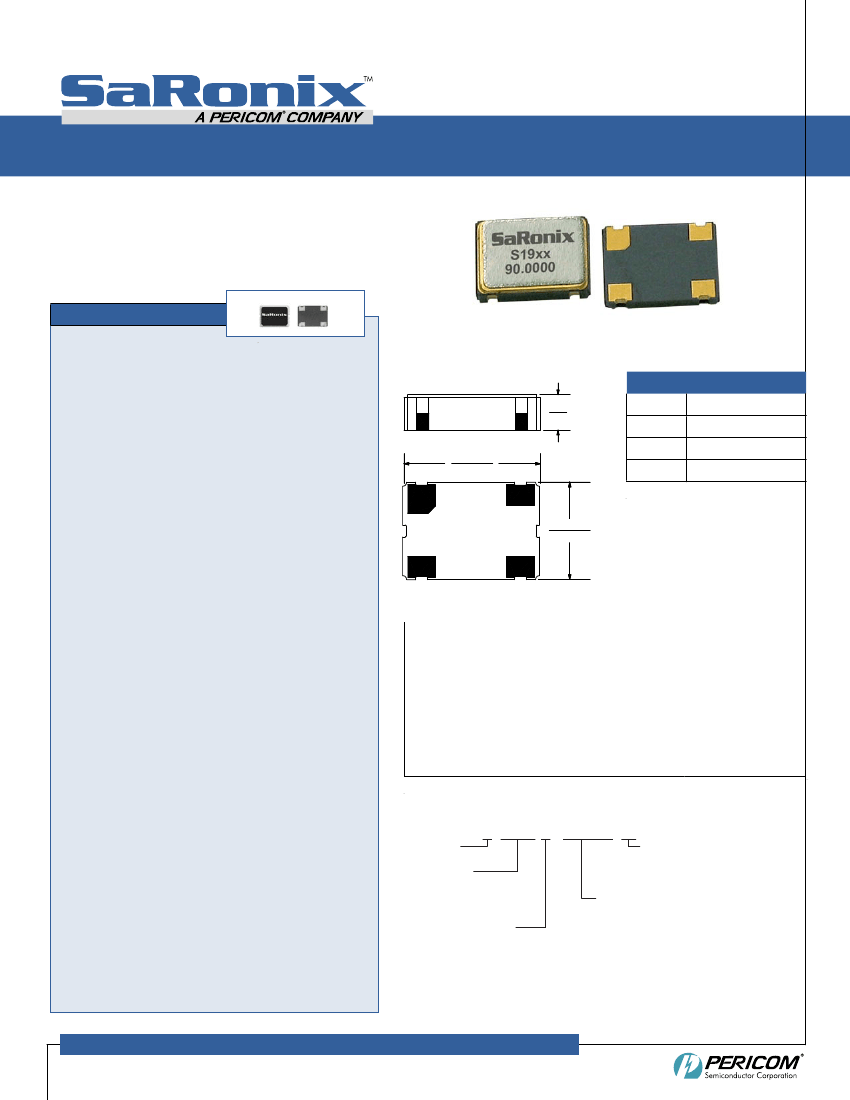

S1903 and S1950 Series

3.3V and 5V ACMOS/TTL, High Frequency

Crystal Clock Oscillator (XO)

Actual Size = 5 x 7mm

Product Features

• 3.3V or 5V ACMOS/TTL compatible logic levels

• Very tight frequency stability available

• Fast clock edge rate

• Pin-compatible with standard 5x7mm packages

• Designed for standard reflow and washing

techniques

• Pb-free and RoHS/Green compliant

Packaging Outline

1.8

Max

.071

Pin Functions

Function

OE Function

Ground

Clock Output

7.0±0.2

.276±.008

Product Description

The S19xx Series is a 3.3V or 5V crystal clock oscillator

that achieves superb stability and fast rise/fall edges

over a broad range of operating conditions and

frequencies. The output clock signal, generated

internally with a PLL oscillator design, is compatible

with ACMOS/TTL logic levels. The device, available

on tape and reel, is contained in a 5x7mm surface-

mount ceramic package.

5.0±0.2

.179±.008

Common Frequencies

Contact SaRonix for additional frequencies

Applications

The S19xx Series is an ideal reference clock for high-

speed applications requiring tight stability, including:

• T1 / E1 line cards

• T3 / E3 line cards

• Network processors

• Industrial controls

32.7680 MHz

35.3280 MHz

38.8800 MHz

40.0000 MHz

44.7360 MHz

45.0000 MHz

48.0000 MHz

49.1520 MHz

54.0000 MHz

60.0000 MHz

61.4400 MHz

66.0000 MHz

76.8000 MHz

77.7600 MHz

80.0000 MHz

90.0000 MHz

98.3040 MHz

108.0000 MHz

120.0000 MHz

122.8800 MHz

Ordering Information

½½½½½½½

½½½½½½½½½½½½½½

½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½ ½

½½½½½½½½½½½½½½½

½½½½½½½½½

½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix

All specifications are subject to change without notice.

DS 187 Rev G | 08/11/05
