M5S13ZBJFREQ datasheet, PDF - EEWORLD Datasheet

M5S13ZBJFREQ: DescriptionPECL Output Clock Oscillator, 19.44MHz Min, 80MHz Max; CategoryPassive components oscillator; File Size257KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M5S13ZBJFREQ Overview

PECL Output Clock Oscillator, 19.44MHz Min, 80MHz Max

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT
maximum descent time	2.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	M5S
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	19.44 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	PECL
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	2.5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

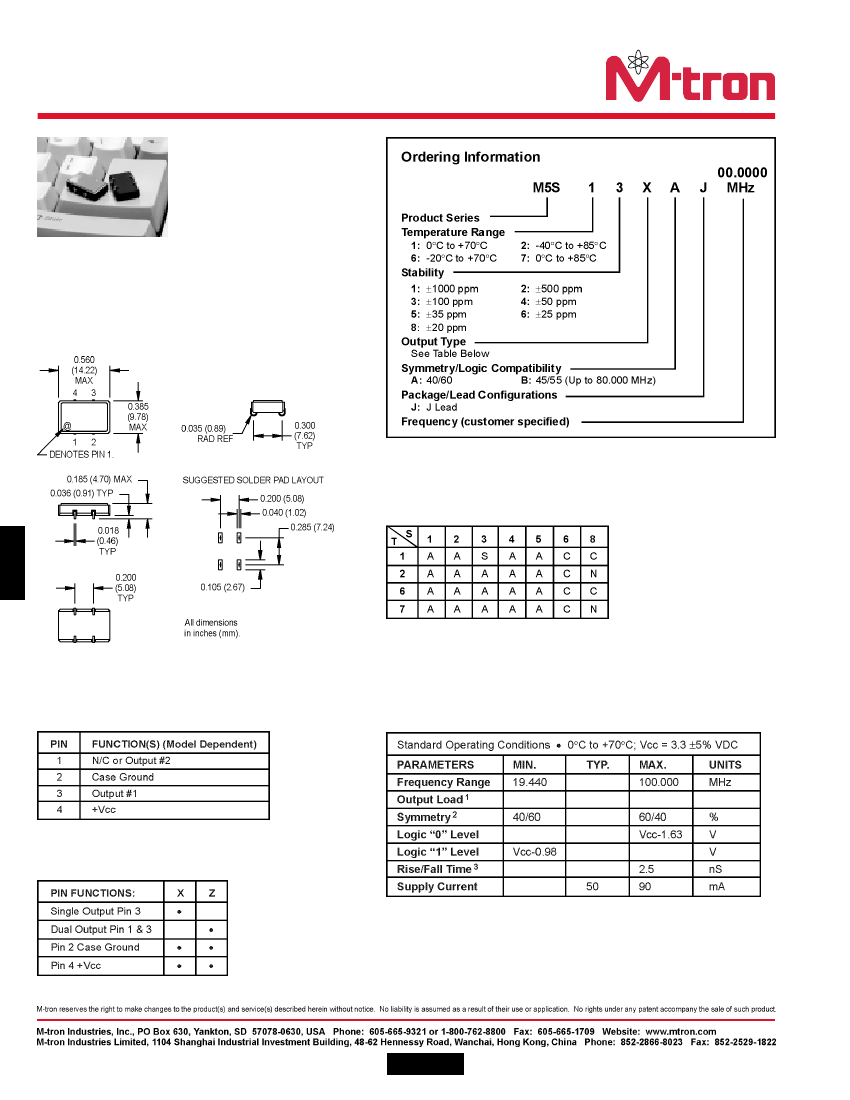

M5S Series 3.3 Volt PECL Oscillators

M5S Series PECL Clock Oscillators

with Optional Complementary Outputs.

PLL Version

OBSOLETE

Available Stabilities vs. Temperature

Pin Connections

Electrical Specifications

A = Available

N = Not Available

S = Standard

C = Consult Factory

PECL Output Type

Internally terminated outputs. See load circuit diagram #4 on page 137.

Symmetry is measured at Vcc-1.3 V level.

3

Rise/Fall times are measured between Vcc-0.98 and Vcc-1.63.

Utilizes PLL clock generation. Not recommended for low jitter applications.

See page 136, Figure 2 for suggested solder profile.

1

2

76
