PE4056: DescriptionBNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing; CategoryThe connector; File Size257KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE4056 Overview

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing

Preview

Download Datasheet

View All

BNC Female Connector Clamp/Solder Attachment

4 Hole Flange For RG58, RG55, RG141, RG142,

RG223, RG400, .500 inch Threaded Hole Spacing

TECHNICAL DATA SHEET

PE4056

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142,

RG223, RG400, .500 inch Threaded Hole Spacing

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

BNC Female

RG58,RG55,RG141,RG142,RG223,RG400

Clamp/Solder

Straight

4 Hole Flange

Electrical Specifications

Impedance, Ohms

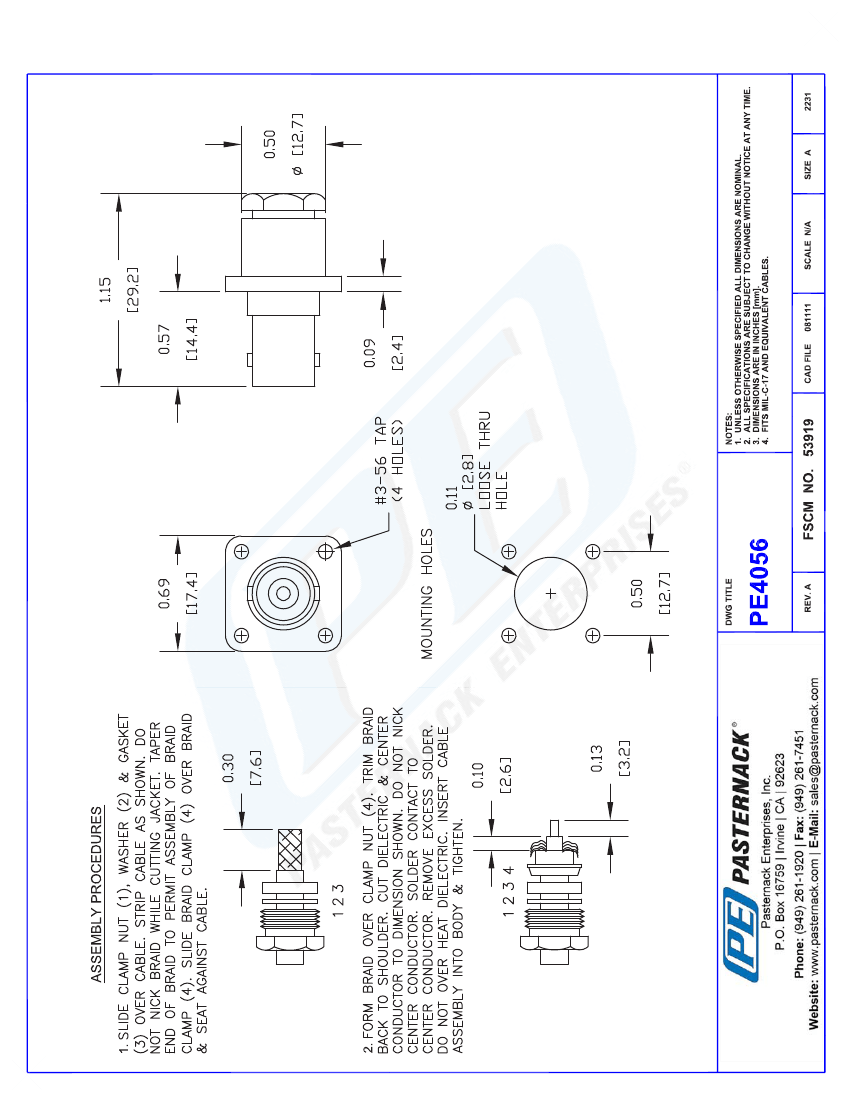

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

1.15 [29.21]

0.687 [17]

0.687 [17.45]

0.041 [18.6]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

BNC Female

Brass, Gold

Brass, Nickel

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/bnc-female-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4056-p.aspx

BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142, RG223, RG400, .500

inch Threaded Hole Spacing from Pasternack Enterprises has same day shipment for domestic and International orders. We

maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic products.

PE4056 REV
