REVERSE POLARITY TNC MALE
STANDARD SMA MALE
RG142B/U
COMPONENTS
IMPEDANCE
50 OHM
50 OHM
50 OHM
Standard Lengths
-12
-24
-36
-48
-60
12''
24"
36"
48"
60"
-XXX Custom Length in inches
REVERSE POLARITY
TNC MALE
STANDARD
SMA MALE
PE34854LF-XX
REV. A
DWG TITLE
DES.

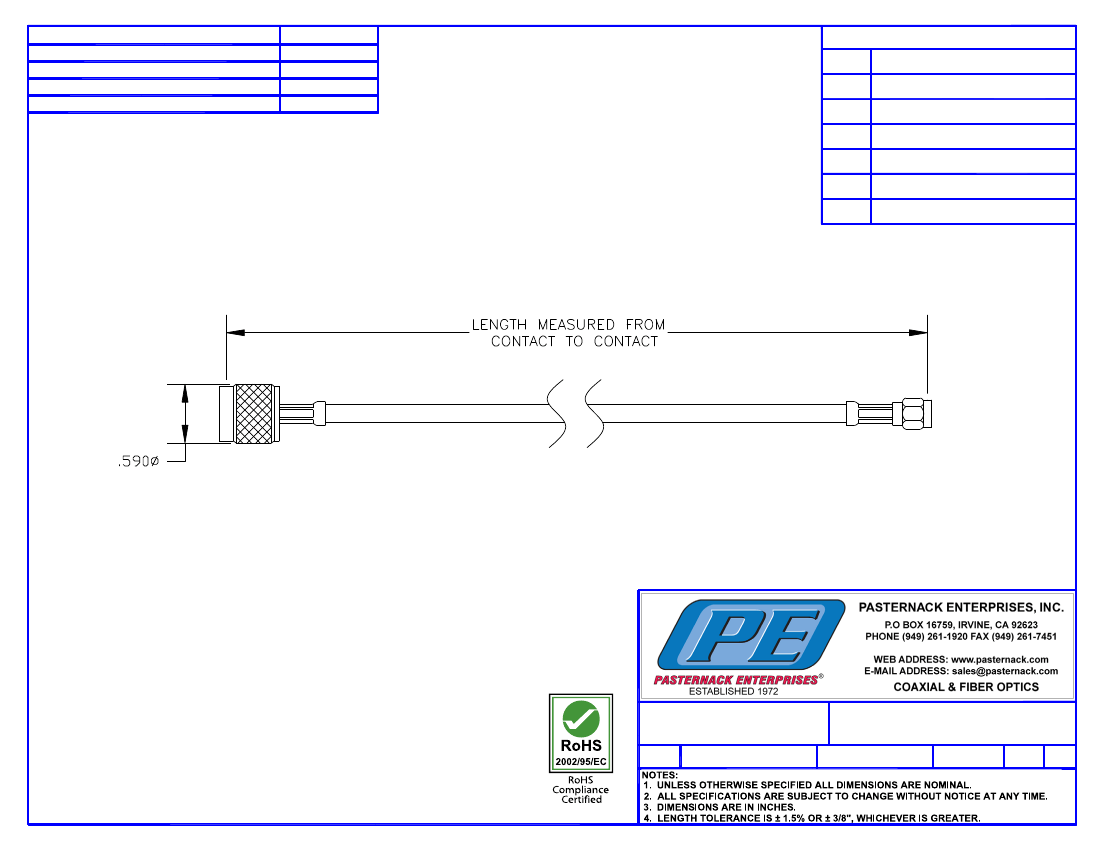

CABLE ASSEMBLY, RG142B/U, REVERSE
POLARITY TNC MALE TO STANDARD SMA
MALE (LEAD FREE)
020508
SCALE N/A
SIZE A
147
FSCM NO. 53919
CAD FILE
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES.
4. LENGTH TOLERANCE IS ± 1.5% OR 10mm, WHICHEVER IS GREATER.
