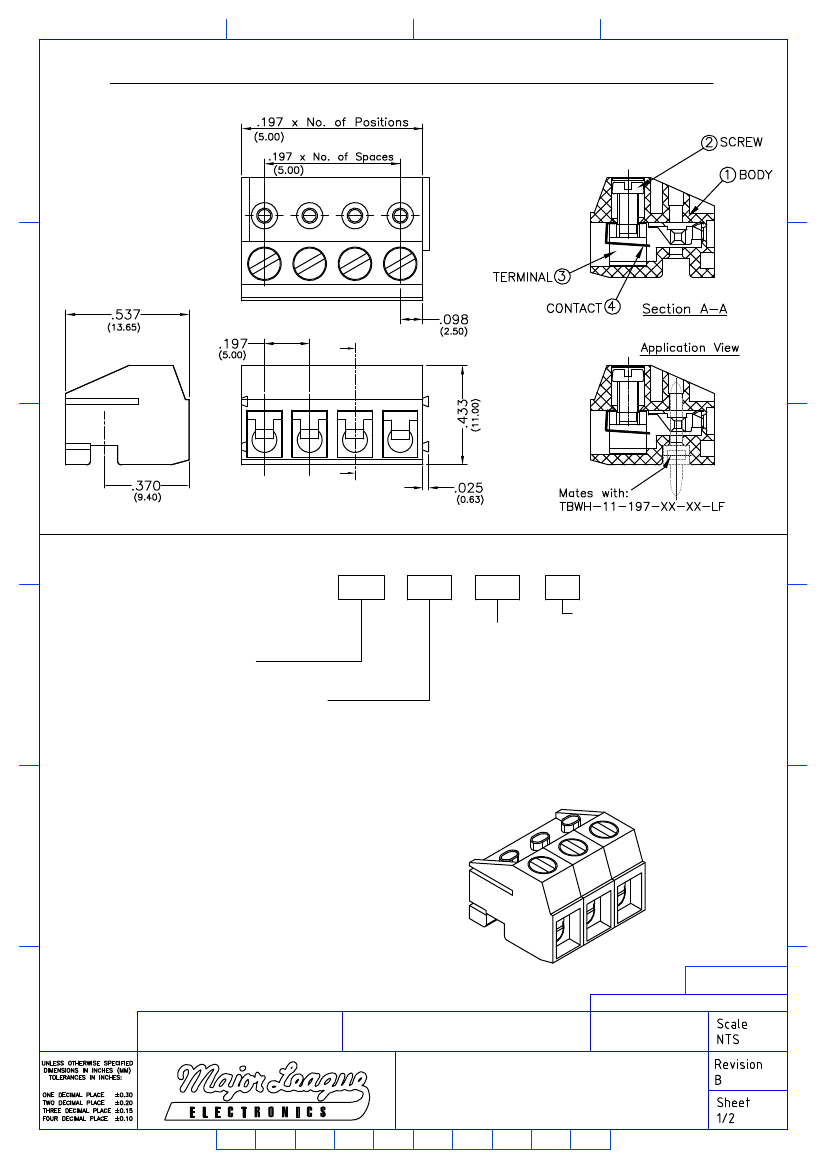

Major League Electronics .197 cl Wire Protector Terminal Blocks
A
A
Ordering Information
TBW-11- 197 -
XX
-
XX
- LF
Lead Free
Color
197 = .197 (5.00) cl
Pitch
No. of Positions
02 - 24
Specifications
Current Rating: 10 Ampere
Voltage Rating: AC 250V
Wire Range: 14-24 AWG
Dielectric Withstanding Voltage: AC 2500V/1 minute
Insulation Resistance: DC 500V 500MΩ
Operating Temperature: -33°C to + 105°C
Strip Length: .197-.236 (5-6mm)
Max Torque: 3.04 lb-in (3.5kgf. cm)
Materials
1. Body: PA66 (Nylon), UL94 V-0
2. Screw: M2.5*P0.45, C1018 Steel, Zinc Plated
3. Terminal: Brass, Nickel Plated
4. Contact: Phosphor Bronze, Tin Plated
GR = Green (Standard)
BK = Black
BL = Blue
WH = White
GY = Grey
OR = Orange
YW = Yellow
RD = Red
BR = Brown
Mates With:
TBWH-11-197-XX-XX-LF
Parts are subject to change without notice
TBW-11-197-XX-XX-LF
.197cl Wire Protector Terminal Block
Interlock
05 DEC 08
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
Revisions
Revision B - (23rd Mar 2010)
Side view added,
Dimension added .370 (9.40),
Dielectric Withstanding Voltage amended to AC2500V/1 minute,
Insulation Resistance amended to DC 500V 500MΩ,
Strip length information added
Parts are subject to change without notice
TBW-11-197-XX-XX-LF
.197cl Wire Protector Terminal Block
Interlock
05 DEC 08
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
