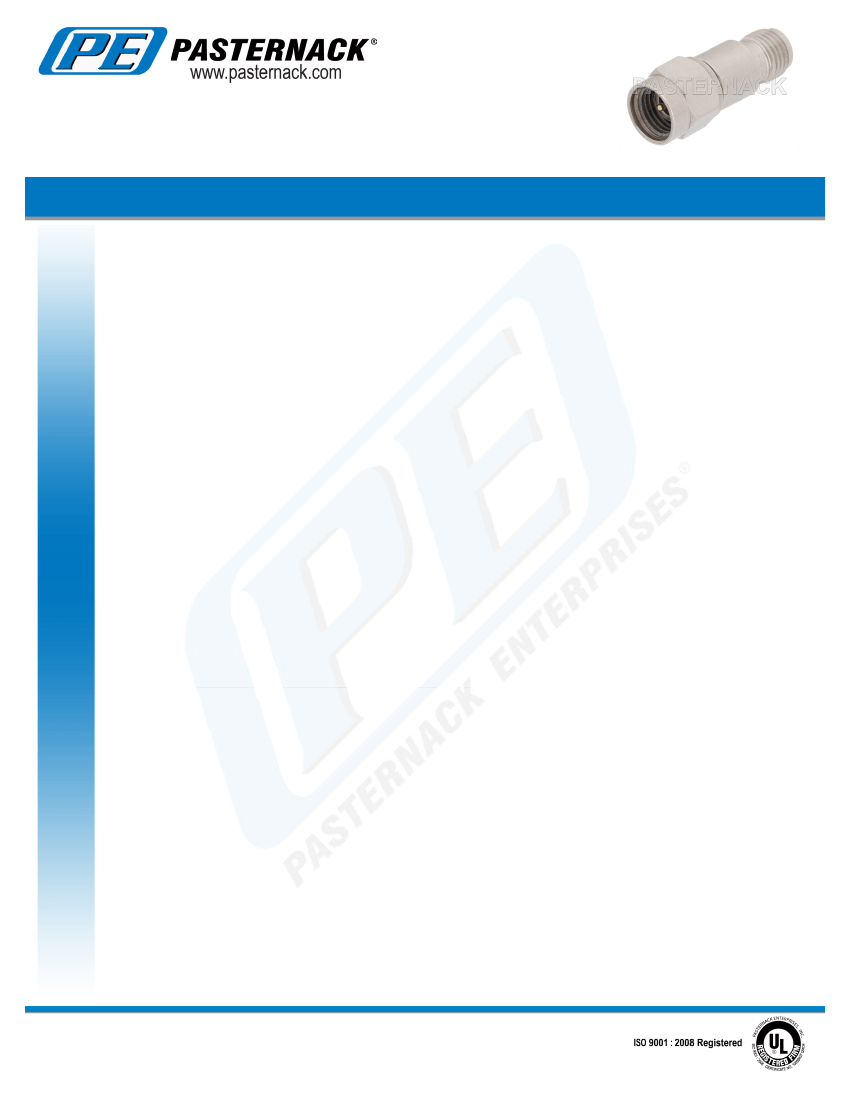

15 dB Fixed Attenuator, 2.92mm Male To 2.92mm Female
Stainless Steel Body Rated To 2 Watts Up To 40 GHz
TECHNICAL DATA SHEET
40 GHz 2.92mm Attenuator
PE7090-15
The Pasternack PE7090 attenuator series is designed with stainless steel 2.92mm connectors for excellent performance
to 40 GHz and 2 Watts. This high frequency attenuator family has a stainless steel round body and coupling nut with gold
plated BeCu (Beryllium Copper) contacts. The high performance 40 GHz attenuator line is available in 3 dB, 6 dB, 10 dB,
15 dB, 20 dB and 30 dB attenuation values for millimeter wave applications.
• DC to 40 GHz
• 2 Watt average power
• Passivated Stainless Steel body and coupling nut
• Gold plated BeCu contacts
Connector 1
Connector 2
Frequency Range (GHz)
Body Material and Plating
Design
Frequency Range (GHz)
Impedance (Ohms)
Power, Max Input (Watts)
Standard Attenuation Values (dB)
VSWR Max
Frequency 1
Range (GHz)
Attenuation Accuracy (GHz)
VSWR
Frequency 2
Range (GHz)
Attenuation Accuracy (dB)
VSWR
Frequency 3
Range (GHz)
Attenuation Accuracy (dB)
VSWR
2.92mm Male
2.92mm Female
DC to 40
Stainless Steel, Passivated
Fixed
DC to 40
50
2
15
1.4:1
DC to 18
0.6
1.3:1
18 to 26.5
0.6
1.4:1
26.5 to 40
1
1.4:1
Configuration
Electrical Specifications
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
15 dB Fixed Attenuator, 2.92mm Male To 2.92mm Female Stainless Steel Body Rated To 2
Watts Up To 40 GHz PE7090-15
The information contained in this document is accurate to the best of our knowledge and representative of the part described
herein. It may be necessary to make modifications to the part and/or the documentation of the part, in order to implement improve-
ments. Pasternack reserves the right to make such changes as required. Unless otherwise stated, all specifications are nominal.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
© 2012 Pasternack Enterprises All Rights Reserved
PE7090-15 REV
1
15 dB Fixed Attenuator, 2.92mm Male To 2.92mm Female
Stainless Steel Body Rated To 2 Watts Up To 40 GHz
TECHNICAL DATA SHEET

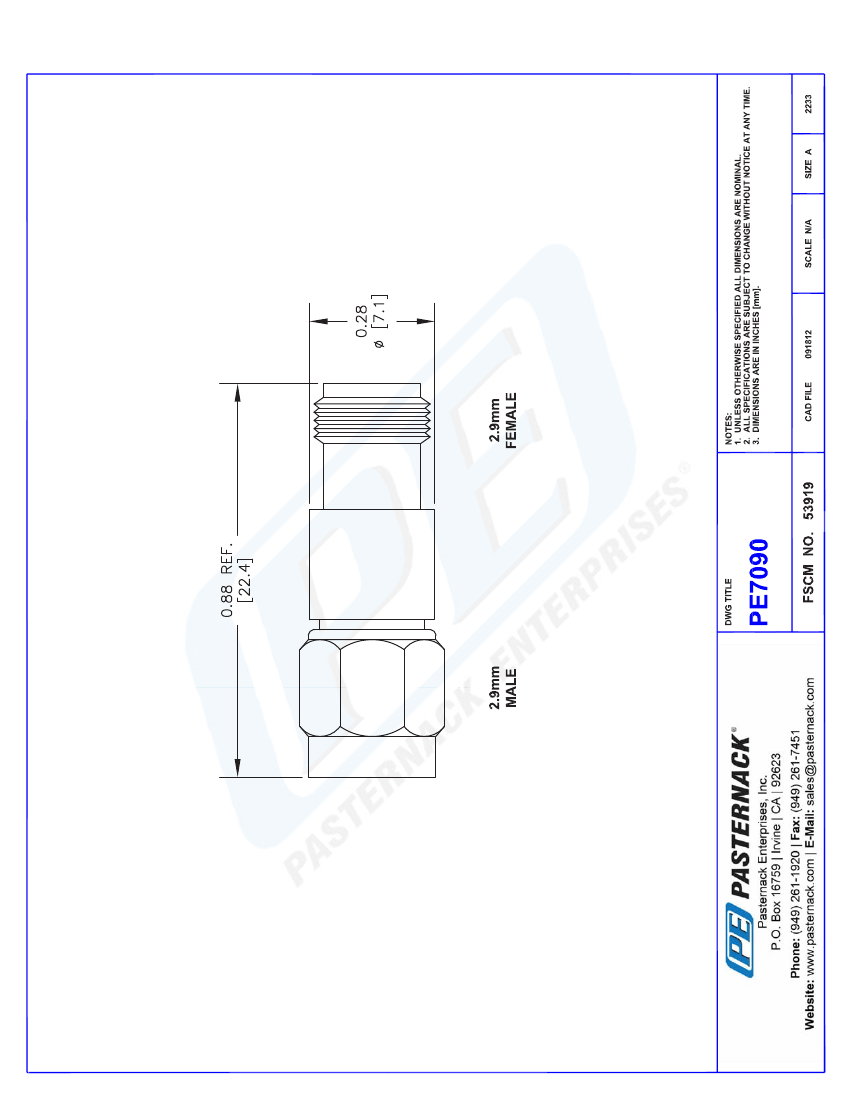

Mechanical Specifications
Temperature Operating Range (deg C)
Body Material and Plating
Connector 1
Type
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Connector 2
Type
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
-65 to +125
Stainless Steel, Passivated
2.92mm Male
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
2.92mm Female
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
PE7090-15
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Other Data
URL:
http://www.pasternack.com/15db-fixed-2.92mm-male-2.92mm-female-2-watts-attenuator-pe7090-15-p.aspx
15 dB Fixed Attenuator, 2.92mm Male To 2.92mm Female Stainless Steel Body Rated To 2 Watts Up To 40 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
The information contained in this document is accurate to the best of our knowledge and representative of the part described
herein. It may be necessary to make modifications to the part and/or the documentation of the part, in order to implement improve-
ments. Pasternack reserves the right to make such changes as required. Unless otherwise stated, all specifications are nominal.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
© 2012 Pasternack Enterprises All Rights Reserved
PE7090-15 REV
2
