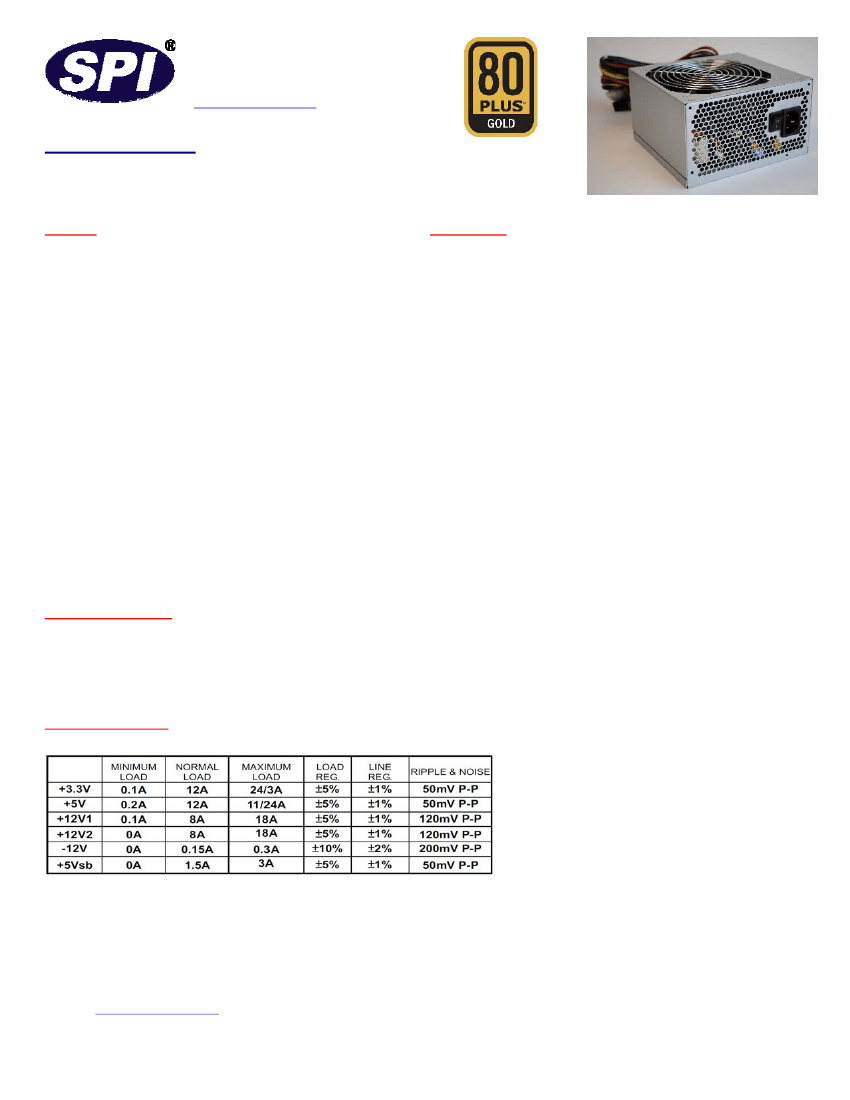

Sparkle Power Inc.
A Leading Power Supply
Manufacturer
Website:
www.sparklepower.com
FSP450-60EGN
(80PLUS Gold, RoHS Compliant)
450 Watts ATX12V 2.3 Switching Power Supply
Meet 2010 ErP
Features
Specification
Complied with ATX12V 2.3 standard
Active Power Factor Correction (PFC) meet EN61000-3-2
High efficiency and reliability
Compatible with European Union Directive 2002/95/EC (Restriction
on Hazardous Substances).
Temperature Range:
Operating: +0°C ~ +40°C on full load
Storage & Shipping: -40°C ~ +70°C
Humidity:
5-85% on operating, 5-95% on storage
Dielectric Withstand:
Primary to frame ground 1800V
AC
for 1
second
Efficiency:
87%
minimum, typical up to
90%
Rise time:
Less than 20ms
Hold-up Time:
17ms minimum at nominal input voltage
Power Good Signal:
Power on delay time 100 ~ 500ms, off delay
1ms minimum (TTL and CMOS compatible)
Remote ON/OFF function
Internal 12V DC fan included
Noise Killer (thermal fan speed control function)
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Complies with FCC part 15 subpart J class B 115Vac operation, and
CISPR 22 class B at 230Vac operation
Leakage Current:
Less than 3.5mA at 264Vac, 50Hz
MTBF:
100,000 hours on maximum load at +25°C
Dimensions (LxWxH):140x150x85.8mm
/ 5.5x5.9x3.4inch
Approved by CUL/UL60950-1, TUV EN60950-1,CB 60950-1 report,
FCC,EMC.
Input Characteristics
Input Range:
90 ~ 264Vac, Full Range Input
Frequency:
47 ~ 63Hz
Input Current:
Max 6A @ 115Vac, 3A @ 230Vac
Inrush Current:
No damage.
Output Characteristics
*+12V1,2,3,4 Peak current is 20A (less than 10mS)
*+5V
sb
peak current is 4A (less than 0.5S)
*+3.3V & +5V total output does not exceed 130W
when +5V is loaded to 24A, then +3.3V maximum load is 3A
when +3.3V is loaded to 24A, then +5V maximum load is 10A
*+12V1 & +12V2 total output does not exceed 420W(35A)
Sparkle Power Inc.
Main Office
1000 Rock Avenue
San Jose, CA 95131
TEL: 408-519-8888
FAX: 408-519-9999
E-MAIL:
info@sparklepower.com
Sparkle Power Inc.
Los Angeles Office
17071 Green Drive
City of Industry, CA 91745
TEL: 626-839-7180
FAX: 626-839-3395
