ET13WG datasheet, PDF - EEWORLD Datasheet

ET13WG: DescriptionManchester Encoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20; CategoryWireless rf/communication Telecom circuit; File Size185KB，6 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

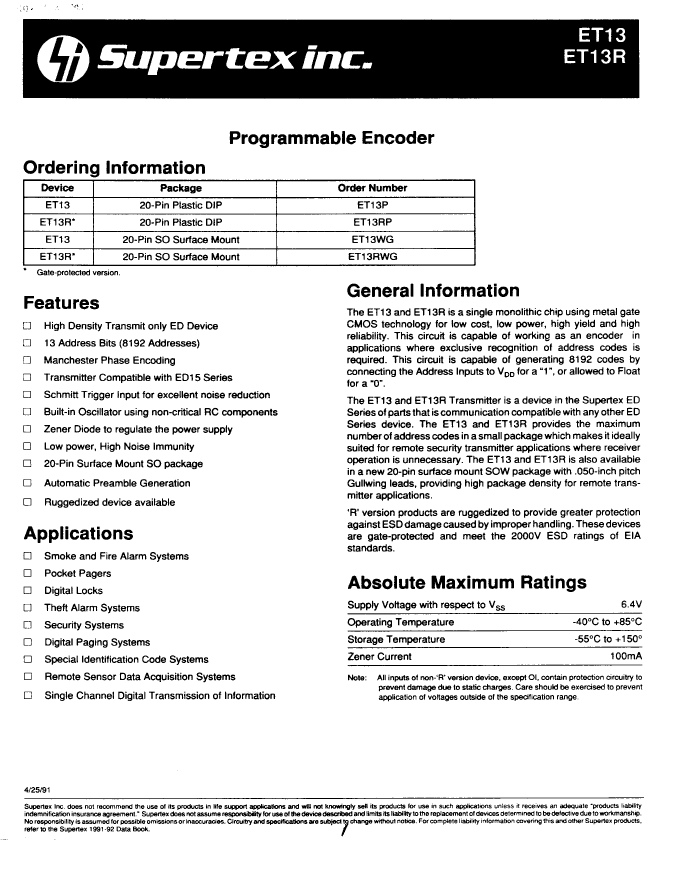

ET13WG Overview

Manchester Encoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Supertex
Parts packaging code	SOIC
package instruction	1.27 MM PITCH, SO-20
Contacts	20
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

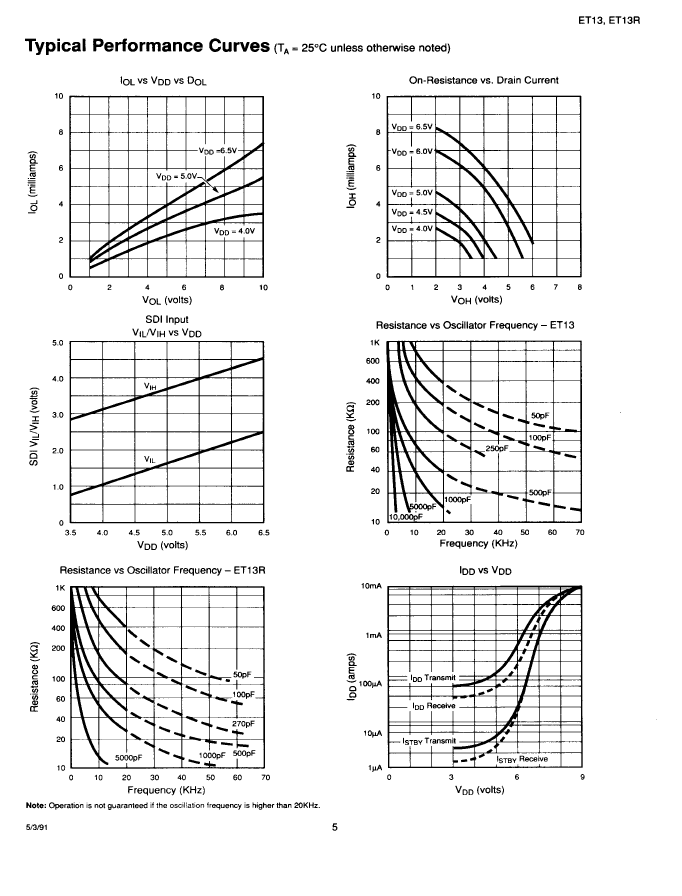

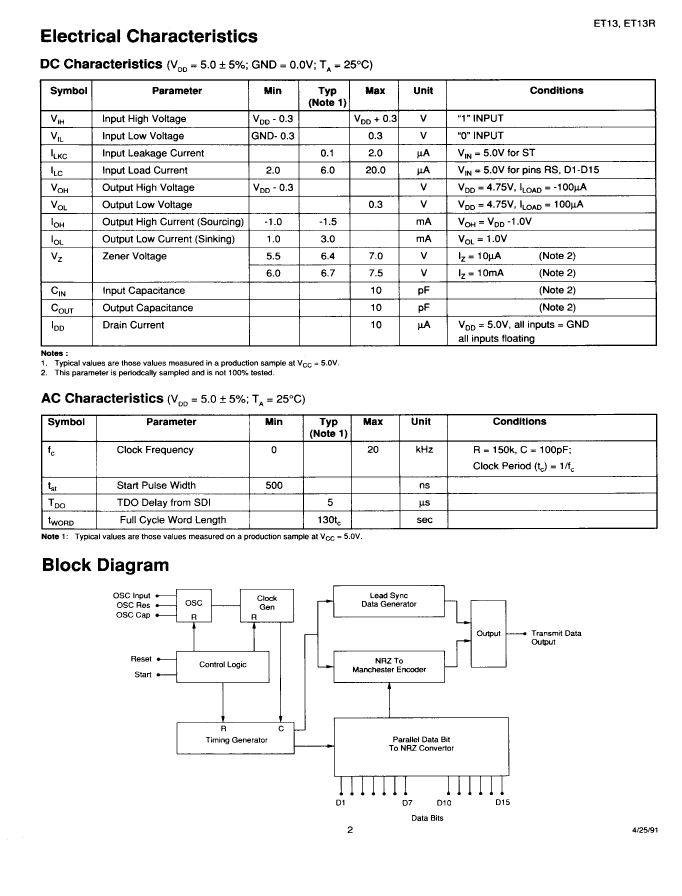

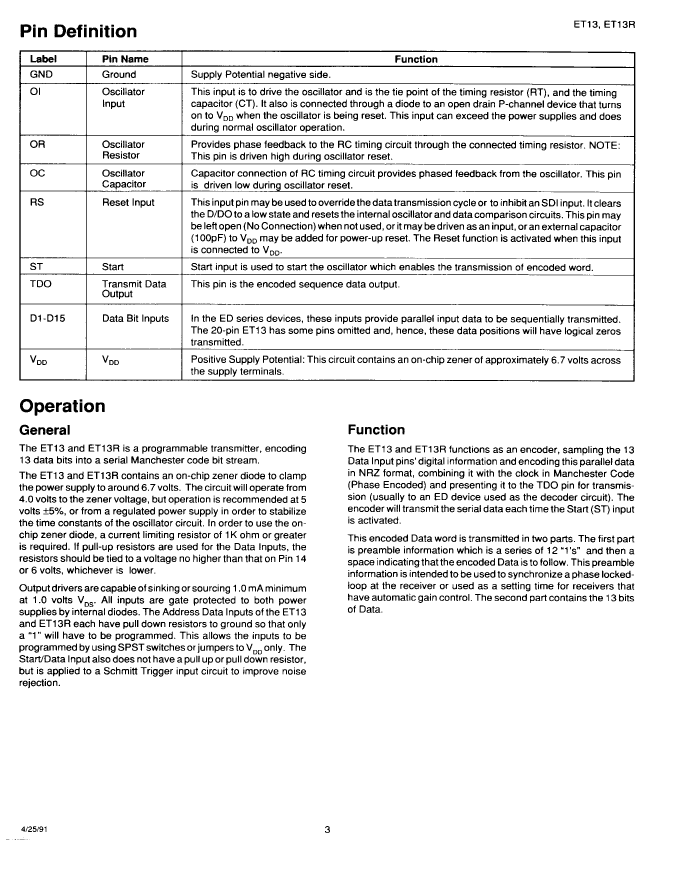

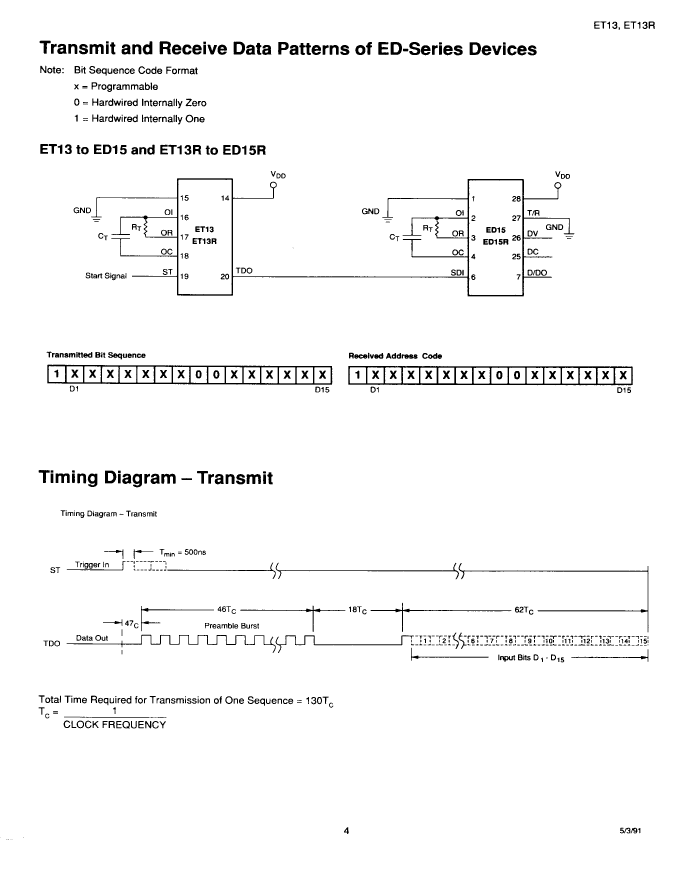

This Material Copyrighted By Its Respective Manufacturer

	ET13WG	ET13RP	ET13RWG	ET13P
Description	Manchester Encoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20	Manchester Encoder, CMOS, PDIP20, PLASTIC, DIP-20	Manchester Encoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20	Manchester Encoder, CMOS, PDIP20, PLASTIC, DIP-20
Parts packaging code	SOIC	DIP	SOIC	DIP
package instruction	1.27 MM PITCH, SO-20	PLASTIC, DIP-20	1.27 MM PITCH, SO-20	PLASTIC, DIP-20
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20
length	12.8 mm	26.162 mm	12.8 mm	26.162 mm
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.445 mm	2.65 mm	4.445 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER	MANCHESTER ENCODER	MANCHESTER ENCODER	MANCHESTER ENCODER
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.62 mm	7.5 mm	7.62 mm
