Coaxial
Amplifier
50Ω
Features
• wideband, 0.1 to 1000 MHz
• rugged, shielded case
• protected by US Patent, 6,943,629
ZFL-1000
0.1 to 1000 MHz
Low Power
Applications
• VHF/UHF
• cellular
• instrumentation
• lab use
CASE STYLE: Y460
Connectors
Model
SMA
ZFL-1000
BRACKET (OPTION “B”)
Price
$79.95
$2.50
Qty.
(1-9)
(1+)
Amplifier Electrical Specifications
MODEL
NO.
FREQUENCY
(MHz)
GAIN
(dB)
MAXIMUM
POWER
(dBm)
Output
(1 dB Compr.)
+9*
Input
(no damage)
+5
DYNAMIC
RANGE
NF
(dB)
Typ.
6.0
IP3
(dBm)
Typ.
+18
VSWR
(:1)
Typ.
DC
POWER
Volt
(V)
Nom.
15
Current
(mA)
Max.
105
f
L
ZFL-1000
0.1
f
U
1000
Min.
17
Flatness
Max.
±0.7
In
1.5
Out
2.1*
* Output VSWR 2.8:1 maximum over 750-1000 MHz, 1 dB compression +7dBm at 500-1000 MHz
Open load is not recommended, potentially can cause damage.
With no load derate max input power by 20 dB
Maximum Ratings
Operating Temperature
Storage Temperature
DC Voltage
-20°C to 71°C
-55°C to 100°C
+17V Max.

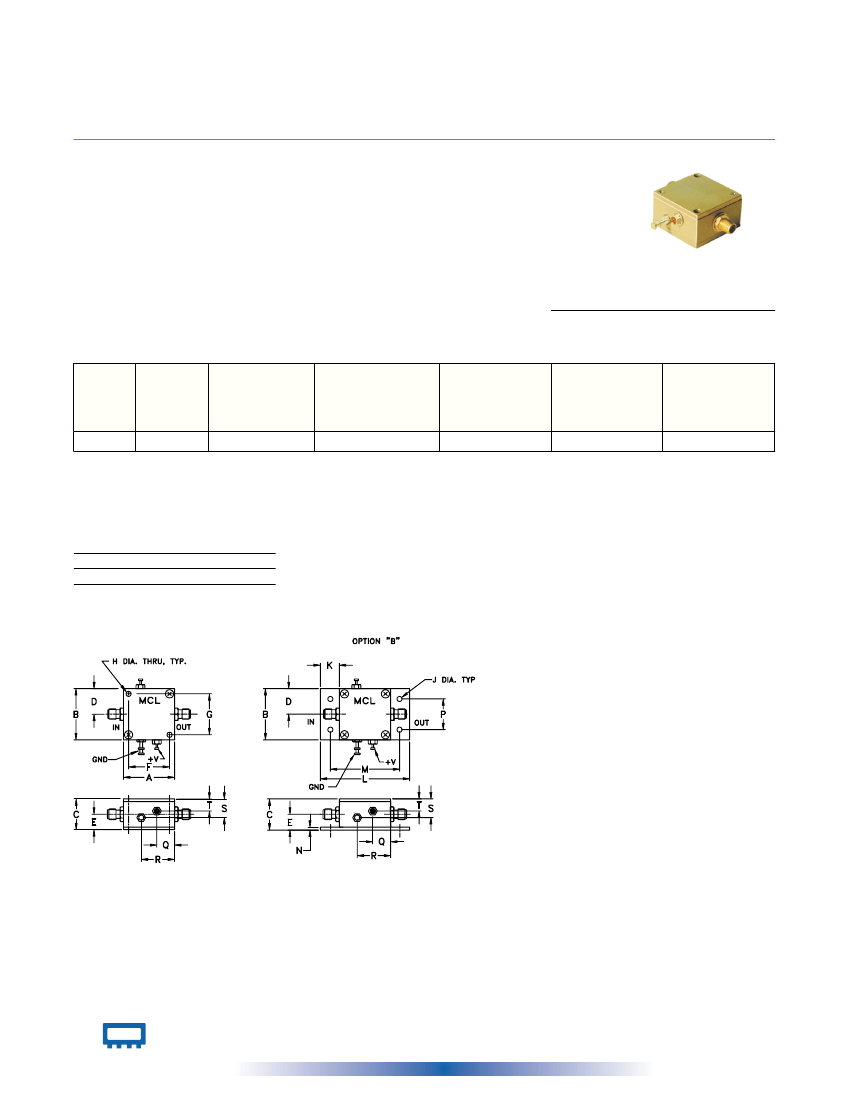

Outline Drawing
Outline Dimensions (
inch
)
mm
A
B
C
D
1.25
1.25
.75
.63
31.75 31.75 19.05 16.00
L
M
2.18 1.688
55.37 42.88
E
F
.36 1.000
9.14 25.40
G
1.000
25.40
S
.45
11.43
H
.125
3.18
S
.29
7.37
J
K
.125
.46
3.18 11.68
wt.
grams
38
N
P
Q
R
.06
.750
.50
.80
1.52 19.05 12.70 20.32
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. A
M104593
ZFL-1000
060504
Page 1 of 2
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
ISO 9001 & ISO 14001
Certified
Typical Performance Data/Curves
FREQUENCY
(MHz)
GAIN
(dB)
DIRECTIVITY
(dB)
VSWR
(:1)
15V
IN
1.26
1.10
1.09
1.09
1.08
1.13
1.18
1.23
1.28
1.29
ZFL-1000
NOISE
FIGURE
(dB)
15V
—
—
—
6.15
6.21
6.20
6.13
6.04
6.29
6.09
POUT at
1 dB COMPR.
(dBm)
15V
10.39
10.43
10.53
10.50
9.78
9.75
9.45
9.11
8.60
7.99
12V
0.10
0.70
7.90
95.70
384.70
487.20
615.40
743.60
871.80
1000.00
16.48
16.72
16.79
16.86
17.14
17.01
17.06
17.50
17.43
17.19
15V
18.08
18.38
18.40
18.38
18.26
18.18
18.20
18.62
18.52
18.25
16V
18.31
18.60
18.64
18.60
18.45
18.37
18.38
18.85
18.70
18.44
12V
25.10
24.60
24.40
24.10
22.80
23.30
22.30
23.90
21.20
20.00
15V
23.90
23.30
23.30
23.10
22.50
22.50
20.00
22.50
20.00
20.40
16V
23.80
23.10
23.10
23.00
23.00
22.80
23.20
21.20
19.30
20.10
OUT
1.17
1.12
1.13
1.13
1.19
1.28
1.42
1.62
1.85
2.08
ZFL-1000
GAIN
25
12V
23
GAIN (dB)
21
19
17
15
0
200
400
600
FREQUENCY (MHz)
800
1000
15V
16V
DIRECTIVITY (dB)
31
27
23
19
15
0
200
35
ZFL-1000
DIRECTIVITY
3.0
12V
15V
16V
2.5
VSWR
2.0
1.5
1.0
400
600
800
1000
0
200
ZFL-1000
VSWR
IN
OUT
400
600
800
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
ZFL-1000
OUTPUT POWER AT 1-dB COMPRESSION
11.0
OUTPUT POWER (dBm)
10.2
9.4
8.6
7.8
7.0
0
200
400
600
FREQUENCY (MHz)
800
1000
NOISE FIGURE (dB)
7.0
6.5
6.0
5.5
5.0
90
272
ZFL-1000
NOISE FIGURE
454
636
FREQUENCY (MHz)
818
1000
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
ISO 9001 & ISO 14001
Certified
Page 2 of 2
