ZAPD-2-21-3W-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZAPD-2-21-3W-S

ZAPD-2-21-3W-S: DescriptionCombiner, 700MHz Min, 2100MHz Max, 1.2dB Insertion Loss-Max, CASE F53; CategoryWireless rf/communication Radio frequency and microwave; File Size73KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZAPD-2-21-3W-S Overview

Combiner, 700MHz Min, 2100MHz Max, 1.2dB Insertion Loss-Max, CASE F53

ZAPD-2-21-3W-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	1.2 dB
JESD-609 code	e0
Maximum operating frequency	2100 MHz
Minimum operating frequency	700 MHz
Maximum operating temperature	90 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.36

Preview

Download Datasheet

View All

Coaxial

High Power Combiner

2 Way-0° 50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

-55°C to 90°C

-55°C to 100°C

ZAPD-2-21-3W

700 to 2100 MHz

Features

•

wideband, 700-2100 MHz

low insertion loss, 0.4 dB typ.

good isolation, 25 dB typ.

good amplitude unbalance, 0.05 dB typ.

and phase unbalance, 0.7 deg. typ.

• UHF

• PCS

• cellular

SMA version shown

CASE STYLE: F53

Connectors

N-TYPE

SMA

Model

ZAPD-2-21-3W-N

ZAPD-2-21-3W-S

Price

$49.95

Qty.

(1-9)

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• LMDS

• VSAT

• GPS

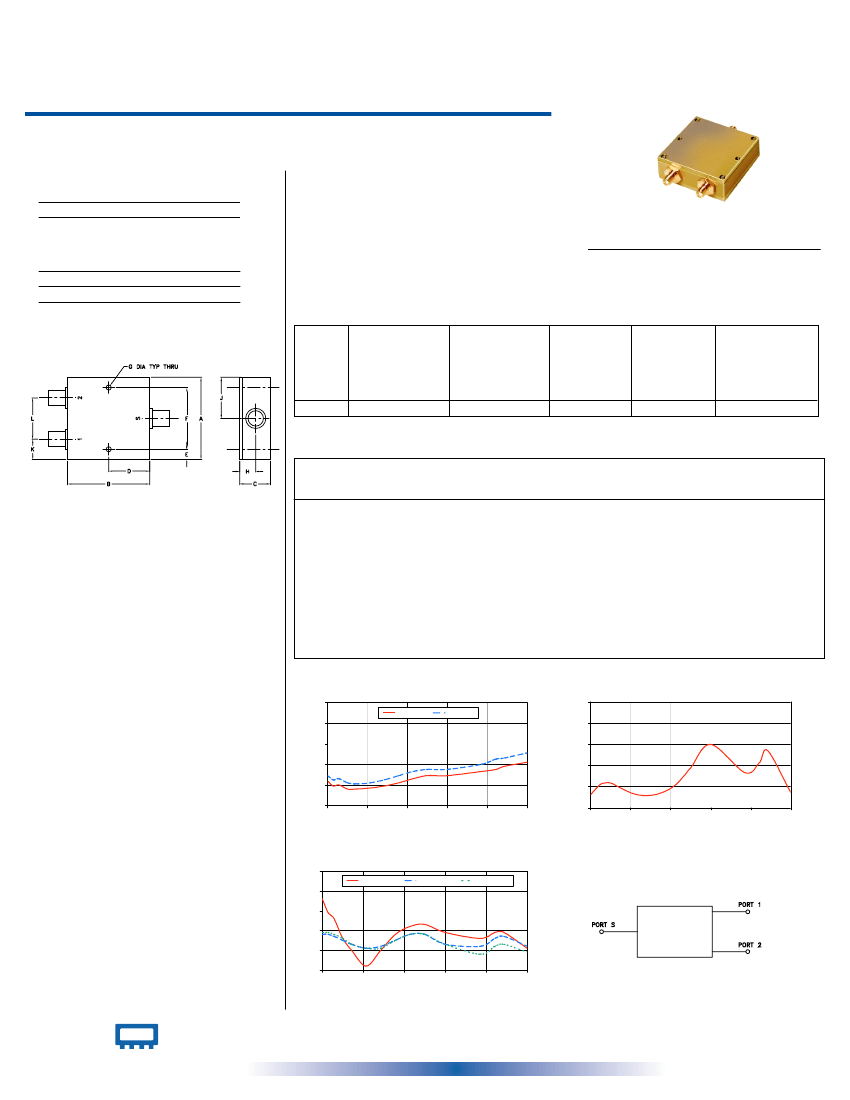

High Power Combiner Electrical Specifications

Outline Drawing

FREQ.

RANGE

(MHz)

-f

700-2100

ISOLATION

(dB)

INSERTION

LOSS (dB)

ABOVE 3.0 dB

Typ.

0.4

Max.

1.2

PHASE

UNBALANCE

(Degrees)

Typ.

0.7

Max.

3.0

AMPLITUDE

UNBALANCE

(dB)

Typ.

0.05

Max.

0.3

POWER

INPUT

(W)

combiner

Max.

2.5

splitter

Max.

Typ. Min.

1. Over -55°C to +55°C. Derate linearly to 20% of rating at 90°C

2. As a combiner of non-coherent signals, max. power per port is power rating divided by number of ports.

Typical Performance Data

Frequency

(MHz)

700.00

740.00

780.00

840.00

900.00

1000.00

1100.00

1200.00

1300.00

1400.00

1540.00

1780.00

1880.00

1940.00

2100.00

Insertion Loss

(dB)

S-1

S-2

3.24

3.19

3.20

3.16

3.17

3.19

3.22

3.26

3.29

3.33

3.35

3.38

3.42

3.29

3.25

3.26

3.22

3.21

3.22

3.25

3.29

3.33

3.35

3.40

3.45

3.46

3.51

Amplitude

Unbalance

(dB)

0.05

0.06

0.05

0.06

0.08

0.09

Isolation

(dB)

23.63

25.44

26.79

26.97

25.78

23.95

23.43

24.26

26.61

31.24

37.88

29.91

32.67

36.09

24.32

Phase

Unbalance

(deg.)

0.45

0.48

0.51

0.56

0.64

0.61

0.75

0.81

0.86

0.94

1.10

1.15

1.16

1.31

VSWR

1.36

1.29

1.26

1.16

1.10

1.02

1.10

1.18

1.22

1.23

1.19

1.16

1.19

1.11

VSWR

1.18

1.17

1.15

1.13

1.11

1.12

1.15

1.18

1.13

1.12

1.16

1.17

1.12

VSWR

1.19

1.18

1.16

1.13

1.11

1.15

1.18

1.13

1.08

1.12

1.13

1.09

Outline Dimensions (

inch

)

INSERTION LOSS (dB)

ZAPD-2-21-3W

INSERTION LOSS

ZAPD-2-21-3W

ISOLATION

.39

9.91

1.00

25.40

.50

12.70

1.00

25.40

grams

170.0

3.6

3.4

3.2

3.0

700

ISOLATION (dB)

980

1260

1540

1820

2100

2.00

50.80

2.00

50.80

.75

19.05

1.00

25.40

.13

3.30

1.750

44.45

.125

3.18

4.0

S-1(dB)

3.8

S-2(dB)

700

980

1260

1540

1820

2100

FREQUENCY (MHz)

ZAPD-2-21-3W

VSWR

1.5

#S-VSWR

1.4

VSWR

1.3

1.2

1.1

1.0

700

#1-VSWR

#2-VSWR

FREQUENCY (MHz)

electrical schematic

980

1260

1540

1820

2100

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M94385

ED-5741C/1

ZAPD-2-21-3W

HY/TD/CP

060105
