PE91050 Overview

Precision SMA Female to SMP Male Adapter Limited Detent

Precision SMA Female to SMP Male Adapter Limited Detent
TECHNICAL DATA SHEET
Precision SMA Female to SMP Male Adapter Limited Detent
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Female
50 Ohms
MIL-STD-348
SMP Male
50 Ohms
MIL-STD-348
Precision
Straight
PE91050
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 26.5
1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C

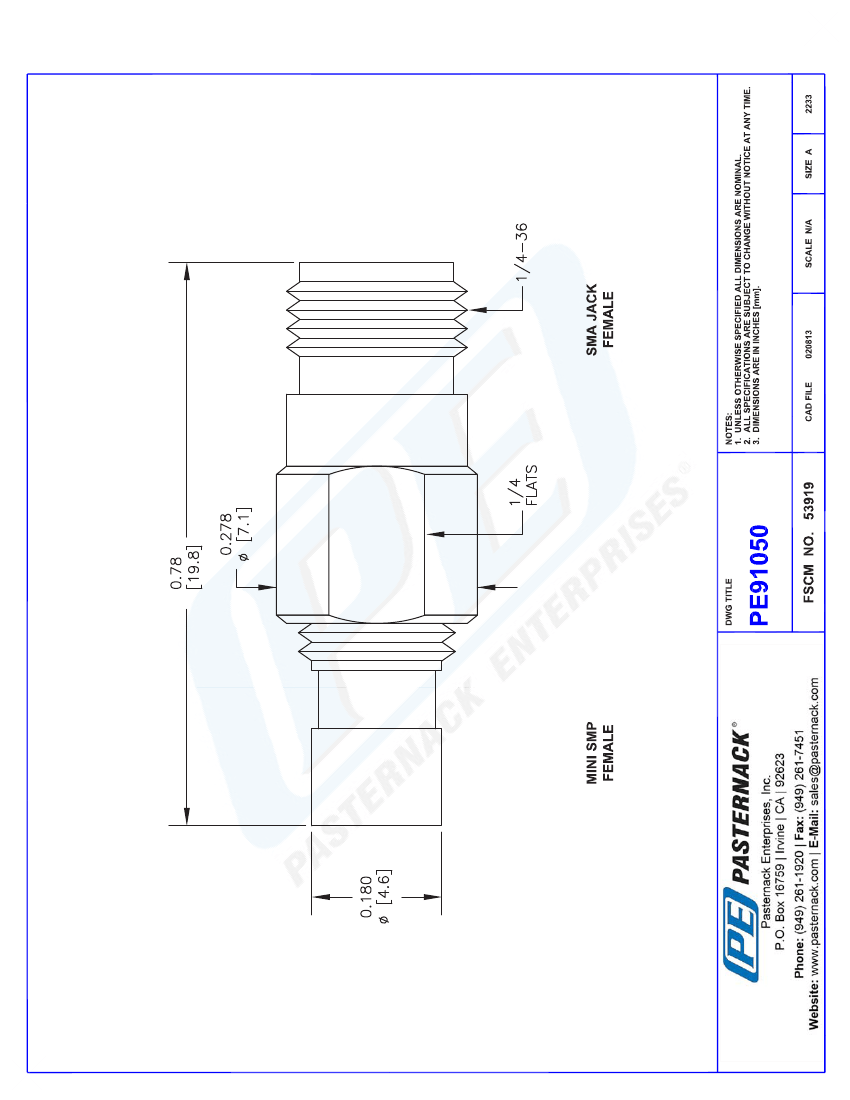

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +125
0.78 [19.81]
0.278 [7.06]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Female
500
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
SMP Male
500
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Female to SMP Male Adapter Limited Detent PE91050
PE91050 REV
1
