M4DL-ACT-30 datasheet, PDF - EEWORLD Datasheet

M4DL-ACT-30: DescriptionActive Delay Line, 4-Func, 1-Tap, True Output, CMOS, 0.300 INCH HEIGHT, DIP-16/12; Categorylogic logic; File Size531KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

M4DL-ACT-30 Overview

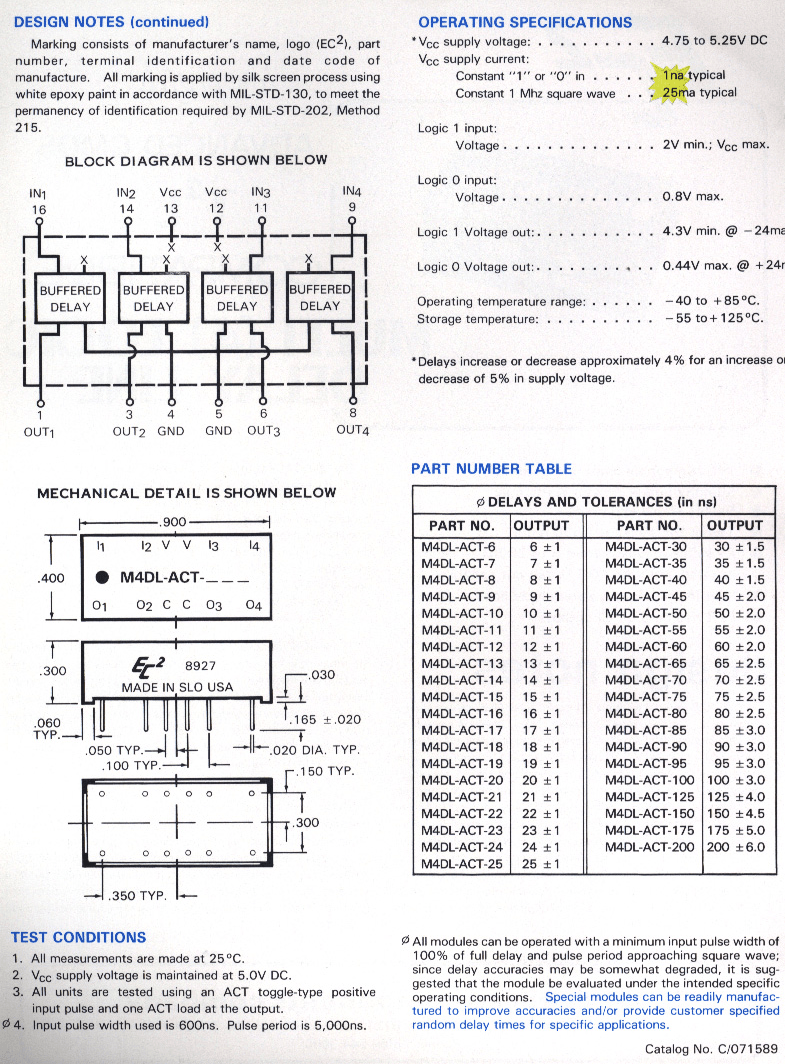

Active Delay Line, 4-Func, 1-Tap, True Output, CMOS, 0.300 INCH HEIGHT, DIP-16/12

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	QIP, DIP16,.3
Contacts	16/12
Reach Compliance Code	unknown
Other features	MAX FAN OUT OF 10 TTL LOAD PER OUTPUT; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	ACT
JESD-30 code	R-XDIP-P12
JESD-609 code	e0
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	4
Number of taps/steps	1
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	30 ns
Certification status	Not Qualified
Maximum seat height	7.62 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	30 ns
width	7.62 mm
