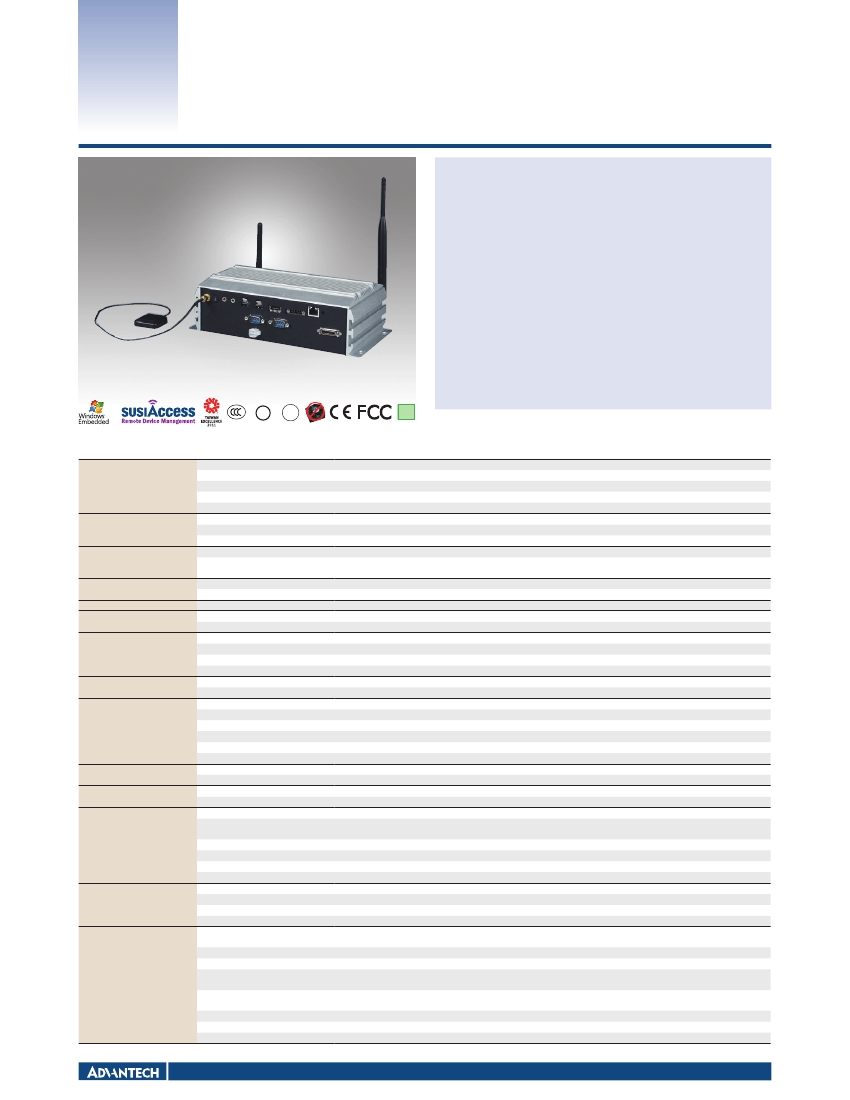

ARK-VH200

High Performance Intel

Atom™ Fanless

Mobile DVR Solution

Features

Intel

Atom™ D510 processor at 1.66 GHz

120/100 FPS D1 resolution video recorders

Optional add-on Mini PCIe card for wireless applications, e.g. WLAN or 3.5G

module

eSATA for large capacity external HDD

In-vehicle power design and IGN support, compliant with ISO-7637-2

4 x USB 2.0 ports (2 x USB ports are lockable for secure connection)

Compliant with EN50155 for rail transportation applications

Supports SUSIAccess and Embedded Software APIs

IP40 rating

LISTED

RoHS

COMPLIANT

2002/95/EC

E180881

Specifications

Processor System

CPU

Max. speed

System Chipset

Front Side Bus

BIOS

Technology

Max. Capacity

Socket

Chipset

Interface

LAN 1

LAN 2

Interface

Serial Interface

USB Interface

Digital I/O

GPS

eSATA

Watchdog timer

Mini PCIe

SIM Socket

Video Compression

Video Input

Audio Input

Video Format

Video Frame

SDK Support

HDD

SSD

Microsoft Windows

Linux

Power Type

Power Input Voltage

Power Requirement

Ignition

PIC Firmware

Minimum Power Inputs

Power Adapter

Construction

Mounting

Dimensions (W x H x D)

Weight

Operating Temperature

Storage Temperature

Relative Humidity

Environment

Vibration Loading During Operation

Shock During Operation

EMC

Safety Certifications

In-Vehicle Certification

Intel Atom Dual Core D510

1.66 GHz

Intel ICH8-M

667 MHz

AMI 16 Mbit Flash BIOS

DDR2 667 MHz

2 GB

1 x 200-pin SO-DIMM

Embedded Gen 3.5G+GFX Core, Intel Gen 3.5 DX9, MPEG2 Decode in HW

CRT Interface

18-bit LVDS interface

10/100/1000 Mbps Ethernet controller, support Wake On LAN

Line-out, Mic-in

2 x RS-232 port, 1 x RS-232/422/485 (Optional)

4 x USB ports, Compliant with USB 2.0 (2 x USB ports are lockable)

Supports up to 4-bit DIO

On-board GPS

1 x eSATA

255-level timer interval, setup by software

2 x Mini PCIe

1 x SIM Socket

H/W H.264

4 x Ch Video Inputs, BNC

4 x Ch Audio Inputs (Optional)

CIF, 2CIF, D1 (720 x 480)

Total 120/100 FPS (NTSC/PAL) @ D1 resolution

VC++, .NET/BCB/VB

Supports drive bay space for 1 x SATA 2.5" HDD (9.5 mm height only)

Supports CompactFlash socket for type I/II CompactFlash disk

WES2009, WES7

Fedora 9.0

AT/ATX

PC Mode: 9 V

~ 32 V

VH Mode: 12 V battery (11 V

~ 16 V

), 24V battery (22 V

~ 32 V

)

Supports ignition function

Battery status check, and Off-delay support

36W

AC to DC, DC19V/3.42A, 65W (Optional)

Aluminum housing

Desk/wall-mounting

260 mm x 77 mm x 134 mm

3 kg (6.6 lb)

With extend temperature peripherals CompactFlash disk: -20 ~ 60° C (-4 ~ 140° F)

With extend temperature peripherals 2.5-inch hard disk 0 to 45° C (32 ~ 113° F) , with air flow

-40 ~ 85° C (-40 ~ 185° F)

95% @ 40° C (non-condensing)

With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.

With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.

With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration

With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration

CE/FCC Class A

CE/FCC, CCC, UL/cUL

EN50155, E-Mark E13

Memory

Graphics

Ethernet

Audio

IO interface

Other

Expansion

Video Recording

Storage

Software Support

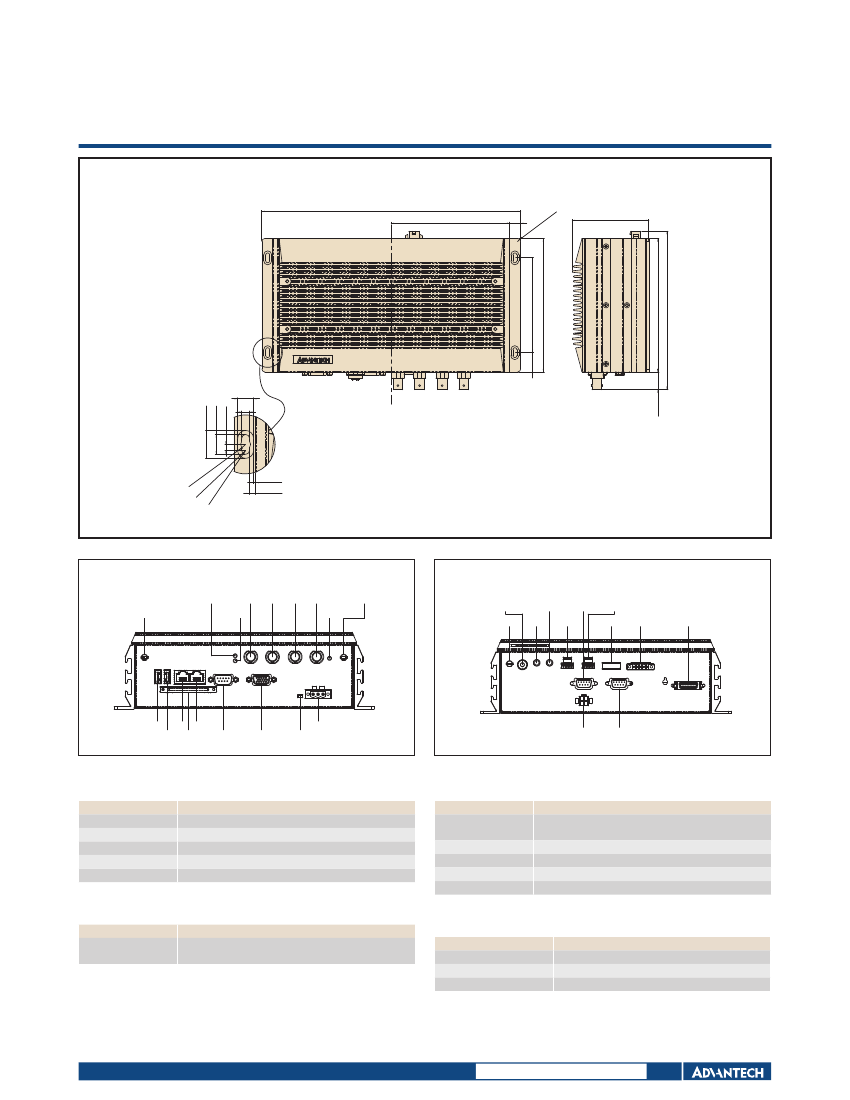

Mechanical

Embedded Vehicle Box

All product specifications are subject to change without notice

Last updated : 25-Jan-2013
