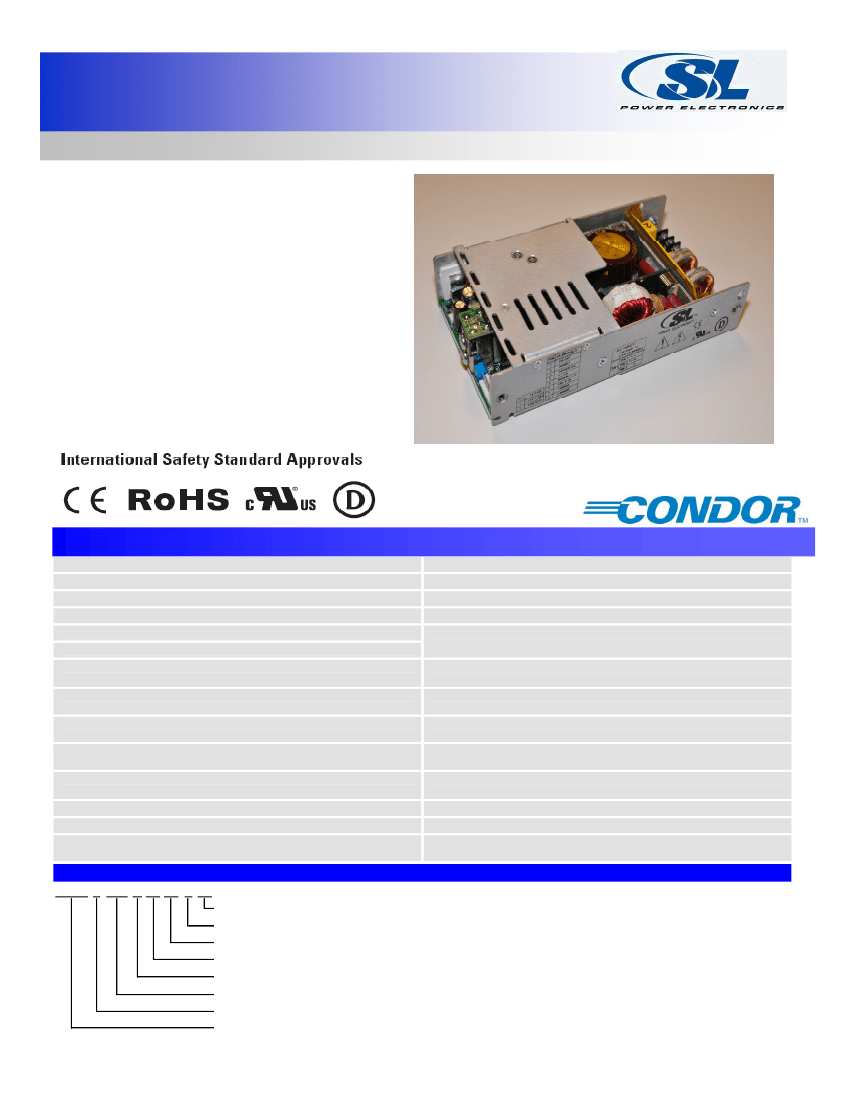

MINT1400A
400W Single Output Series
Medical – Universal Input Power Supply
•
Compact 3.94” x 7” x 1.58”, 1U compatible
•
9.5 W/in³
•
300W Convection Rating
•
Efficiency up to 91%
•
12Vdc to 48Vdc outputs, up to 400W
•
Remote ON/OFF by PS-ON Signal
•
Safety approved to Medical and ITE Standards
•
EN/IEC/UL60601-1 and CSA 601.1
•
CSA/EN/IEC/UL60950-1, 2
nd
Edition
•
Compliant to EN55011/22 Conducted Noise,
2 Year Warranty
Class B
•
RoHS Compliant – Category 6
Specifications
AC Input
Input Current Input
Inrush Current Input
Input Fuses
Power Factor
Efficiency
Remote Sense
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
80-270VAC, 47-63 Hz single phase. (See Note 1)
120VAC: 4.2A, 230VAC: 2.1A
Active circuit, 37A max
F1, F2: 6.3A
0.99 typical, 0.96 minimum
Typical 88% @ 120VAC, 91% @ 240VAC
Turn On Time
Hold-up Time
Overvoltage Protection
Overload Protection
500mSec maximum
20 ms at 400W
See chart
Cycling type, 470W typical
Overtemperature Protection
Provided on all models, auto-
recovery. See page 2 for cooling information
Switching Frequency
Safety Standards
Isolation
Earth Leakage Current
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Output: 170kHz
±
8kHz;
PFC: 90kHz,
±
8kHz; Bias: 100kHz,
±
6 kHz
Medical: EN/IEC/UL 60601-1, CSA 601.1
ITE: CSA/EN/IEC/UL 60950-1, 2nd Edition
Input-Output: 4000VAC,
Input-Ground: 1500VAC, Output-Ground
100µA at 120VAC, 60Hz Normal.
400µA at 264Vac, 60Hz SFC.
0° to 70°C, refer to derating
curve for ratings >40°C
-40 to +85°C
5% to 95%, non-condensing
Operating: -500 to 10,000 ft.
Non-Operating: -500 to 40,000 ft.
Compensates for up to 500mV
drop on output leads
Output Power
400W with fan cooling. See derating chart for other
conditions. Peak: 450W for 1 min., 10% duty cycle
Ripple and Noise
1% pk-pk max., 20MHz BW, differential mode
Output Voltages
Total Regulation
Minimum Load
Transient Response
Shock and Vibration
See chart. Voltages adjustable +/- 5%
See chart
Not required
500µs to 1%, 0.2A/µs, 3.5% Deviation
Shock:
MIL-STD-810E, 516.4 part IV
Vibration: 5Hz – 500Hz, 2.5 Grms
Model Number Key
MINT 1 400 A 12 10 L 01
01 = Standard Model, 02 and higher indicates a m odified m odel.
"L" = Input Connector - EBY P/N 5002-03-N-12
"10" = Output Connections - Bus Bars w ith #10 screw s
Output Voltage: "12" = 12V output, "24" = 24V output, etc.
Model Configuration: "A" = Original Configuration
Output Pow er (Watts) - "400" = 400W
# of Outputs
Product Fam ily: "M" = Medical, "I" = Internal, "NT" = New Technology
______________________________________________________________________________________________________________________________
1 of 3
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
MINT1400A
400W Single Output Series
Medical – Universal Input Power Supply
Output Parameters
Model
Number
MINT1400A1210L01
MINT1400A2410L01
MINT1400A2810L01
MINT1400A4810L01
Output
Volts (V)
12V
24V
28V
48V
Output Current
Fan Cooled
Convection
33.0A
16.7A
14.3A
8.30A
25.0A
12.5A
10.7A
6.30A
Ripple
& Noise
1%
1%
1%
1%
Total
Regulation
2%
2%
2%
2%
2 Year Warranty
Note 1: When the input voltage is <90Vac, derate output power to 300W fan cooled, or 250W convection.
Signals
Inhibit:
TTL LOW to inhibit
PS Off:
TTL HIGH to inhibit
Pwr OK
TTL HIGH when AC is OK, 100-200 mS delay.
Pwr OK
PF LOW 4 mS warning before loss of output regulation.
DC OK:
HIGH when output is >90% of nominal
Fan Output:
12Vdc @ 250 mA.
5V Standby Voltage:
Always on, up to 100mA.
EMI/EMC Compliance
Conducted Emissions
Radiated Emissions
Voltage Fluctuations
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
Line Frequency Harmonics
EN55011/22 Class B
EN55011/22 Class A
EN61000-3-3, complies
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz..
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11 criteria A @ 250 Watts or less.
EN61000-3-2, Class A

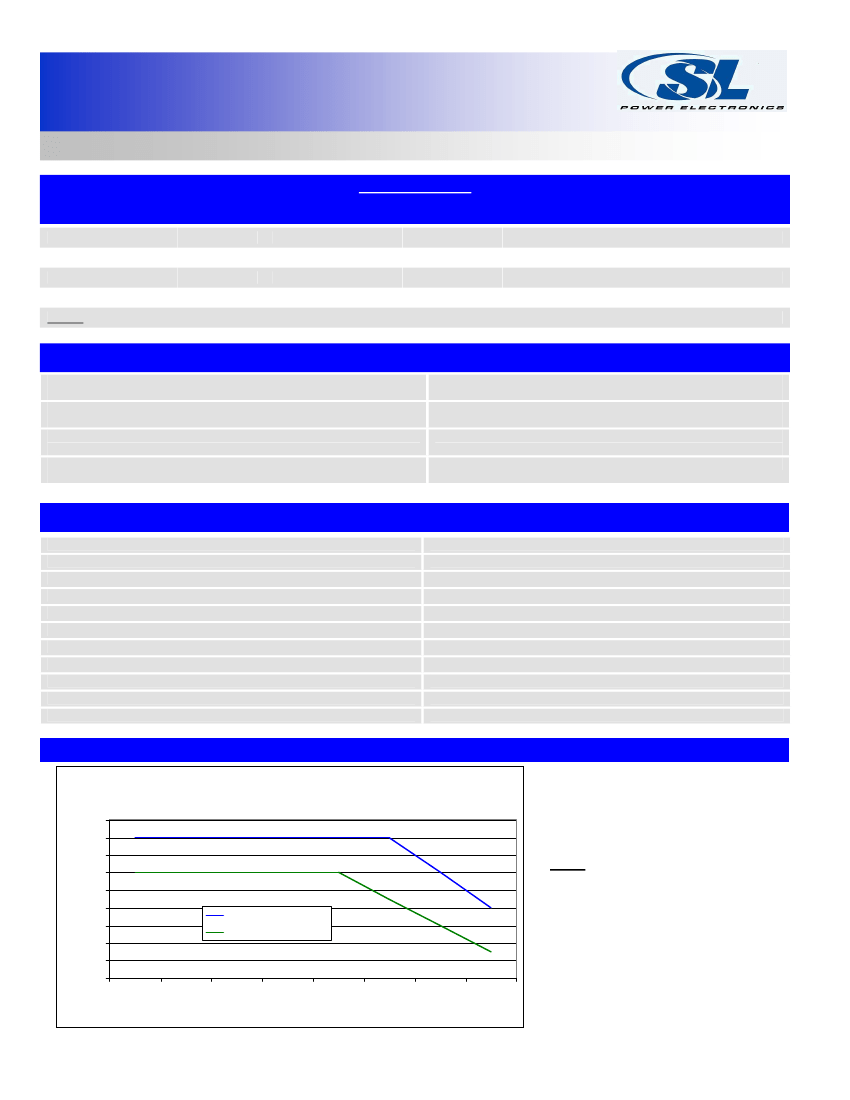

Output Power Derating Curve
MINT1400 Output Power Derating Chart
450
Output Power (Watts)
400
350
300
250
200
150
100
50
0
0
10
20
30
40
50
60
70
Ambient Temperature (deg C)
______________________________________________________________________________________________________________________________
2 of 3
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
External 200 lfm Fan
Convection
Note:
For convection cooling, the
power supply is required to be
mounted on a heatsink or system
chassis with a minimum of 150 in² of
surface area.
MINT1400A
400W Single Output Series
Medical – Universal Input Power Supply

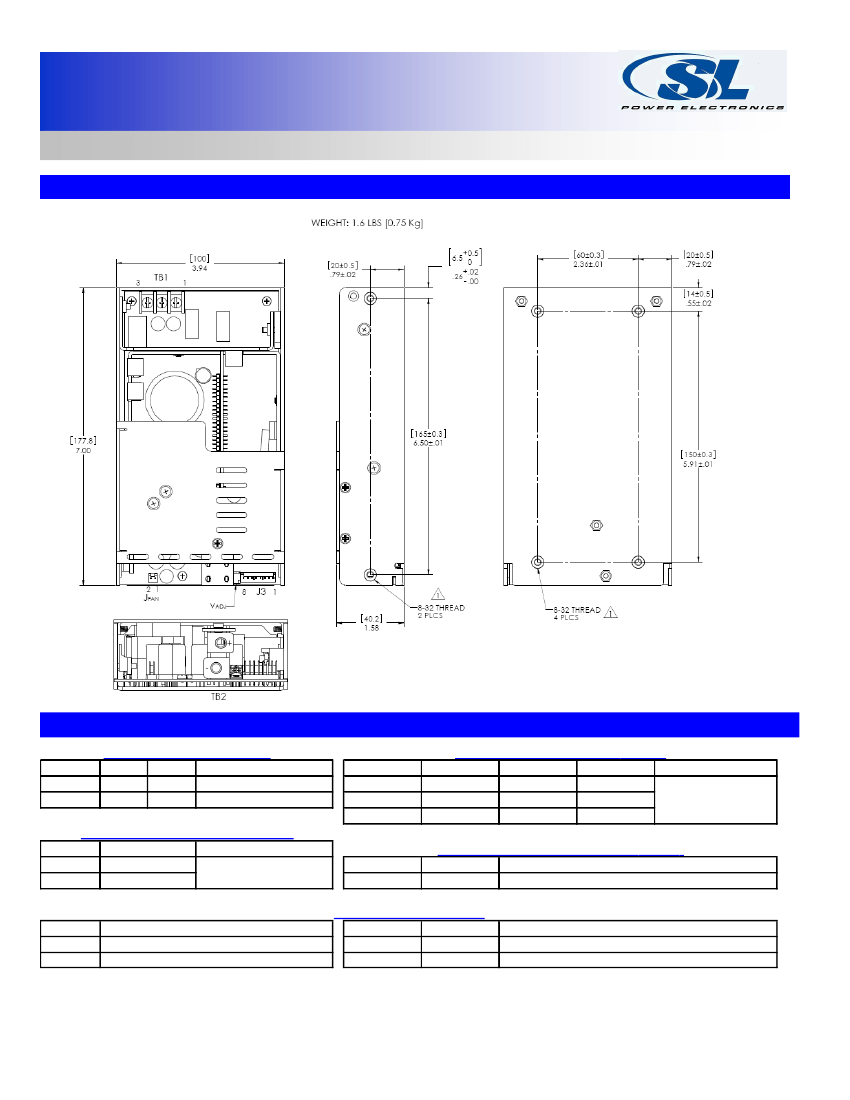

Outline Drawing & Connector Information
2 Year Warranty
Connector Information
INPUT CONNECTOR (TB1):
Pin 1
AC Line
Pin 2
Pin 3
Neutral Ground
Manufacturer's P/N:
EBY P/N 5002-03-N-12
Pin 1
PS OFF
Pin 5
RTN
SIGNAL CONNECTOR (J3)
(optional)
:
Pin 2
Pin 3
Pin 4
INHIBIT
PWR OK
DC OK
Pin 6
Pin 7
Pin 8
+5V Standby SENSE + SENSE
Manufacturer's P/N:
AMP P/N 640456-8
DC OUTPUT CONNECTORS (TB2):
Pin 1
+Vout
Pin 2
-Vout
Manufacturer's P/N:
Bus bars with
#10 screws
FAN OUTPUT CONNECTOR (J4)
(optional)
:
Pin 1
+12V @ .25A
Pin 2
RTN
Manufacturer's P/N:
AMP P/N 640456-2
MATING CONNECTORS:
Mate For:
J1
TB2
Manufacturer's P/N:
#6-32 Lug, 0.325 Center
Wire - sized for output current rating.
Options:
Signals
Fan Output
Mate For:
J3
J4
Manufacturer's P/N:
AMP P/N 1375820-8, Pins: 1375813-3
AMP P/N 1375820-2, Pins: 1375813-3
Data Sheet © 2011 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev.
3-12-2013
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
