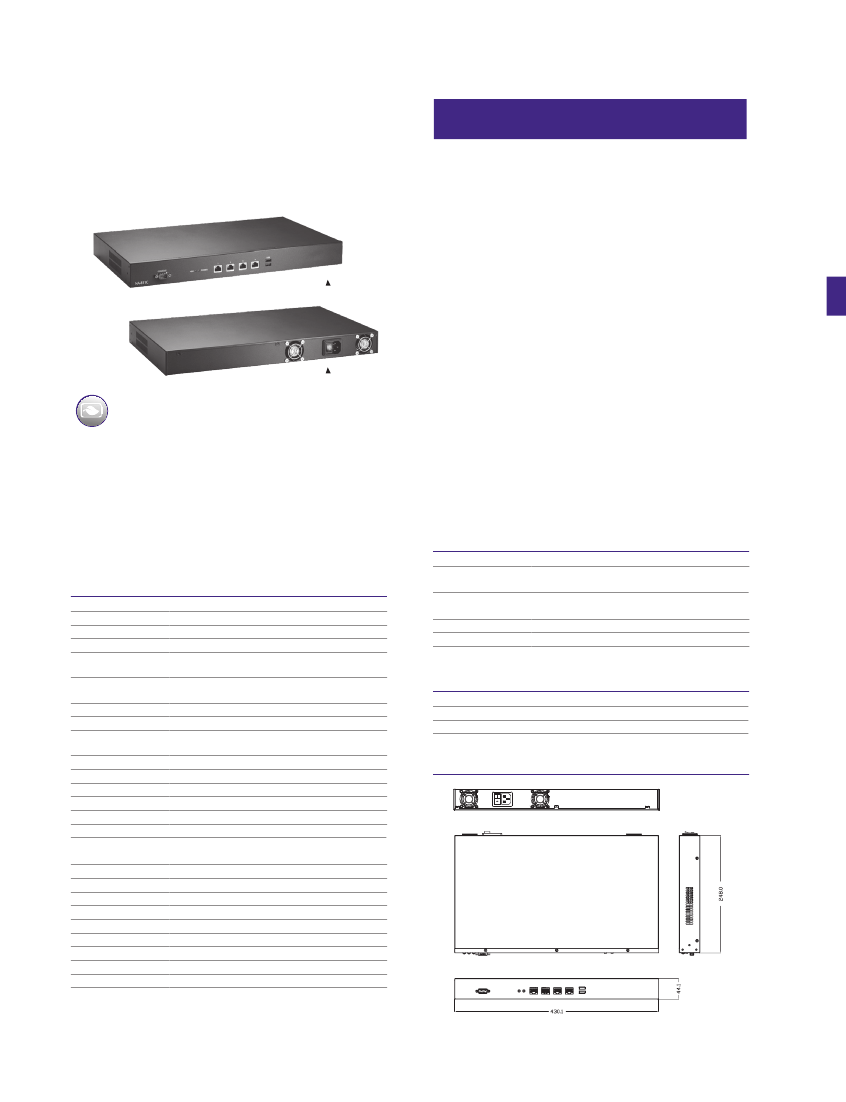

NA-811C
1U Rackmount Network Appliance Platform
with Socket 479 ULV Intel
®
Celeron
®
M/
Pentium
®
M Processor and 4 LANs
Features
●
Low power and high performance socket 479 Intel
Pentium
®
M processor
●
Supports four 10/100/1000Mbps Ethernet ports
(Intel
®
82573L)
●
Supports BIOS redirected to COM port features
●
Supports up to two 2.5" SATA HDD
●
High computing performance and throughput for processor
and LAN ports
●
Suitable for network appliance: VPN, network bandwidth
controller, firewall and UTM
®
Overview
SOHO Series
Front view
SMB Series
Accessories
Rear view
Low Power
Introduction
The NA-811C energy-saving 1U rackmountable network appliance platform is configured
with an ultra low power Intel
®
Celeron
®
M / Pentium
®
M processor with the Mobile Intel
915GME chipset, delivering exceptional performance with minimum power consumption.
The NA-811C supports two DDR2 SO-DIMM slots with 400/533 memory up to 2GB
capacity. Available with four Gigabit Ethernet ports thru PCIe interface with IP / UDP / TCP
checksum offloading and VLAN tag support, the platform deliveries high throughput. To
prevent problems from sudden shutdown, the NA-811C supports a LAN bypass function
through WDT and GPIO pin definitions. The NA-811C has space for two 2.5" SATA HDD or
one 3.5" SATA HDD up to Terabytes storage space for storing event log data.
Ordering Information
Standard
NA-811C-R4GI
High performance network appliance with socket 479 Intel
®
Pentium
®
M, 4 10/100/1000Mbps
Specifications
System
CPU
Chipset
Memory
BIOS
HDD Interface
Network Interface
SSD
I/O Interface
Watchdog Timer
USB
Expansion Slot
Other Features
Power Supply
OS Compatibility
Socket 479 for Intel
®
Pentium
®
M processor
Intel
®
915GME and Intel
®
ICH6M
2 x DDR2 400/533 SO-DIMM max. up to 2 GB
Award 4Mbit PnP Flash BIOS with function of BIOS
redirected to COM port
Up to 2 x 2.5 SATA HDD (default) or 1 x 3.5" SATA HDD
(optional)
4 x 10/100/1000Mbps Ethernet (Intel
®
82573L)
Supports DiskOnModule
1 x RS-232 (DB9 connector), 2 x USB connector, 4 x RJ-45
connector, 1 x AC power inlet
255 stepping for porting
2 x USB 2.0 port on rear side, rest are internal pin headers
1 x 32bit/33MHz MiniPCI slot
LAN bypass function through WDT and GPIO pin control
Open frame 84W power
Redhat Linux Kernel 2.4 and 2.6
Optional
CK9A100
Cable kit (P/N: 88080000640E)
* Specifications and certifications are based on options and may vary.
** Recommend ordering optional cable kit with first order.
Packing List
1 x SATA cable
1 x utility CD (user's manual and driver)
1 x power cord
Dimensions
Mechanical/ Environmental
Form Factor
1U 19" rackmount
LED
Power, HDD, Link/Act with transfer rate
Operating Temp.
0° ~ +45°C (32°F ~ 113°F)
Storage Temp.
-20°C ~ +70°C (-4°F ~ +158°F)
Humidity
10% ~ 95% RH, non-condensing
Chassis Material
Steel
Dimensions
44 mm (1.73") (H) x 430 mm (16.93") (W) x 248 mm (9.76") (D)
Weight (net/gross)
7 kg (15.43lb)/8 kg(17.64lb)
Certification
FCC class A
* All specifications and photos are subject to change without notice.
© 2013 Axiomtek Co., Ltd. All rights reserved.
