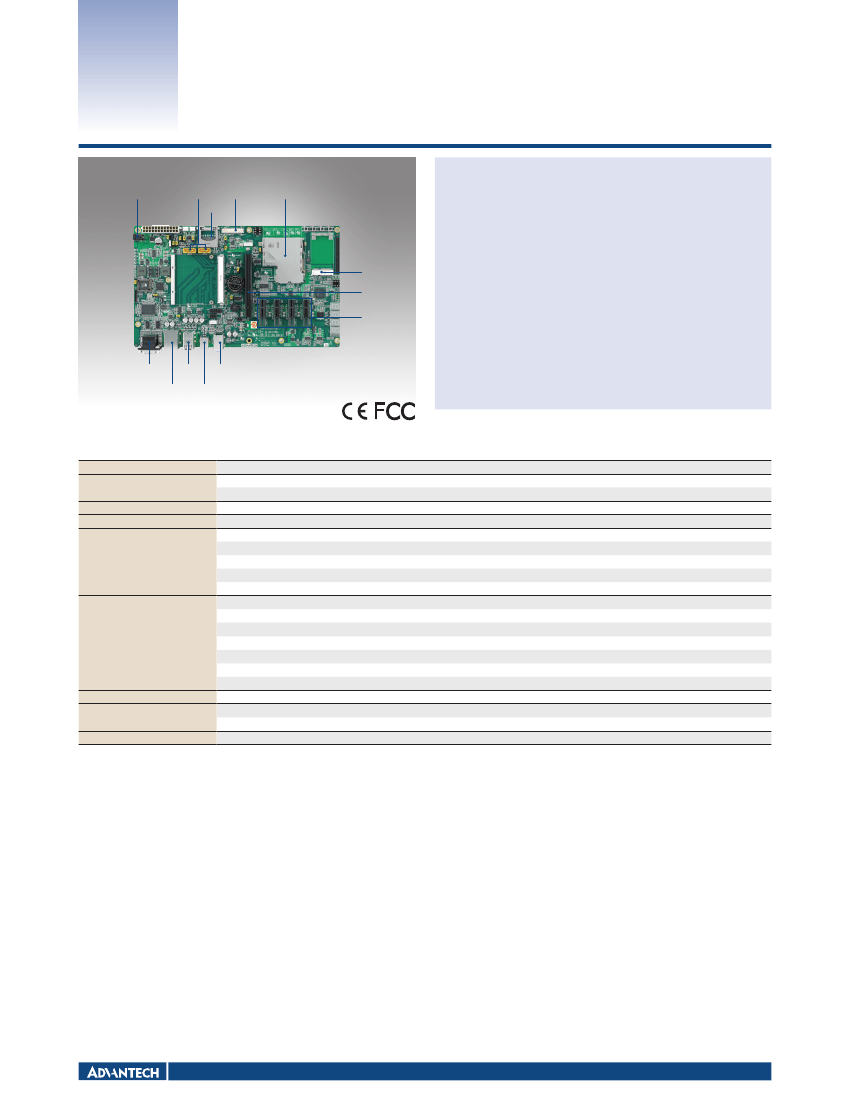

SOM-DB3500
12 V Power input
SATA
SD Card
LVDS
Express Card
Qseven Development Board
Features
Supports Qseven CPU Module
Supports 24-bit LVDS TFT Panel
Supports 1 PCIe x16 slot for SDVO, 4 PCIe x1 slot
Supports 2 SATA, 2 COMs, 1 RJ-45, 6 USB 2.0 (with 1 USB client)
Mini PCIe
SDVO
PCIe x 1
HD Audio Codec
COM 2
COM 1
LAN
USB
USB
HD Audio
USB Client
Specifications
Compatible Modules
Display
Ethernet
Audio
SDVO
LCD
Chipset
SDVO Slot
PCIe x 1 slot
Express Card Socket
SD/MMC
Mini PCIe
USB
USB Client
COM
SATA
KB/MS
System FAN
I2C
Power Type
Operation
Operating Humidity
Dimensions
Advantech Qseven CPU Module Series (70 x 70 mm)
Supports one SDVO through PCIe x16 slot
24-bit LVDS
1 x Giga LAN
High Definition Audio
1
4
1
1
1
6 USB 2.0 (one is alternating with USB client)
1 (alternating with USB1)
2 COM ports
2
1
2
1
ATX/AT modes
0 ~ 60° C (32 ~ 140° F)
0% ~ 90% relative humidity, non-condensing
293 x 172 mm (11.5" x 6.75")
Expansion
I/O
Power
Environment
Physical Characteristics
Computer On Modules
All product specifications are subject to change without notice
Last updated : 22-Feb-2013
SOM-DB3500
Block Diagram
SD/MMC
USB Client
SDIO 4/8bit
USB2.0 x 6
USB2.0
LPC
Super I/O
W83627HG
PS2 KB / MS
COM1 RS-232
GLAN
Qseven
LVDS
AC Link
Second BIOS
COM2 RS-232
HD Audio
Codec ALC 888
SATA x 2
PCIe X16 DDI
DDI
PCIe x1
2 PCIe X1 Slot 1, 2, 3
PCIe Switch
PEX8505-AA25BIG
SOM-EA20
USB 2.0
PCIe X1 Slot 4
HDMI/DP
Mini PCIe Card
Express Card
Ordering Information
Part No.
SOMDB3500G01A1E-ES
Description
Development board for Qseven CPU Module series
Packing List
Part No.
-
SOM-EA20
Description
SOM-DB3500 development board
HDMI/DDI DisplayPort Riser card
Quantity
1
1
