Bulkhead SMA Female to BNC Female Adapter
TECHNICAL DATA SHEET
Bulkhead SMA Female to BNC Female Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Adapter Design
Body Style
Mount Method
SMA Female
MIL-STD-348
BNC Female
Standard
Straight
Bulkhead
PE9407
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
335
1,000
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.32 [33.53]
0.595 [15.11]
PTFE
SMA Female
Beryllium Copper, Gold
Brass, Nickel
BNC Female
Beryllium Copper, Gold
Brass, Nickel
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

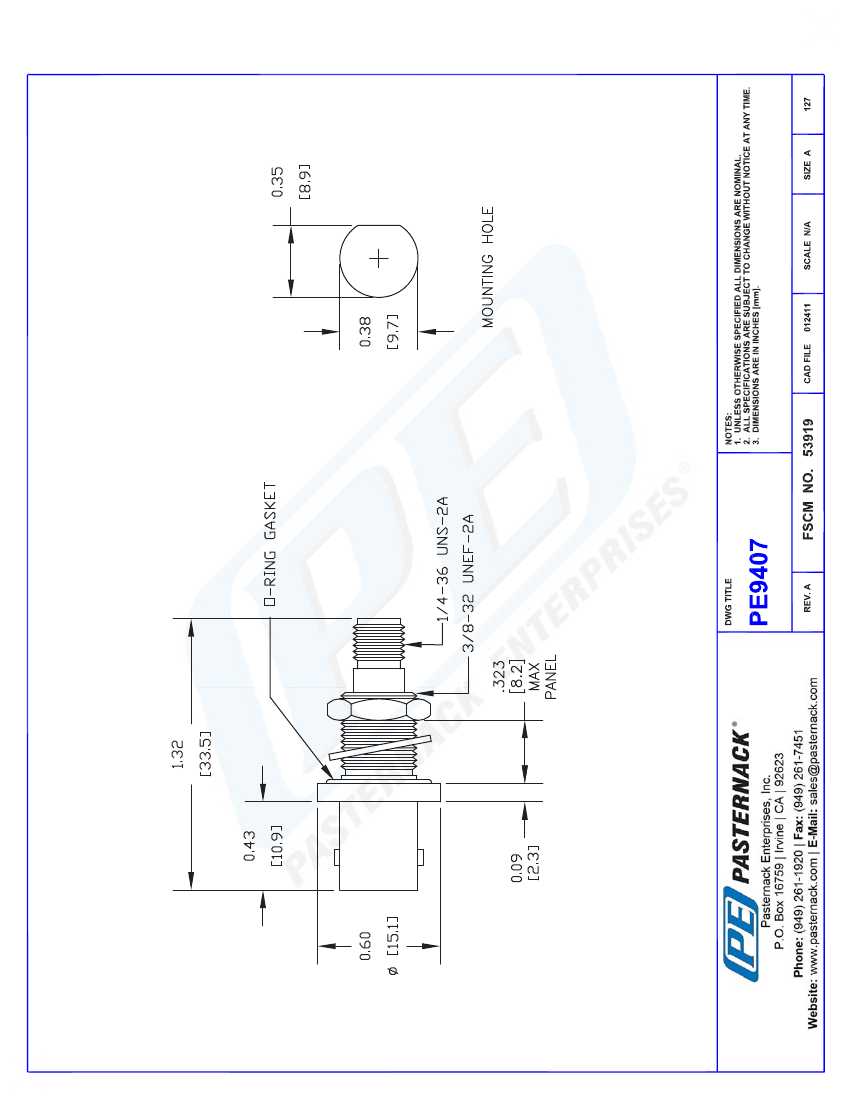

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-bnc-female-straight-adapter-pe9407-p.aspx
Bulkhead SMA Female to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9407 REV
1
