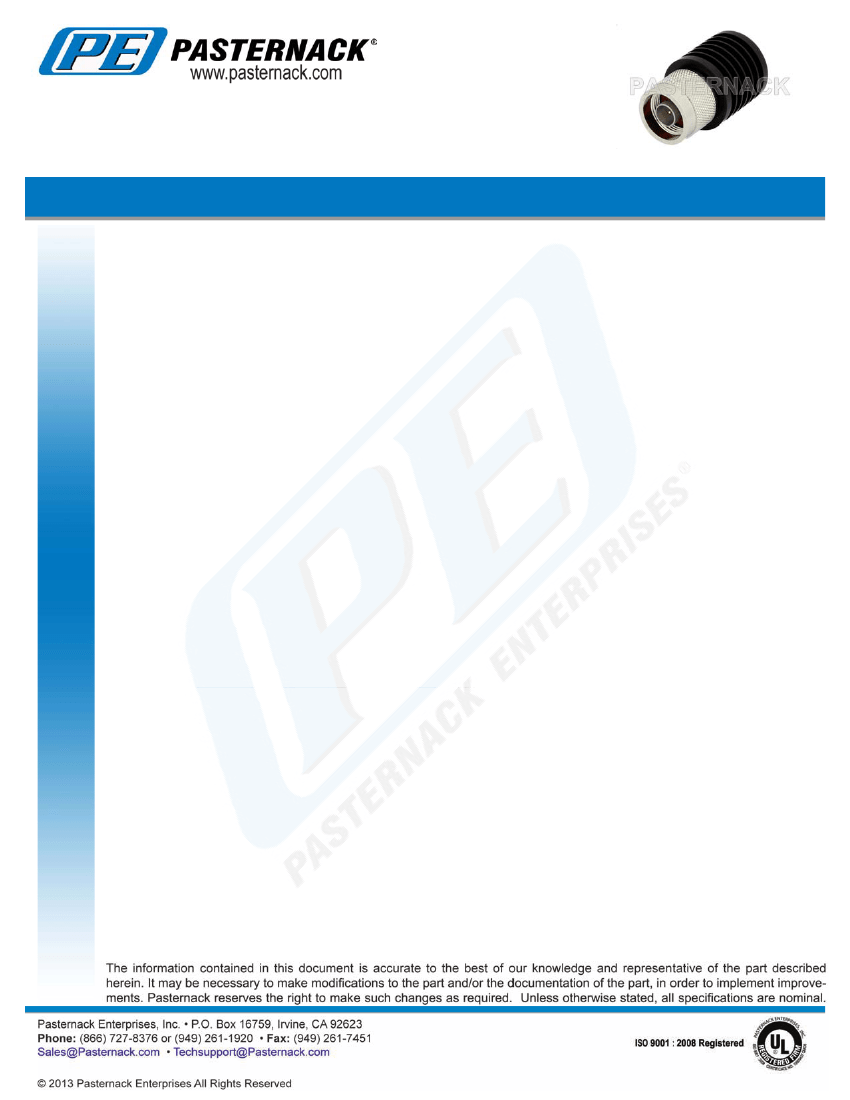

50 Ohm 10 Watts Brass N Male RF Load Up To 18 GHz
TECHNICAL DATA SHEET
50 Ohm 10 Watts Brass N Male RF Load Up To 18 GHz
Configuration
Connector
Body Style
N Male
Straight
PE6035
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
DC to 18
50
1.4:1
10
Mechanical Specifications
Temperature
Operating Range, deg C

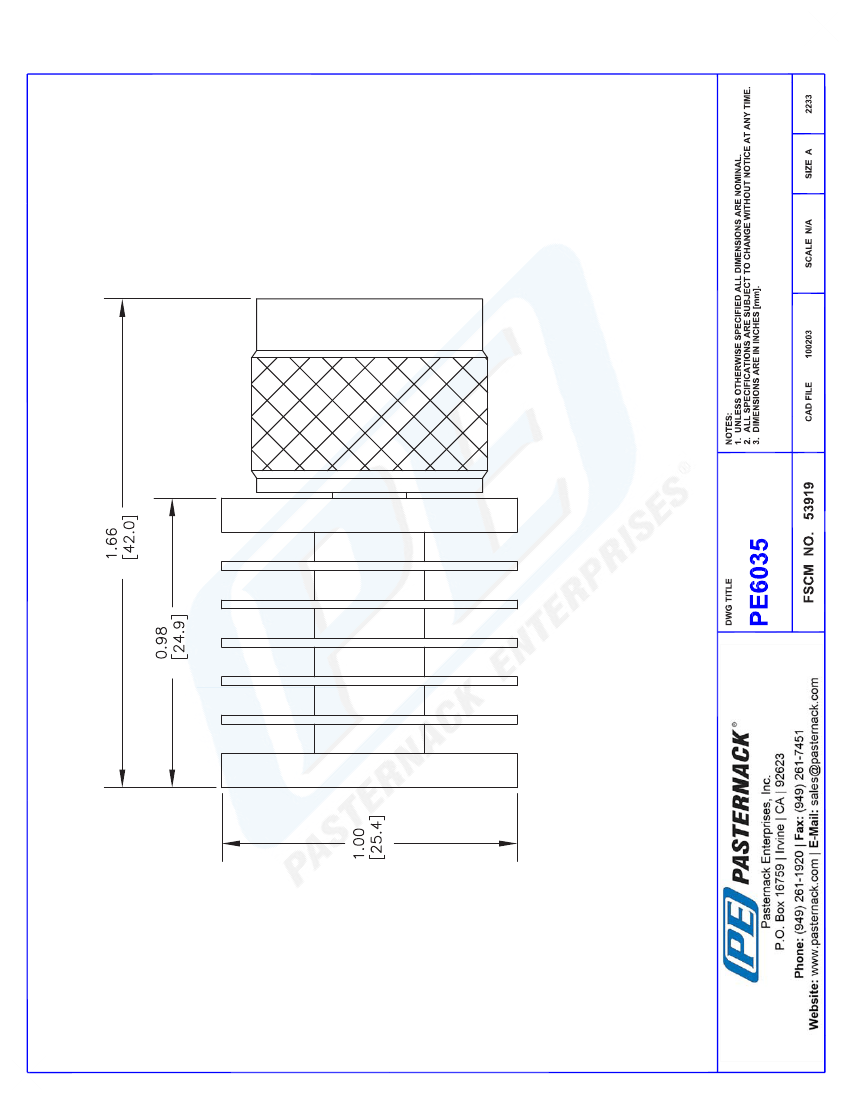

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +125
1.64 [41.66]
1 [25.4]
0.11 [49.9]
Weight, lbs [g]
Connector
Type
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
N Male
Beryllium Copper, Gold
Brass, Nickel
Aluminum Heatsink, Black Oxide
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/10-watts-n-male-rf-load-up-to-18-ghz-pe6035-p.aspx
50 Ohm 10 Watts Brass N Male RF Load Up To 18 GHz from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE6035 REV
1
