NJU6375BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NJU6375BE

NJU6375BE: DescriptionClock Generator, 50MHz, CMOS, PDSO8, EMP-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size279KB，7 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU6375BE Overview

Clock Generator, 50MHz, CMOS, PDSO8, EMP-8

NJU6375BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	50 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	50 MHz
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

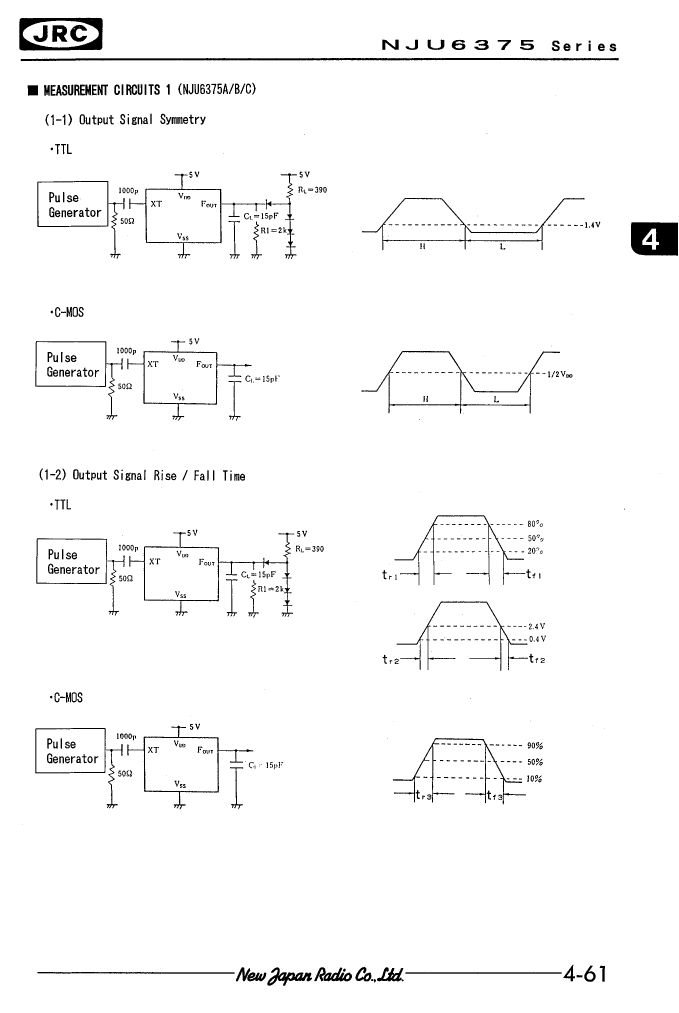

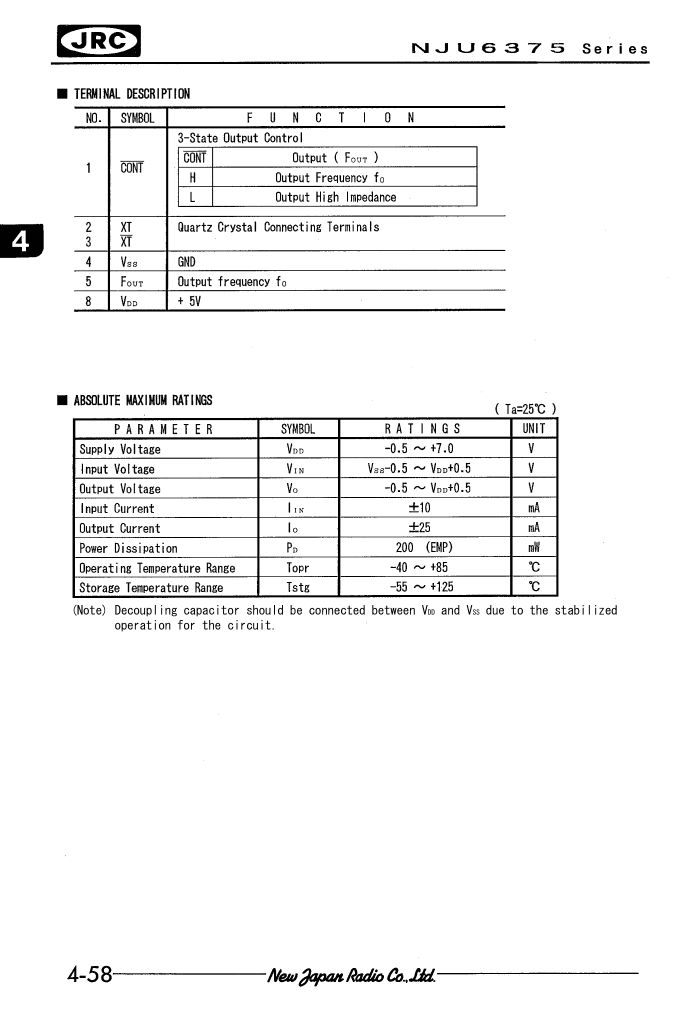

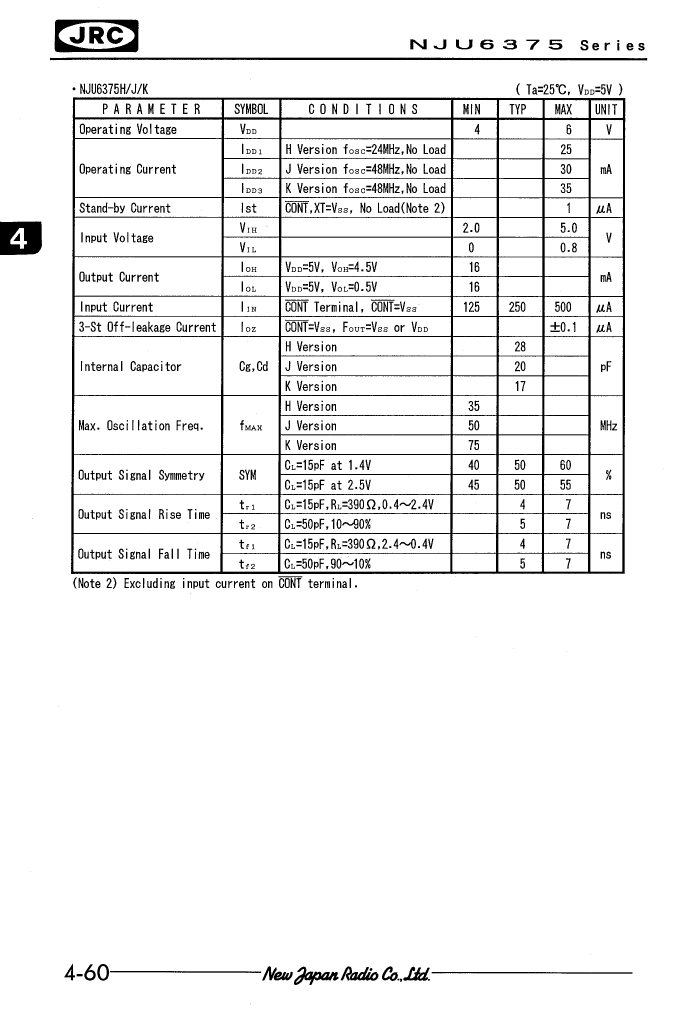

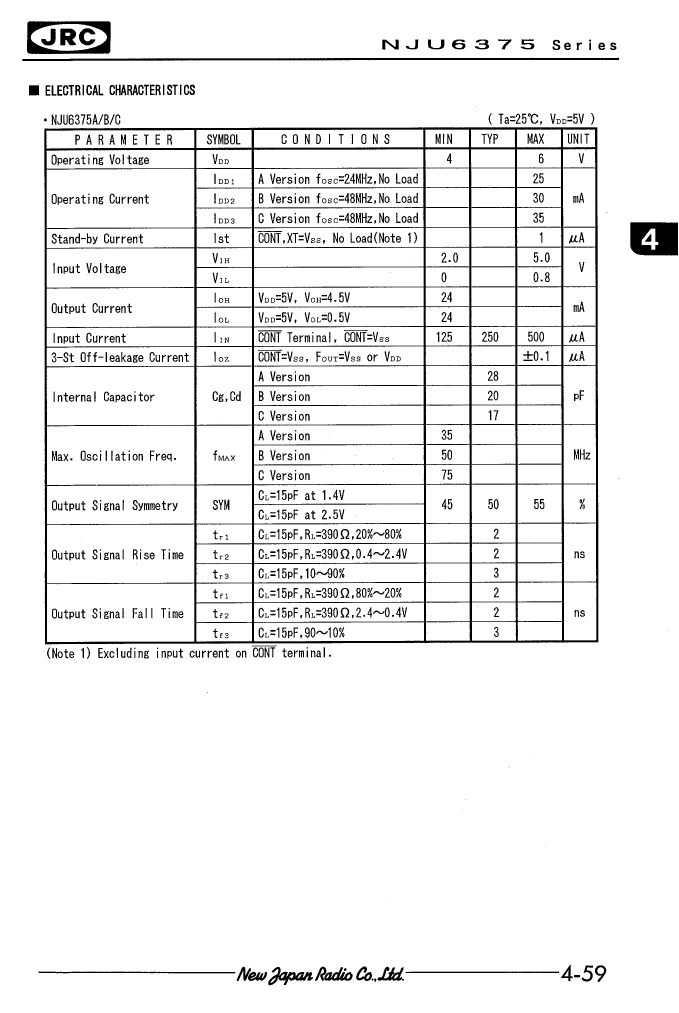

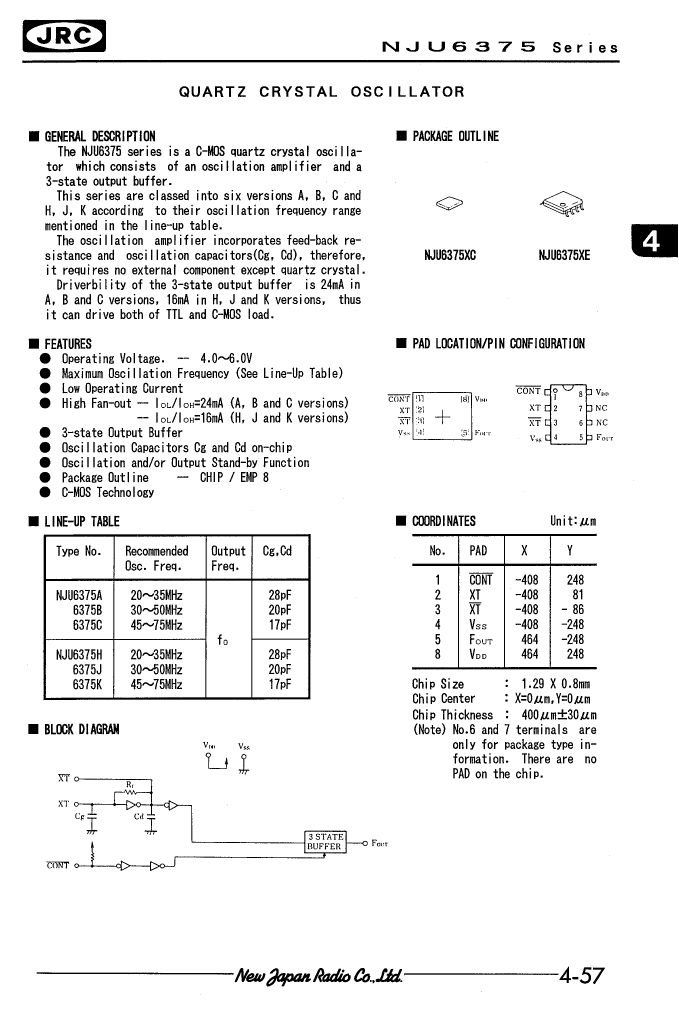

Preview

Download Datasheet

View All

NJU6375BE Related Products

	NJU6375BE	NJU6375JC	NJU6375KE	NJU6375HC	NJU6375AC	NJU6375KC	NJU6375CC	NJU6375BC	NJU6375JE
Description	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8	Clock Generator, 50MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 75MHz, CMOS, PDSO8, EMP-8	Clock Generator, 35MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 35MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 75MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 75MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 50MHz, CMOS, 1.29 X 0.80 MM, DIE-6	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	DIE	SOIC	DIE	DIE	DIE	DIE	DIE	SOIC
package instruction	SOP,	DIE,	SOP,	DIE,	DIE,	DIE,	DIE,	DIE,	SOP,
Contacts	8	6	8	6	6	6	6	6	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	R-XUUC-N6	R-PDSO-G8	R-XUUC-N6	R-XUUC-N6	R-XUUC-N6	R-XUUC-N6	R-XUUC-N6	R-PDSO-G8
JESD-609 code	e6	e6	e6	e6	e6	e6	e6	e6	e6
Number of terminals	8	6	8	6	6	6	6	6	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output clock frequency	50 MHz	50 MHz	75 MHz	35 MHz	35 MHz	75 MHz	75 MHz	50 MHz	50 MHz
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	SOP	DIE	SOP	DIE	DIE	DIE	DIE	DIE	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260
Master clock/crystal nominal frequency	50 MHz	50 MHz	75 MHz	35 MHz	35 MHz	75 MHz	75 MHz	50 MHz	50 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	NO LEAD	GULL WING	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	GULL WING
Terminal location	DUAL	UPPER	DUAL	UPPER	UPPER	UPPER	UPPER	UPPER	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
