AD2S66/514 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD2S66/514

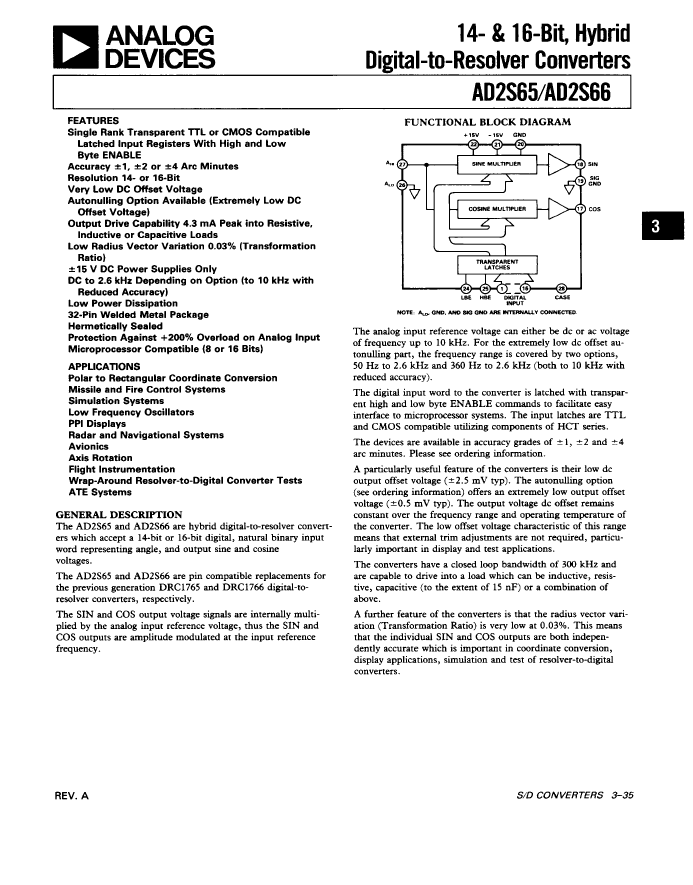

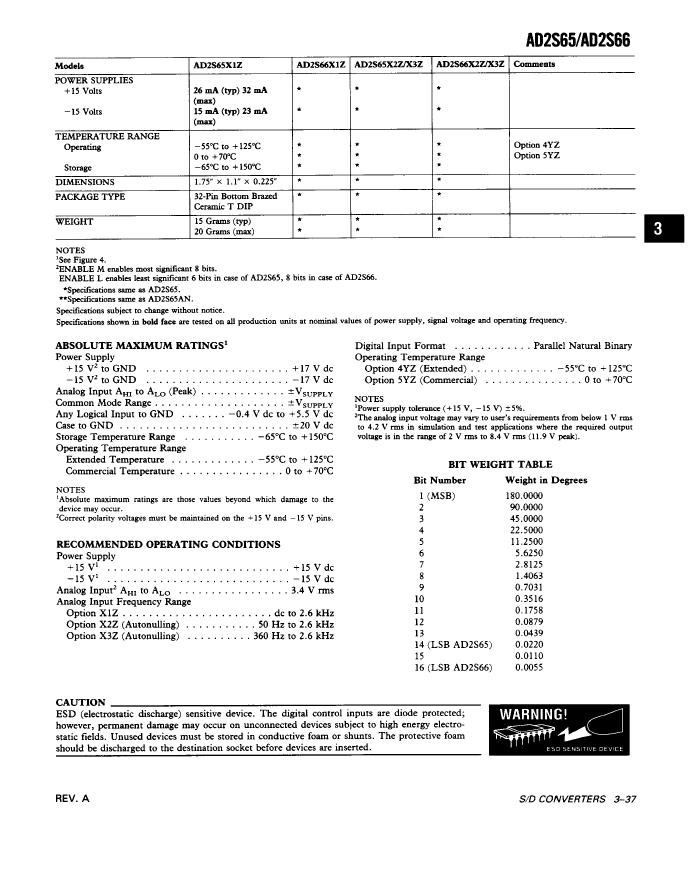

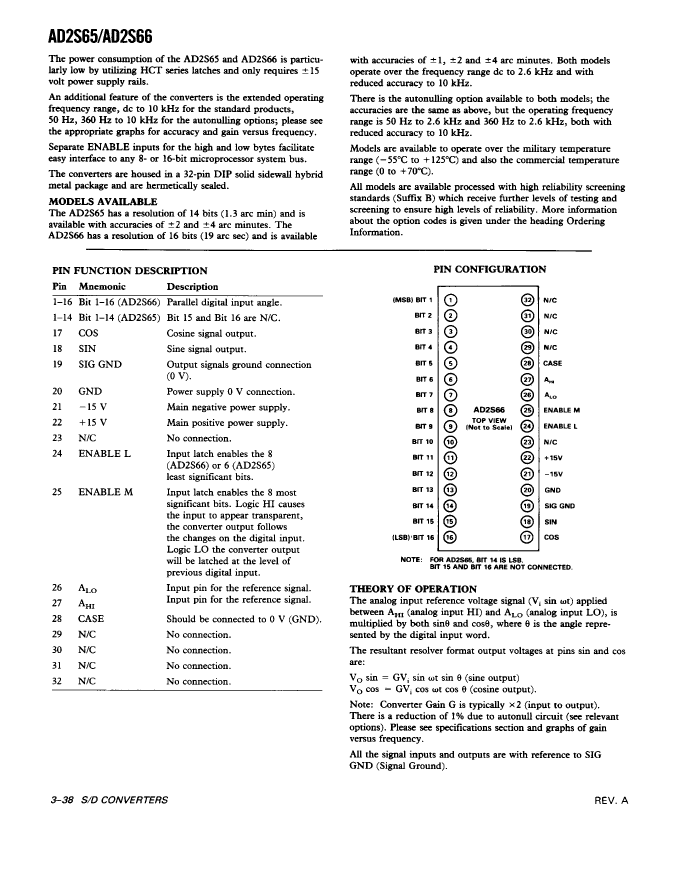

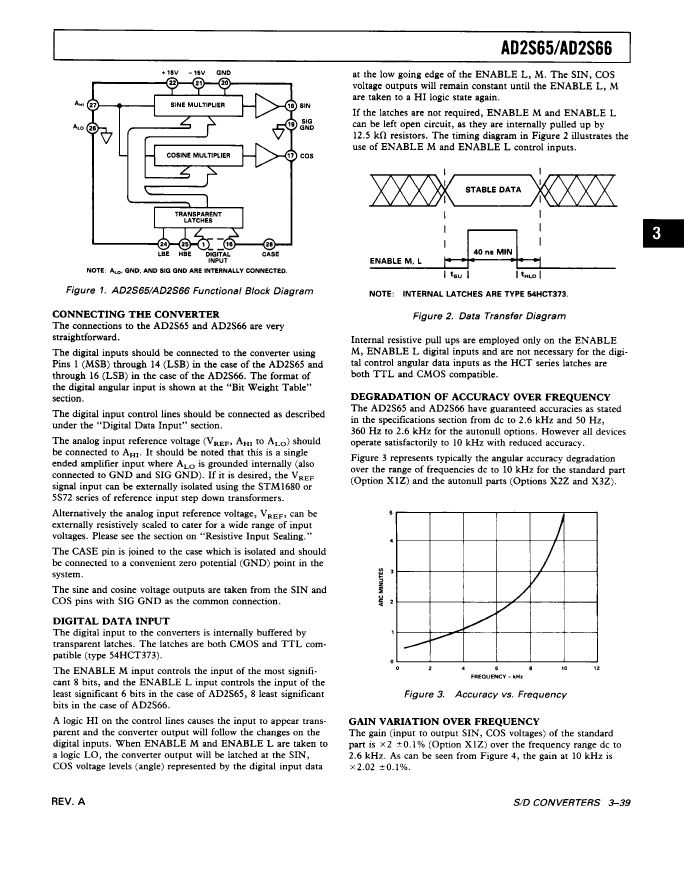

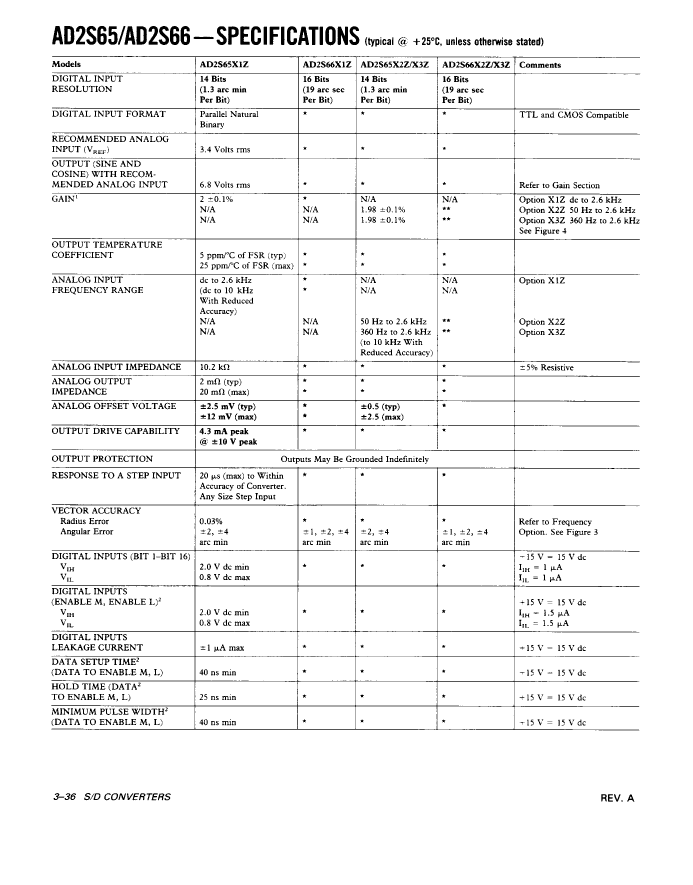

AD2S66/514: DescriptionIC DIGITAL TO SYNCHRO OR RESOLVER, CDIP32, 1.750 X 1.100 INCH, 0.225 INCH HEIGHT, HYBRID, HERMETIC SEALED, BOTTOM BRAZED, CERAMIC, TDIP-32, Position Converter; CategoryAnalog mixed-signal IC converter; File Size365KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

AD2S66/514 Overview

IC DIGITAL TO SYNCHRO OR RESOLVER, CDIP32, 1.750 X 1.100 INCH, 0.225 INCH HEIGHT, HYBRID, HERMETIC SEALED, BOTTOM BRAZED, CERAMIC, TDIP-32, Position Converter

AD2S66/514 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	1.750 X 1.100 INCH, 0.225 INCH HEIGHT, HYBRID, HERMETIC SEALED, BOTTOM BRAZED, CERAMIC, TDIP-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog output voltage	6.8 V
Maximum angular accuracy	4 arc min
Converter type	DIGITAL TO SYNCHRO OR RESOLVER
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
Maximum negative supply voltage	-15.75 V
Minimum negative supply voltage	-14.25 V
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Signal/output frequency	2600 Hz
Maximum slew rate	32 mA
Maximum supply voltage	15.75 V
Minimum supply voltage	14.25 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm
