17.0-27.0 GHz GaAs MMIC
Receiver
May 2007 - Rev 02-May-07
R1000-BD

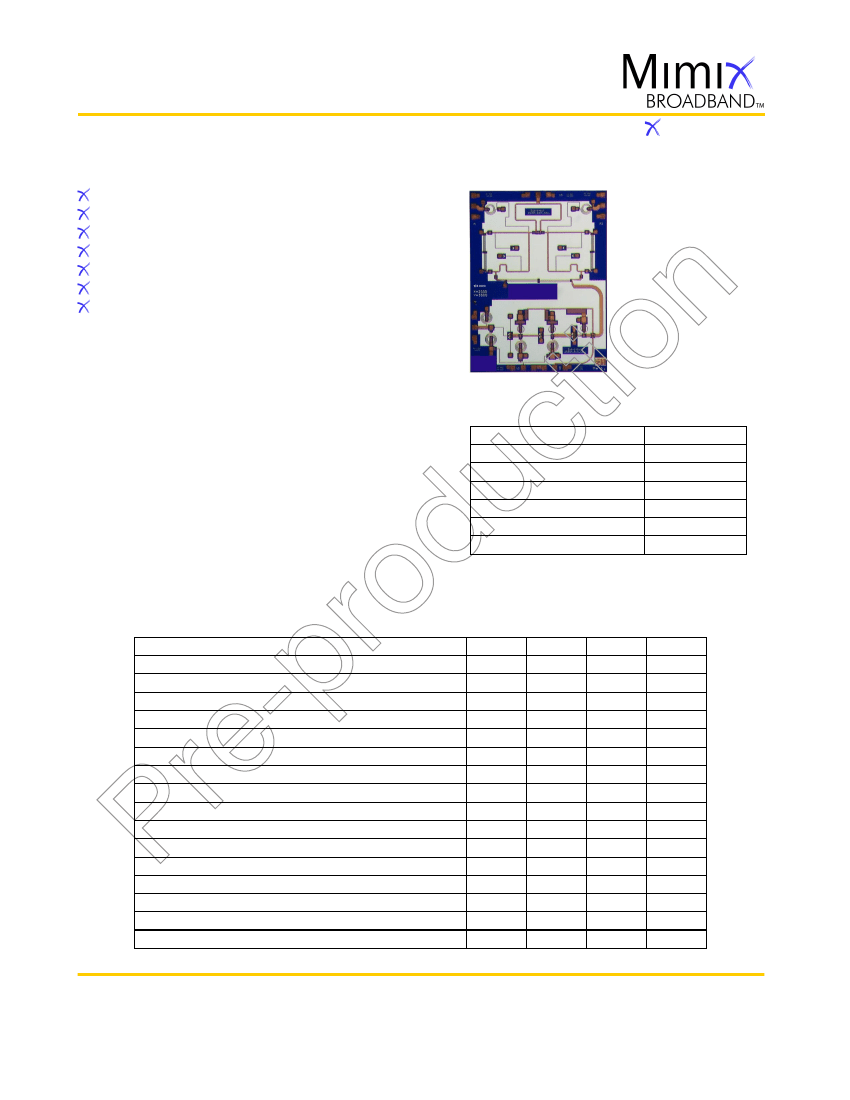

Chip Device Layout
Features
Fundamental Integrated Receiver
10.0 dB Conversion Gain
3.5 dB Noise Figure
15.0 dB Image Rejection
60.0 dB LO/RF Isolation
100% On-Wafer RF and DC Testing
100% Visual Inspection to MIL-STD-883 Method 2010
Mimix Broadband’s 17.0-27.0 GHz GaAs MMIC receiver has a small signal
conversion gain of 10.0 dB with a noise figure of 3.5 dB and 15.0 dB
image rejection across the band. The device is a three stage LNA
followed by an image reject fundamental mixer using Lange couplers to
improve bandwidth. The image reject mixer eliminates the need for a
bandpass filter after the LNA to remove thermal noise at the image
frequency. I and Q mixer outputs are provided and an external 90
degree hybrid is required to select the desired sideband. This MMIC uses
Mimix Broadband’s 0.15 µm GaAs PHEMT device model technology, and
is based upon electron beam lithography to ensure high repeatability
and uniformity. The chip has surface passivation to protect and provide
a rugged part with backside via holes and gold metallization to allow
either a conductive epoxy or eutectic solder die attach process. This
device is well suited for Millimeter-wave Point-to-Point Radio, LMDS,
SATCOM and VSAT applications.
General Description
Absolute Maximum Ratings
Supply Voltage (Vd)
Supply Current (Id)
Gate Bias Voltage (Vg)
Input Power (RF Pin)
Storage Temperature (Tstg)
Operating Temperature (Ta)
Channel Temperature (Tch)
+6.0 VDC
200 mA
+0.3 VDC
0 dBm
-65 to +165
O
C
-55 to MTTF Table
2
MTTF Table
2
(2) Channel temperature affects a device's MTTF. It is
recommended to keep channel temperature as low as
possible for maximum life.
Electrical Characteristics (Ambient Temperature T = 25
o
C)
Parameter
Frequency Range (RF) Upper Side Band
Frequency Range (RF) Lower Side Band
Frequency Range (LO)
Frequency Range (IF)
Input Return Loss RF (S11)
Input Return Loss LO (S22)
Small Signal Conversion Gain RF/IF (S21)
LO Input Drive (P
LO
)
Image Rejection
Noise Figure (NF)
Isolation LO/RF
Input Power for 1 dB Compression (P1dB)
1
Input Third Order Intercept (IIP3)
1
Drain Bias Voltage (Vd)
Gate Bias Voltage (Vg)
Supply Current (Id) (Vd=3.0V, Vg=-0.5V Typical)
Units
GHz
GHz
GHz
GHz
dB
dB
dB
dBm
dBc
dB
dB
dBm
dBm
VDC
VDC
mA
Min.
17.0
17.0
15.0
DC
-
-
-
-
-
-
-
-
-
-
-1.0
-
Typ.
-
-
-
-
10.0
8.0
10.0
+15.0
15.0
3.5
60.0
-15.0
-6.0
+3.0
-0.5
90
Max.
27.0
27.0
29.0
2.0
-
-
-
-
-
-
-
-
-
+5.5
0.0
180
Page 1 of 6
(1) Measured using constant current.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
17.0-27.0 GHz GaAs MMIC
Receiver
May 2007 - Rev 02-May-07
R1000-BD
1.331
(0.052)
3
2
4
3.183
(0.125)
Mechanical Drawing
3.500
(0.138)
3.183
(0.125)
0.874
(0.034)
1
6
0.0
0.0
1.030
(0.041)
5
1.630
(0.064)
2.660
(0.105)
(Note: Engineering designator is 25KRP_01E1)
Units: millimeters (inches) Bond pad dimensions are shown to center of bond pad.
Thickness: 0.110 +/- 0.010 (0.0043 +/- 0.0004), Backside is ground, Bond Pad/Backside Metallization: Gold
All Bond Pads are 0.100 x 0.100 (0.004 x 0.004).
Bond pad centers are approximately 0.109 (0.004) from the edge of the chip.
Dicing tolerance: +/- 0.005 (+/- 0.0002). Approximate weight: 5.777 mg.

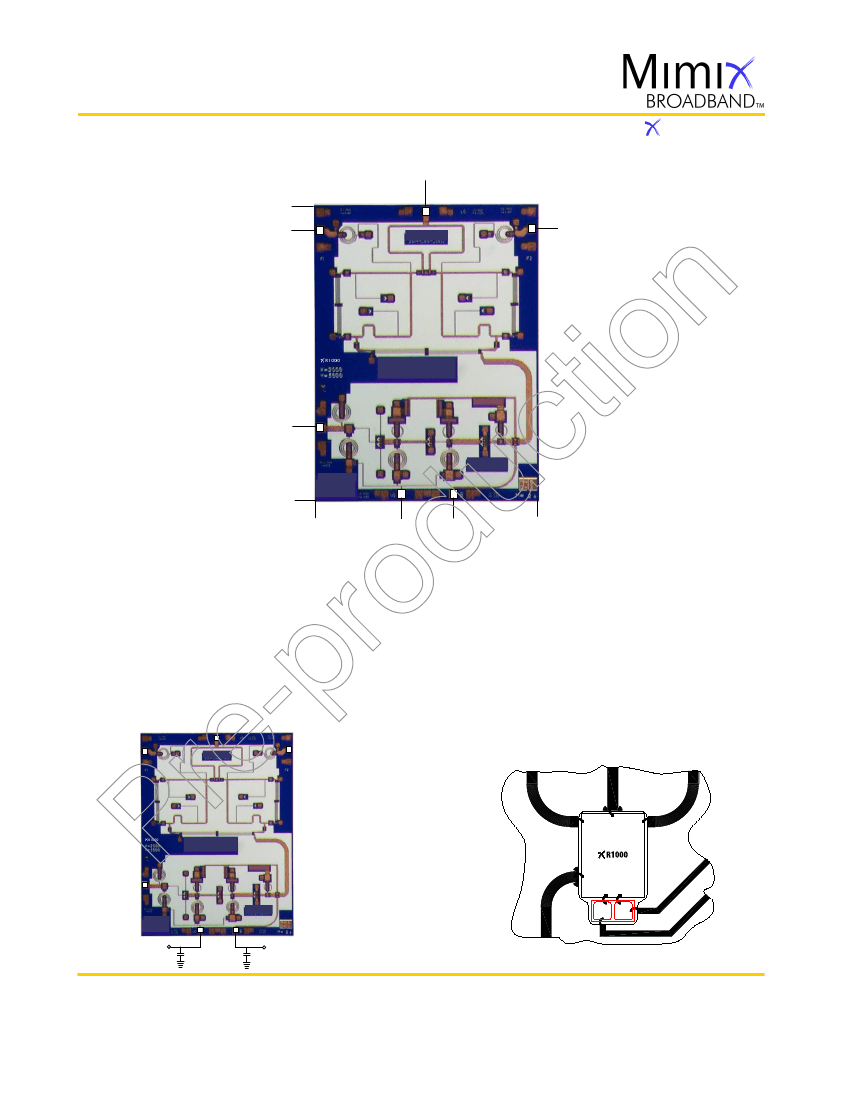

Bond Pad #1 (RF In)
Bond Pad #2 (IF1)
Bond Pad #3 (LO)
Bond Pad #4 (IF2)
Bond Pad #5 (Vd)
Bond Pad #6 (Vg)
Bias Arrangement
LO
3
Bypass Capacitors
- See App Note [2]
4
IF1
2
IF2
IF1
LO
IF2
Vd
RF In
1
Vg
6
5
Vg
Vd
RF
Page 2 of 6
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
17.0-27.0 GHz GaAs MMIC
Receiver
May 2007 - Rev 02-May-07
R1000-BD
App Note [1] Biasing
- As shown in the bonding diagram, this device is operated with all three stages in
parallel, and can be biased for low noise performance or high power performance. Low noise bias is
nominally Vd=3V, Id=90mA and is the recommended bias condition. Power bias may be as high as
Vd=5.5V, Id=180mA. It is also recommended to use active biasing to keep the currents constant as the RF
power and temperature vary; this gives the most reproducible results. Depending on the supply voltage
available and the power dissipation constraints, the bias circuit may be a single transistor or a low power
operational amplifier, with a low value resistor in series with the drain supply used to sense the current.
The gate of the pHEMT is controlled to maintain correct drain current and thus drain voltage. The typical
gate voltage needed to do this is -0.5V. Typically the gate is protected with Silicon diodes to limit the applied
voltage. Also, make sure to sequence the applied voltage to ensure negative gate bias is available before
applying the positive drain supply.
App Note [2] Bias Arrangement
- Each DC pad (Vd and Vg) needs to have DC bypass capacitance (~100-200 pF)
as close to the device as possible. Additional DC bypass capacitance (~0.01 uF) is also recommended.
MTTF Tables
These numbers were calculated based on accelerated life test information and thermal model analysis received from the fabricating foundry.
Backplate
Temperature
55 deg Celsius
75 deg Celsius
95 deg Celsius
Channel
Temperature
78 deg Celsius
98 deg Celsius
118 deg Celsius
Rth
MTTF Hours
FITs
-
85.3° C/W
-
9.93E+11
5.79E+10
4.49E+09
1.01E-03
1.73E-02
2.23E-01
Bias Conditions:
Vd=3.0V, Id=90 mA
Backplate
Temperature
55 deg Celsius
75 deg Celsius
95 deg Celsius
Channel
Temperature
137 deg Celsius
157 deg Celsius
177 deg Celsius
Rth
MTTF Hours
FITs
-
82.9° C/W
-
7.98E+08
9.77E+07
1.44E+07
1.25E+00
1.02E+01
6.93E+01
Bias Conditions:
Vd=5.5V, Id=180 mA
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 3 of 6
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
17.0-27.0 GHz GaAs MMIC
Receiver
May 2007 - Rev 02-May-07
R1000-BD

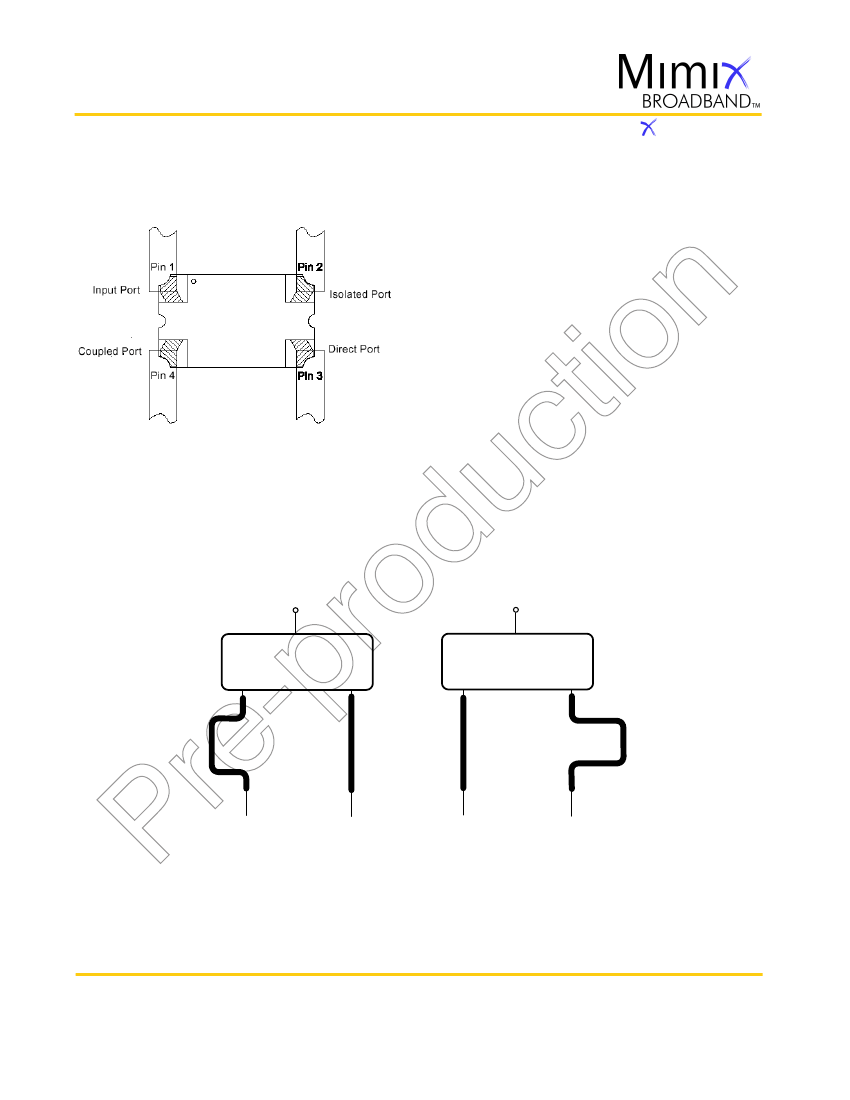

App Note [3] USB/LSB Selection
-
LSB
USB
For Upper Side Band operation (USB):
With IF1 and IF2 connected to the
direct port (0º) and coupled port (90º)
respectively as shown in the diagram,
the USB signal will reside on the
isolated port. The input port must be
loaded with 50 ohms.
IF2
IF1
For Lower Side Band operation (LSB):
With IF1 and IF2 connected to the
direct port (0º) and coupled port (90º)
respectively as shown in the diagram,
the LSB signal will reside on the input
port. The isolated port must be loaded
with 50 ohms.
An alternate method of Selection of USB or LSB:
USB
LSB
In Phase Combiner
In Phase Combiner
-90
o
-90
o
IF2
IF1
IF2
IF1
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 6
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
17.0-27.0 GHz GaAs MMIC
Receiver
May 2007 - Rev 02-May-07
R1000-BD

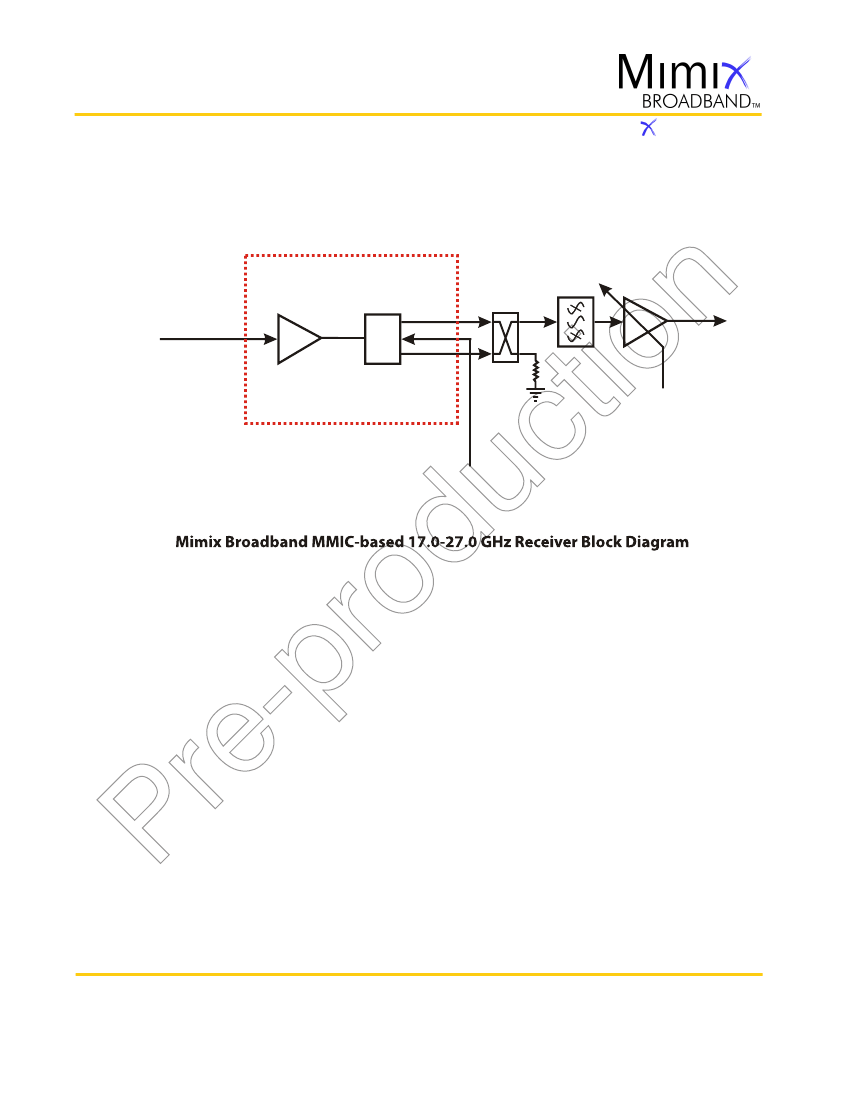

Typical Application
XR1000-BD
BPF
RF IN
17.7-19.7 GHz
LNA
IR Mixer
Coupler
IF Out
2 GHz
AGC Control
LO(+15dBm)
15.7-17.7 GHz (USB Operation)
19.7-21.7 GHz (LSB Operation)
(Changing LO and IF frequencies as required allows design to operate as high as 27 GHz)
Also See:
Multiplier selection guide at www.mimixbroadband.com for multipliers that can be used
to drive the XR1000.
