DDMZ24C7PNK87 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DDMZ24C7PNK87

DDMZ24C7PNK87: DescriptionD Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DDMZ24C7PNK87 Overview

D Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,

DDMZ24C7PNK87 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: 110238-1015; 110238-1012; D130357-1; D130357; D130357-4, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

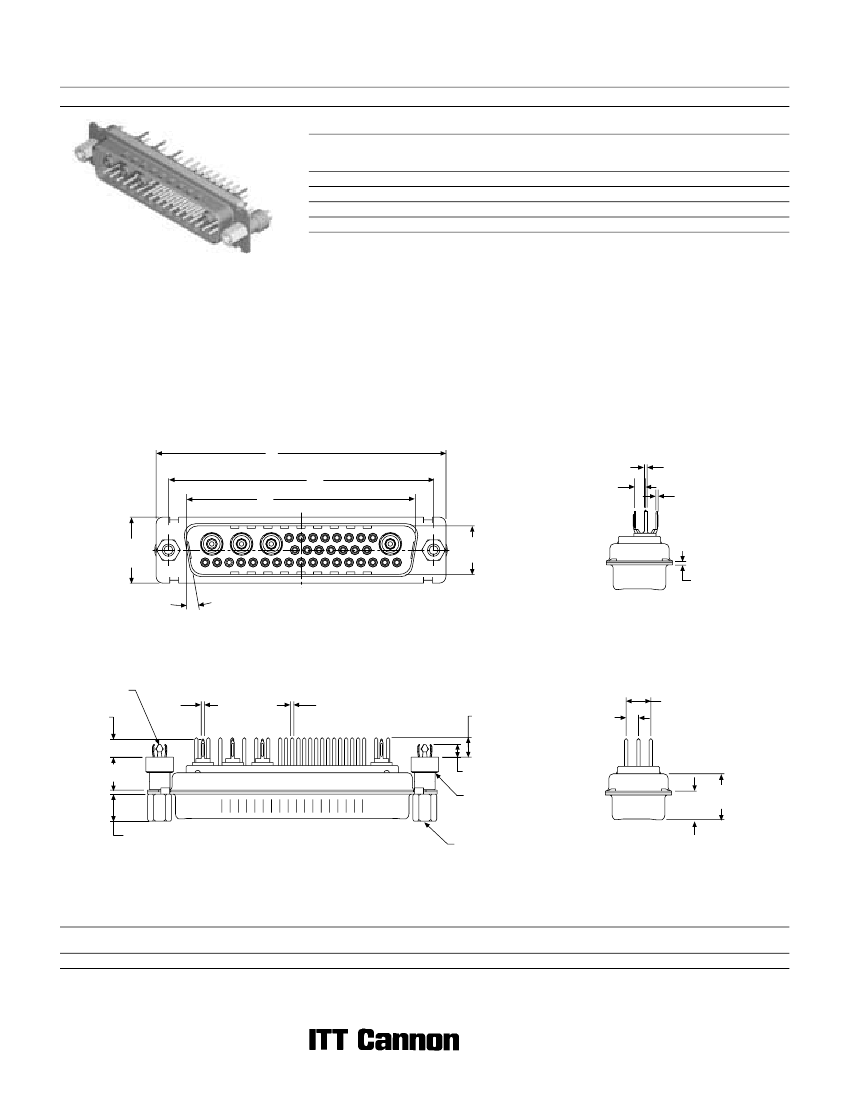

D Subminiature

Coaxial Straight — Standard PC Tails (Size DD)

Plug

75 Ohm Part Numbers* with Standoff #4-40 UNC

Shell Size

Layout

24W7

36W4

43W2

47W1

Part Number

Without Screw Locks

Without Boardlocks

DDMV24C7PNK87

DDMV36C4PNK87

DDMV43C2PNK87

DDMV47C1PNK87

Part Number

Without Screw Locks

With Boardlocks

DDMZ24C7PNK87

DDMZ36C4PNK87

DDMZ43C2PNK87

DDMZ47C1PNK87

Combo D



Part Number

With Screw Locks

With Boardlocks

DDMN24C7PNK87

DDMN36C4PNK87

DDMN43C2PNK87

DDMN47C1PNK87

Notes: * For 50 Ohm Coaxial substitute X for C. Example: DDMV24X7PNK87

For contacts with 30 microinches gold substitute K127 for K87. Example: DDMN24C7PNK127

Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see page 240.

For panel cutouts, see page 221.

For alternate 50 Ohm coaxial configuration,

see page 225.

Engaging Face

Ø 0,51

(.020)

2,54

(.100)

0,62

(.024)

10°

Hardware and signal contacts

removed for clarity

BOARDLOCK

3,45

(.136)

0,82

(.032)

Ø 0,76

(.030)

4,52 (.178)

2,84

(.112)

5,69

(.224)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Hardware and coaxial contact

removed for clarity

Dimensions

Shell Size

±0,38

(.015)

66,93 (2.635)

±0,13

(.005)

52,81 (2.079)

±0,13

(.005)

61,11 (2.406)

±0,13

(.005)

11,07 (.436)

±0,38

(.015)

15,37 (.605)

±0,25

(.010)

10,82 (.426)

±0,41

(.016)

6,84 (.269)

±0,25

(.010)

0,99 (.039)

Dimensions are shown in mm (inch)

Dimensions subject to change
