SBT6040D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SBT6040D

SBT6040D: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN; CategoryDiscrete semiconductor diode; File Size136KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SBT6040D Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN

SBT6040D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Microsemi
Parts packaging code	BFM
package instruction	TO-3, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-204AE
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Maximum non-repetitive peak forward current	600 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

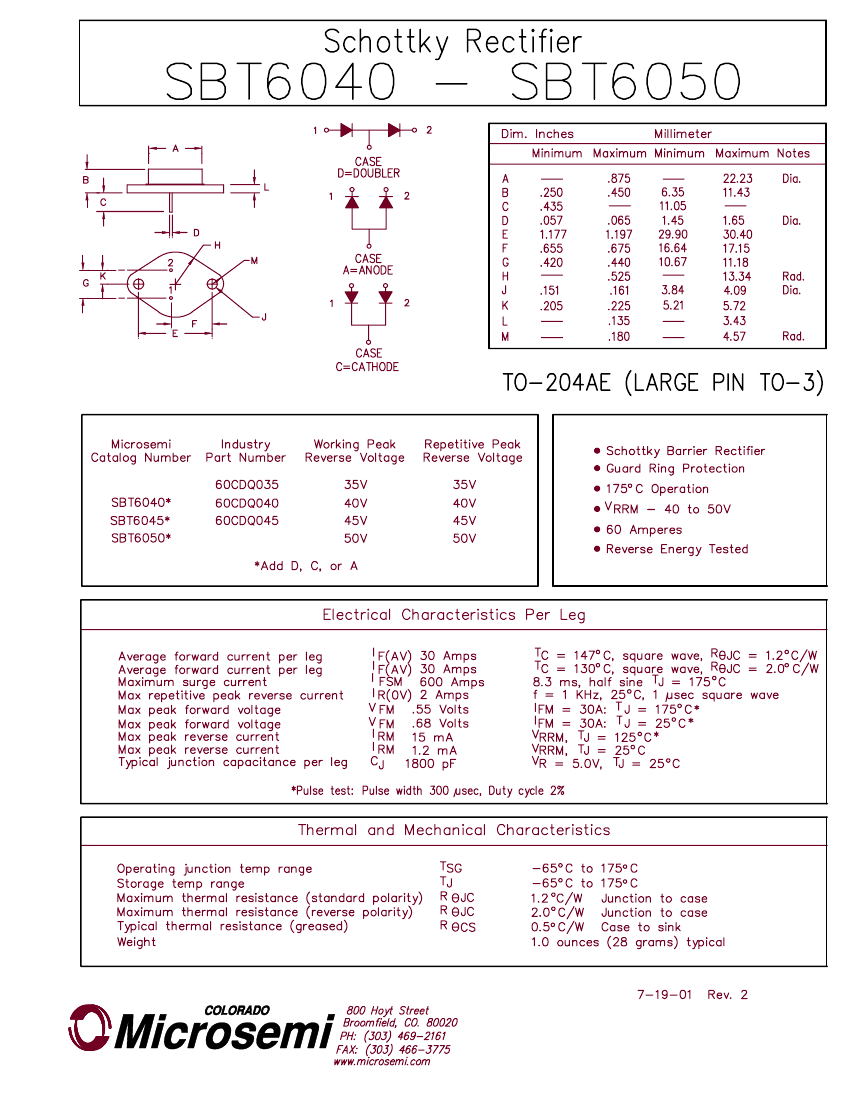

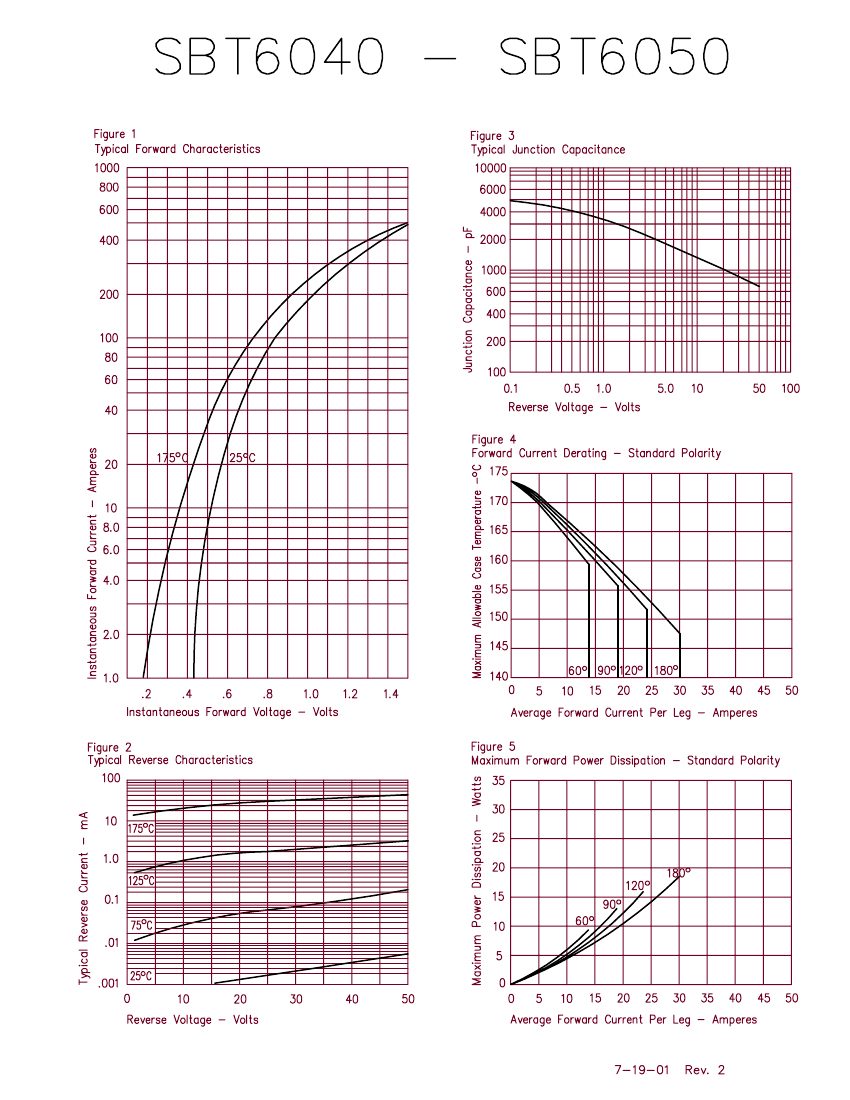

Preview

Download Datasheet

View All

SBT6040D Related Products

	SBT6040D	SBT6050C	SBT6045D	SBT6050A	SBT6040A	SBT6045A	SBT6045C	SBT6040C	SBT6050D
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 40V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AE, TO-3, 2 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Lead free	Lead free	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	BFM	BFM	BFM	BFM	BFM	BFM	BFM	BFM	BFM
package instruction	TO-3, 2 PIN	O-MBFM-P2	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN	O-MBFM-P2	TO-3, 2 PIN	O-MBFM-P2	TO-3, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE AND CATHODE	CATHODE	ANODE AND CATHODE	ANODE	ANODE	ANODE	CATHODE	CATHODE	ANODE AND CATHODE
Configuration	SERIES CONNECTED, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-204AE	TO-204AE	TO-204AE	TO-204AE	TO-204AE	TO-204AE	TO-204AE	TO-204AE	TO-204AE
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	50 V	45 V	50 V	40 V	45 V	45 V	40 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Microsemi	-	-	-	-	Microsemi	Microsemi	Microsemi	Microsemi
