MATERIAL AND FINISH:
Spring: Spring Steel, Nickel plated imbedded in
Insulator: Impact resistance Polypropylene, black, Polypropylene
UL-94V-HB rated
PDSN-21A (wire leads): PVC, 26 AWG
ENVIRONMENTAL:
Contact & terminals:
Operating temperature: -5°C to +83°C
PDSN-21B: Brass, Nickel plated
PDSN-21C: Brass, Nickel plated
PDSN-21D: Steel, Nickel plated
57.7±0.5
28.9
RED
BLACK
_
2X 4
STRIP
AND
TIN
(-)
(+)
D
+
150±5
PDSN-21A WIRE LEADS
FEMALE (-)
_
C
+
MALE (+)
C
47.0±0.5
+
_
30.0
PDSN-21B SNAP TERMINAL
(+)
(-)
_
+
2X Ø3.0
B
12.9±0.1
0.30 TYP.
Ø1.3 TYP.
PDSN-21C SOLDER LUGS
(+)
(-)
B
16.6±0.5
3.4±0.5
CHNG CHCK APPR
SLS
SS
TD
JJ
PB
TD
LH
JJ
0.60 TYP.
12.9±0.1
PDSN-21D PCB PINS
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
1.6 TYP.
SLS
UPDATE DWG & ADD TOL.
REVISIONS
REVISED / UPDATED
UPDATED DRAWING
DIM 30.0 WAS 27.0
CHANGE
GQ
TD
PB
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076
A
04/05/02
7/10/00
DATE
10/99
2X Ø1.8
RECOMMENDED
PCB LAYOUT FOR
PDSN-21D

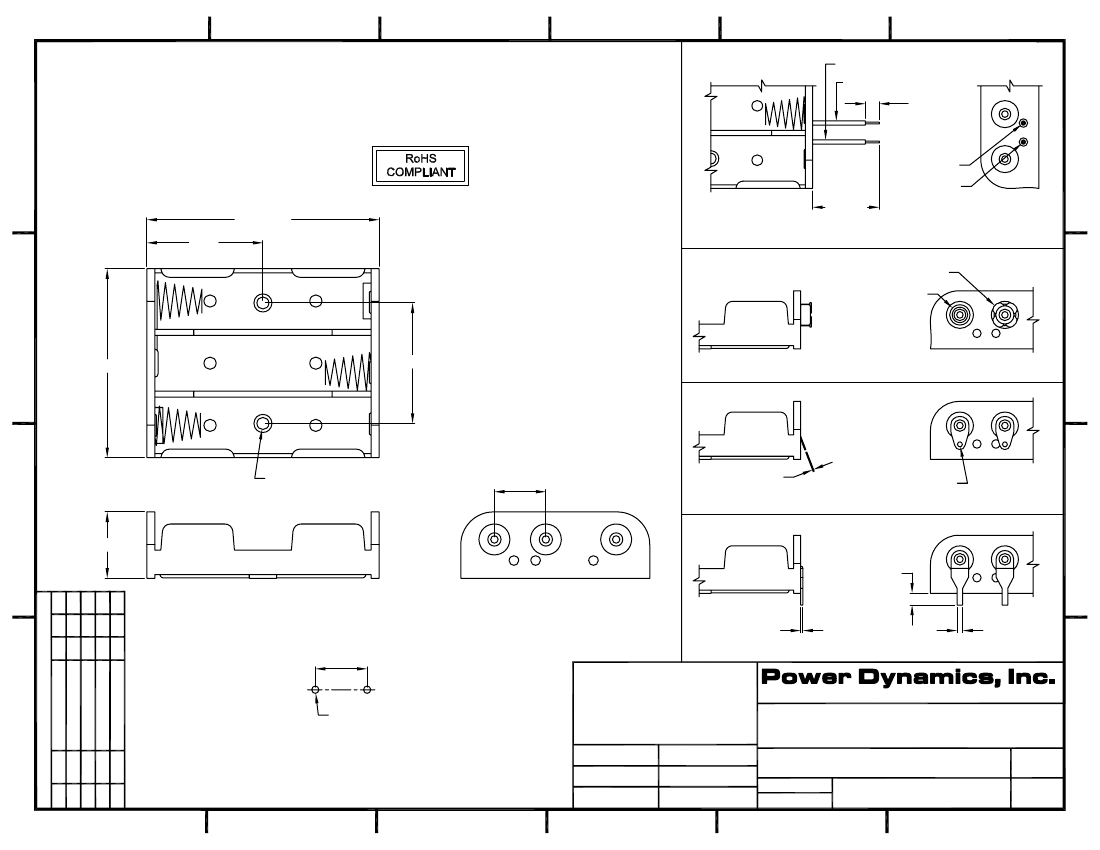

PART: 3 CELL TYPE "AA" BATTERY HOLDER
SIDE BY SIDE
PART #:
A
DRAWN
BY
CHECK
BY
APPR
BY
6/98
TM
JJ
SS
DATE:
DATE:
DATE:
3/21/94
10/14/99
10/14/99
SIZE:
SCALE:
PDSN-21X
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
