XO5165A5V5S-RFREQ

Description
HCMOS/TTL Output Clock Oscillator, 10MHz Min, 20MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-4
CategoryPassive components    oscillator
File Size402KB,2 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Environmental Compliance
Download Datasheet Parametric View All

XO5165A5V5S-RFREQ Overview

HCMOS/TTL Output Clock Oscillator, 10MHz Min, 20MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-4

XO5165A5V5S-RFREQ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMtronPTI
Reach Compliance Codeunknown
Frequency Adjustment - MechanicalNO
frequency stability4.6%
input power0.35 W
JESD-609 codee1
Installation featuresSURFACE MOUNT
Maximum operating frequency20 MHz
Minimum operating frequency10 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeHCMOS/TTL
Output load10 LS TTL, 15 pF
Oven power supply voltage5V
physical size20.32mm x 12.85mm x 7.62mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Preheating power1.25 W
Maximum warm-up time0.5 Minute

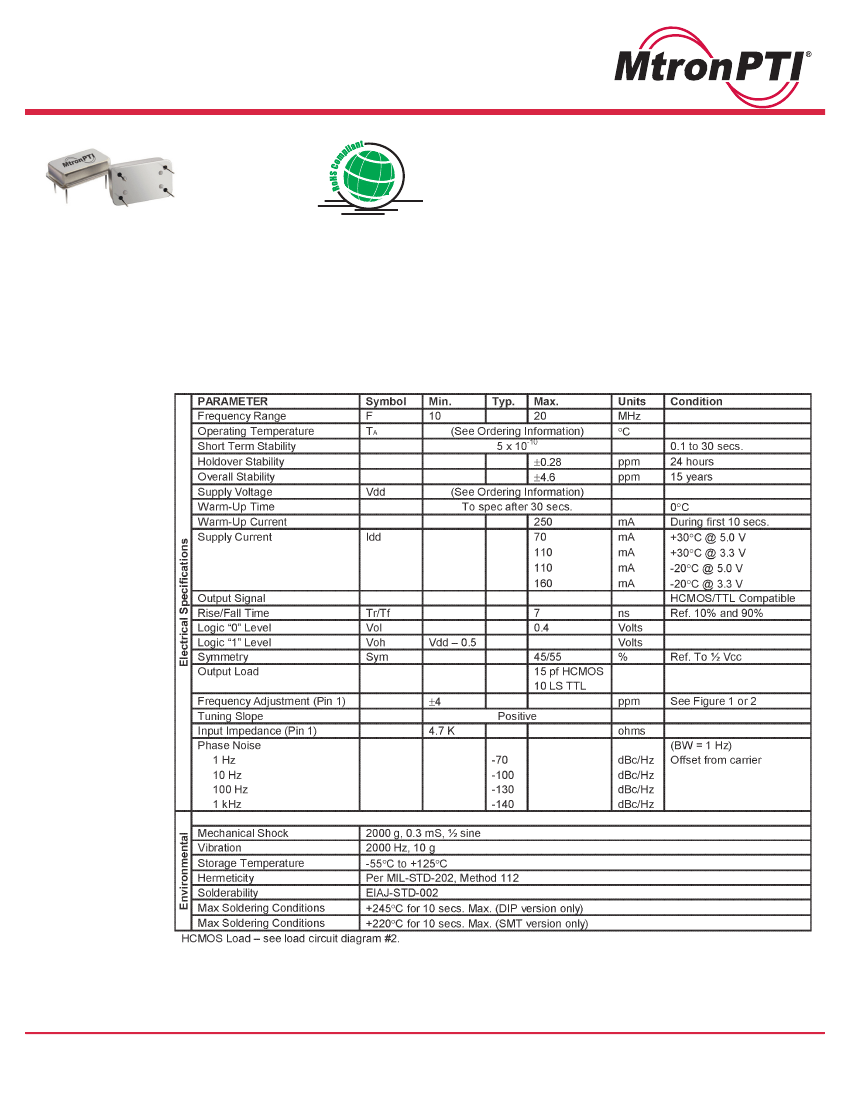

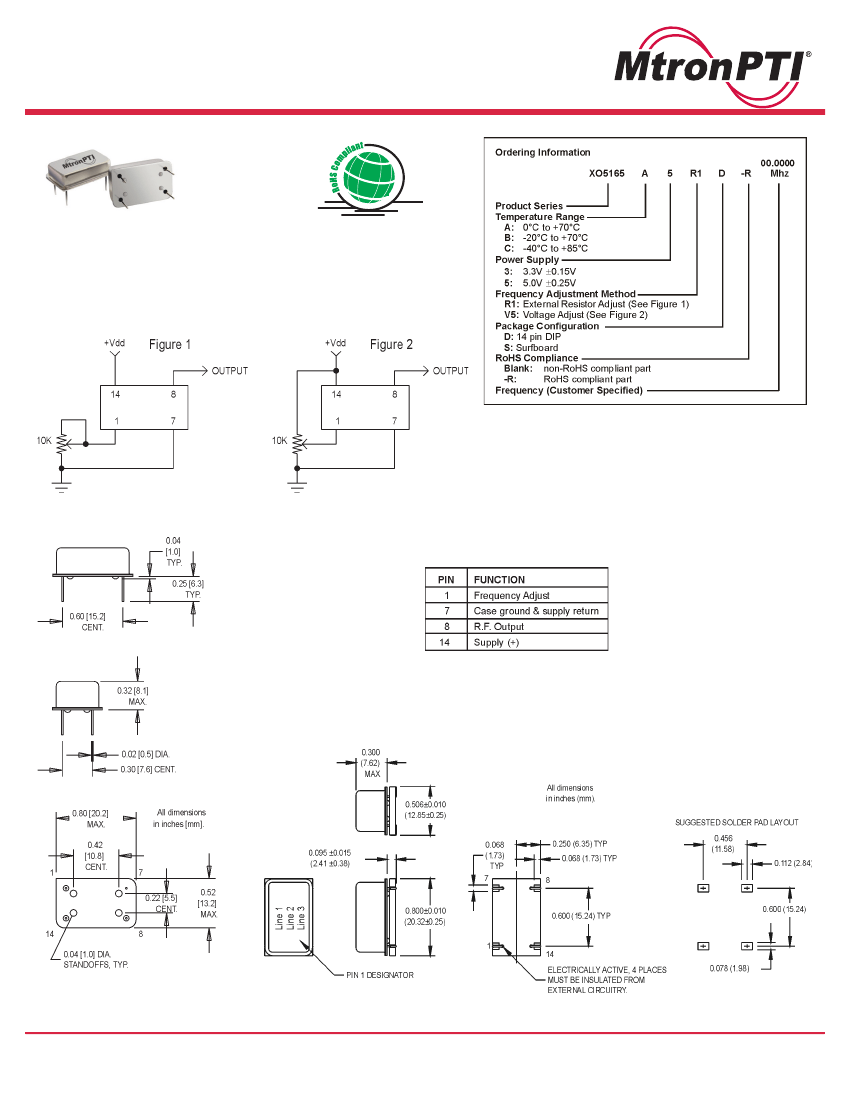

XO5165 Series
14 pin DIP, 5.0 or 3.3 Volt, HCMOS, OCXO
Standard DIP/DIL package offering tight
stabilities, fast warm-up, and low current
Stratum 3 Application
SMT Surfboard Option
M7011Sxxx - Contact factory for datasheets.
PTH Package
Pin Connections
SMTPackage
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision: 9-13-07
