8532-NI-HV datasheet, PDF - EEWORLD Datasheet

8532-NI-HV: DescriptionInside DC Block, 10MHz Min, 18000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size609KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

8532-NI-HV Overview

Inside DC Block, 10MHz Min, 18000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	N-F, N-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	950 V
Maximum insertion loss	1.5 dB
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.6

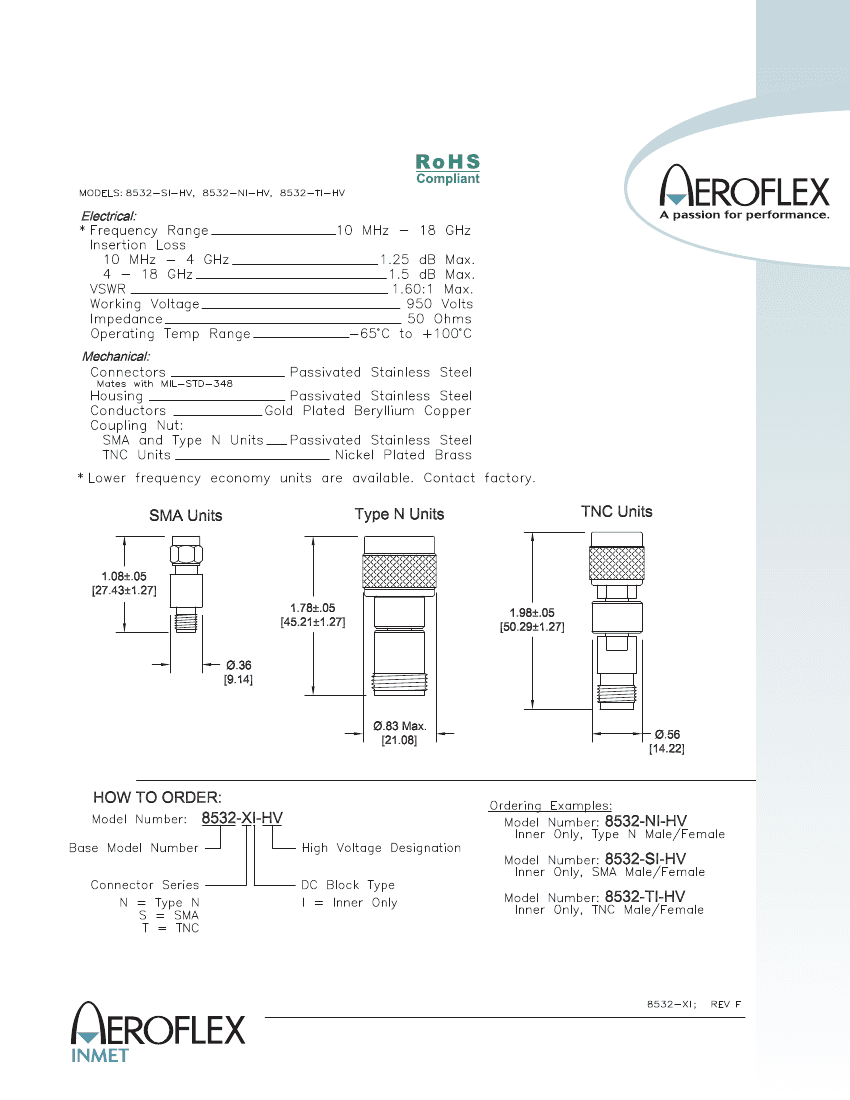

DC BLOCKS, INSIDE

SMA, TNC and Type N, 10 MHz - 18 GHz, 950 Volts

SPECIFICATIONS:

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com

	8532-NI-HV	8532-TI-HV	8532-SI-HV
Description	Inside DC Block, 10MHz Min, 18000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 10MHz Min, 18000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 10MHz Min, 18000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Maker	Cobham PLC	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown	unknown
Other features	N-F, N-M	TNC-F; TNC-M	SMA-F; SMA-M
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum DC voltage	950 V	950 V	950 V
Maximum insertion loss	1.5 dB	1.5 dB	1.5 dB
JESD-609 code	e4	e4	e4
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK	INSIDE DC BLOCK
Terminal surface	GOLD	Gold (Au)	GOLD
Maximum voltage standing wave ratio	1.6	1.6	1.6
