AR11-3691I: DescriptionSingle Port RJ45 Connector; File Size301KB，2 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

AR11-3691I Overview

Single Port RJ45 Connector

Preview

Download Datasheet

View All

RoHS

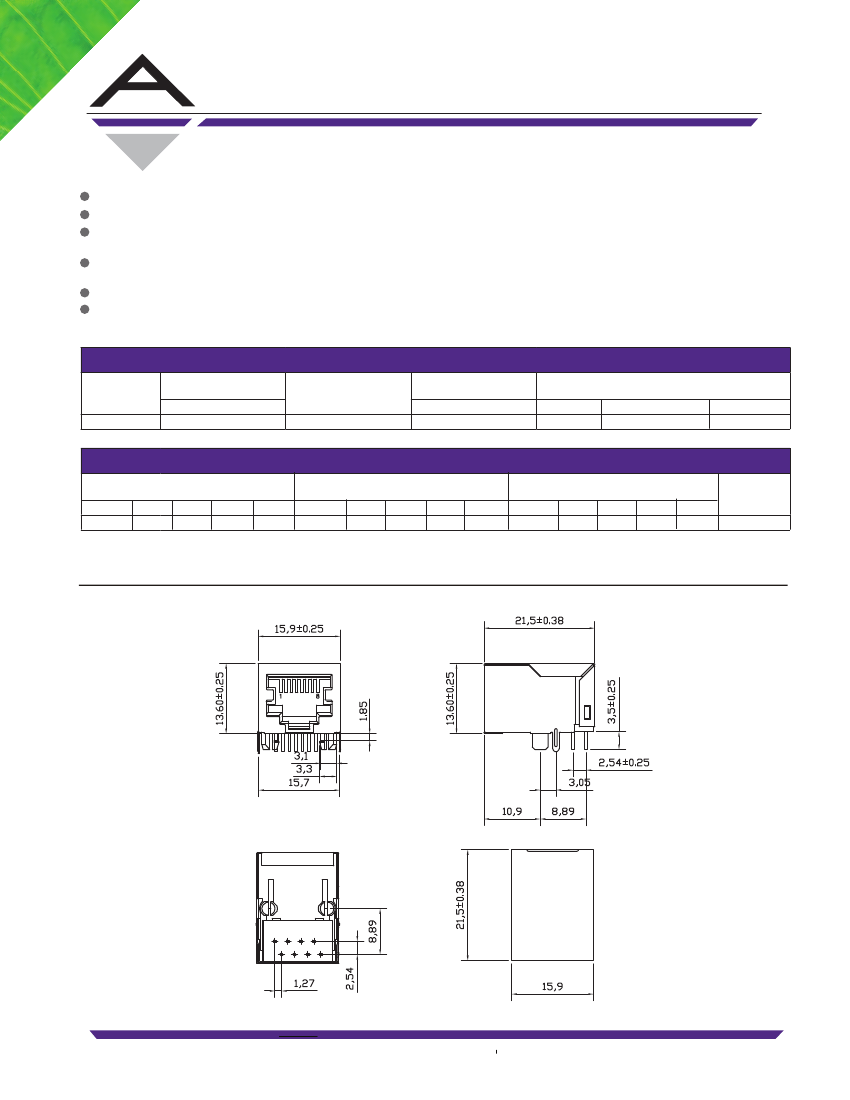

Single Port RJ45 Connector

AR11-3691I

10/100 Base-T

Impedance: 100OHMS

Transmit open circuit inductance (OCL):

350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias

RJ45 jack cavity conforms to FCC rules and

rules and regulations Part 68, SUB Part F

Industrial temp: -40ºC to +85ºC

Contact Factory for Standard Temp.

Electrical Speciﬁcations @ 25°C

Part

Number

AR11-3691I

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±2%)

1CT:1CT

Insertion Loss

(dB Max)

1-100MHz

-1.0

1-30MHz

-18

Return Loss

(dB Min)

30-60MHz

-18-20Log(F/30MHz)

60-80MHz

-12

Electrical Speciﬁcations @ 25°C

CMR

CDMR

Cross Talk

HI-POT

(dB Min)

(Vrms)

0.5-1MHz 10MHz 30MHz 50MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.5mA/2Sec.

-35

-40

-37

-50

-30

1500

-47

-30

-42

-45

-50

-40

All specifications subject to change without notice.

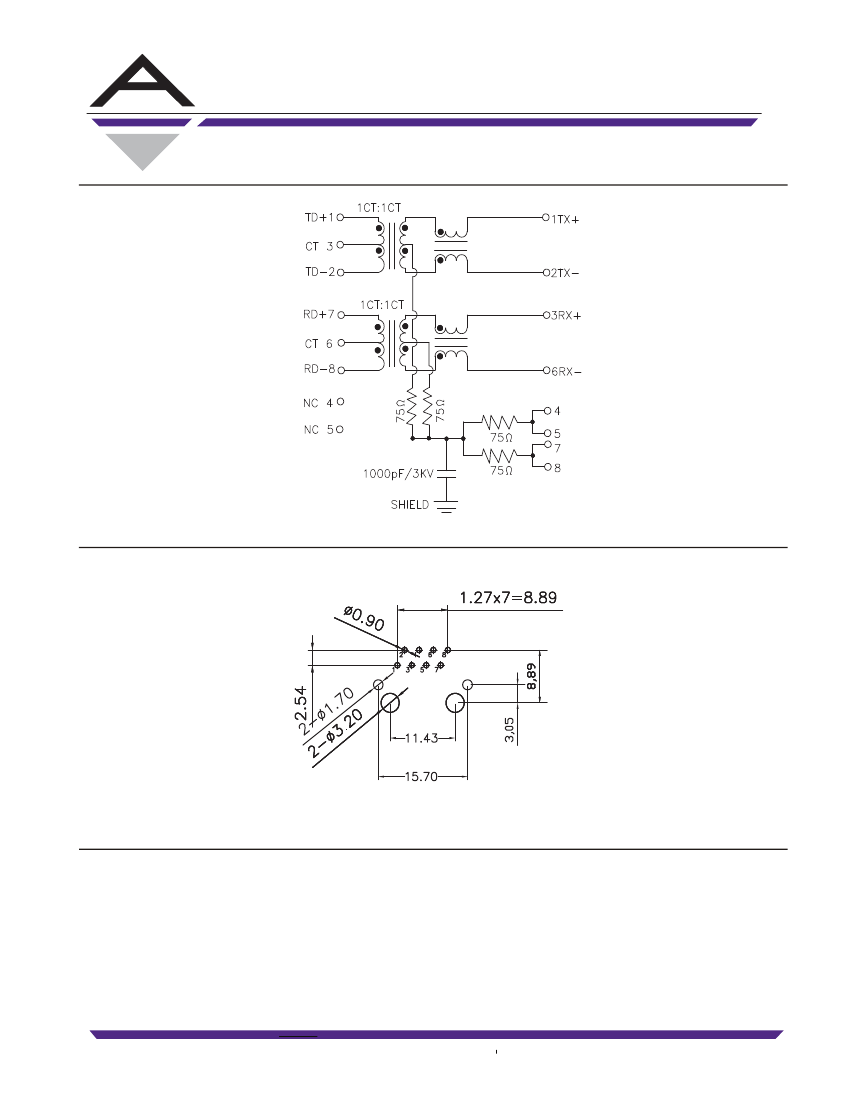

MECHANICAL

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

01/30/12

www.alliedcomponents.com
