PC/104 -Plus Single Board Computer
Intel
®
Atom™ Z5xx processor
High-performance video
Gigabit Ethernet
DDR2 RAM (up to 2 GB)
USB 2.0 (7 ports)
Serial I/O (4 ports)
IDE Interface
HD audio
DOM flash socket
Fanless operation
Industrial temp. version
TIGER
MIL-STD-202G shock/vibe
Highlights
PC/104-Plus Form Factor
Supports PC/104™ and PC/104-Plus expansion modules on a
highly rugged format.
Overview

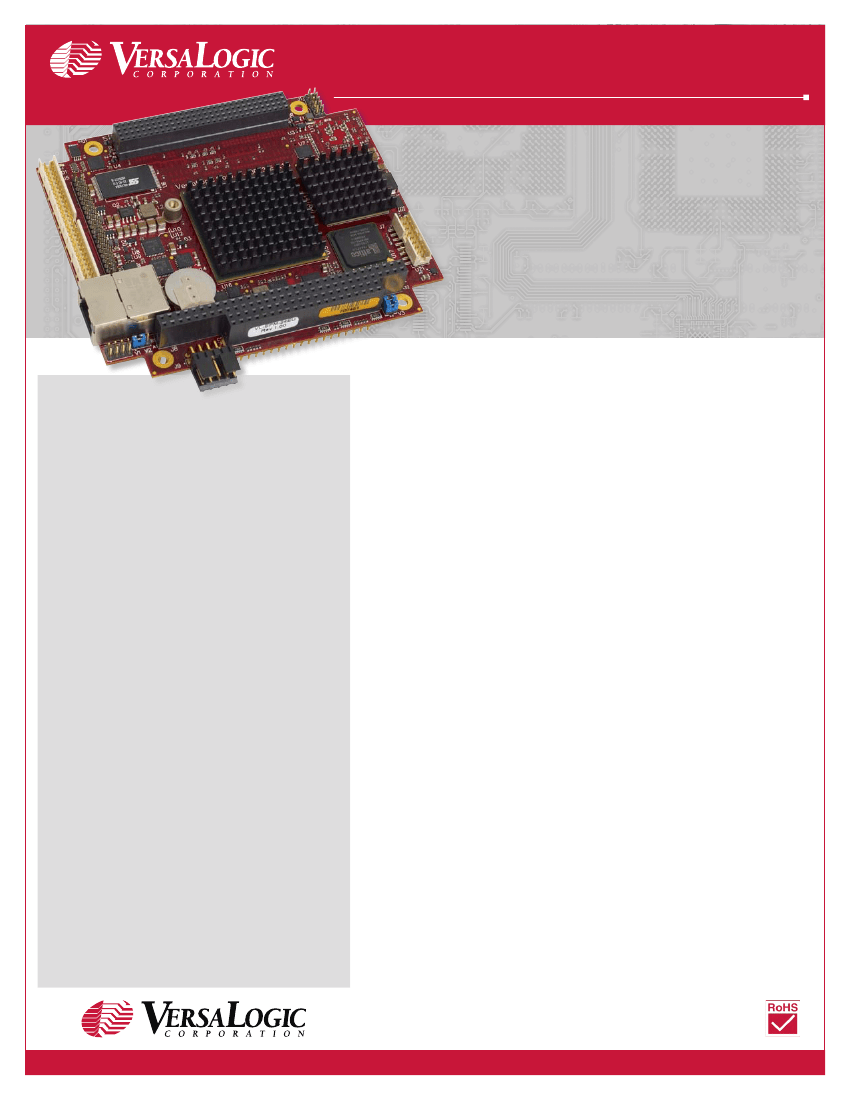

The Tiger is an embedded single board computer (SBC) featuring a high-performance Intel
Atom Z5xx processor. Based on the PC/104-Plus industry standard form factor, the Tiger
supports both PC/104 and PC/104-Plus stackable expansion boards. With its combination of
high performance (up to 1.6 GHz), low power consumption (6W typ. while executing code), and
fanless operation, the Tiger is an ideal embedded computer solution for space, weight, and
power (SWaP) constrained embedded applications in industrial, energy, defense/aerospace,
medical, and robotics markets.
Like all VersaLogic products, the Tiger is designed to support OEM applications where high reliability
and long-term availability are required. From application design-in support, to its 5+ year production
life guarantee, the Tiger provides a durable embedded computer solution with an excellent cost of
ownership. The Tiger is manufactured and tested to the highest quality standards and is fully RoHS
compliant. Customization is available, even in low OEM quantities.
Intel Atom Z5xx Processor
High-performance Video
Network Support
System RAM
USB I/O
Up to 1.6 GHz performance with very low power draw.
Advanced 3D graphics and high-definition video decode.
Gigabit Ethernet with remote boot support.
Up to 2 GB DDR2 RAM.
Seven USB 2.0 ports support keyboard, mouse, and
other devices.
Details
Driven by an Intel Atom Z5xx processor designed specifically for embedded applications, the Tiger
runs completely fanless at 1.6 GHz (commercial temperature) or 1.33 GHz (industrial temperature).
Enhanced Intel SpeedStep
®
technology provides dynamic processor frequency scaling to meet
instantaneous performance needs while minimizing power draw and heat dissipation. This allows
users to fine-tune the balance between power conservation and performance to suit their application
needs. Enhanced low-power states allow designers to further minimize overall power consumption.
The integrated graphics core of the Atom Z5xx processor supports advanced 3D graphics and
high-definition video decode. Video output is provided through an integrated LVDS flat panel video
interface and optional analog VGA support.
Tiger’s standard on-board features include gigabit Ethernet with network boot capability, SO-DIMM
socket for up to 2 GB DDR2 RAM, seven USB 2.0 ports, four serial ports, IDE controller with support
for two devices, HD audio, and a Disk on Module (DOM) socket for removable flash storage. PC/104-
Plus
expansion provides plug-in access to a wide variety of industry standard expansion modules.
VersaLogic’s SPX expansion interface provides access to cost-effective plug-in I/O including analog,
digital, CANbus, and custom I/O solutions.
Available in both industrial (-40° to +85°C) and commercial (0° to +60°C) temperature versions; the
Tiger meets MIL-STD-202G specifications for shock and vibration. Transient voltage suppression
(TVS) devices on critical I/O ports provide enhanced electrostatic discharge (ESD) protection which
Device I/O
Four serial ports, IDE interface, and HD audio.
Flash Memory
Disk on Module socket for plug-in flash storage.
Fanless Operation
No moving parts required for CPU cooling.
Industrial Temperature Version
MIL-STD-202G
-40° to +85°C operation for harsh environments.
Qualified for high shock/vibration environments.
SPX Expansion
Add additional analog, digital, or CANbus modules.
VersaLogic Corporation
•
4211 West 11th Ave., Eugene, OR 97402
•
(541) 485-8575
•
Fax (541) 485-5712
•
info@VersaLogic.com
•
www.VersaLogic.com
PC/104 -Plus Single Board Computer
SPECIF ICATIONS
is critical in many OEM applications.
The Tiger features an embedded BIOS with OEM enhancements from Phoenix
Technologies. The field-reprogrammable BIOS supports custom defaults and
the addition of firmbase applications for security processes, remote booting,
and other pre-OS software functions. The Tiger is compatible with a variety
of popular operating systems including Windows, Windows Embedded, Linux,
VxWorks, and QNX.
TIGER
General
Board Size
Processor + Chipset
PC/104 compliant: 114 mm x 96 mm (4.49” x 3.78”)
Model
Processor
Speed
VL-EPM-24SU Atom Z530P 1.6 GHz
VL-EPM-24EU Atom Z520PT 1.33 GHz
Chipset
US15WP
US15WPT
533 MHz FSB. Dynamic 512 KB L2 cache.
Supports Enhanced Intel SpeedStep Technology
and Hyper-Threading Technology (HTT).
Power Requirements *
Hardware Monitors
Model
VL-EPM-24SU
VL-EPM-24EU
Watchdog
Timer
Power Quality
Monitor
Sleep (S3)
Typical
0.21A (1.05W)
1.20A (6.0W)
0.23A (1.15W)
1.18A (5.9W)
1 second to 255 minutes. Warm reset,
cold reset, or power down.
System reset on undervoltage conditions
Ordering Information
Model
VL-EPM-24SU
VL-EPM-24EU
Processor
Intel Atom Z530P
Intel Atom Z520PT
Speed
1.6 GHz
1.33 GHz
Operating Temp. Cooling
0° to +60°C
Fanless
-40° to +85°C
Fanless
Accessories
Part Number
VL-CKR-TIGER
VL-CBR-1008
VL-CBR-2012
VL-CBR-2014
VL-CBR-4405
VL-CBR-4406
VL-CBR-5012
VL-HDW-105
VL-CBR-1401
VL-CBR-1402
VL-CBR-1603
VL-CBR-2010
VL-CBR-2011
VL-CDD-xxxx
VL-ENCL-5D
VL-F20-xxxx
VL-HDD25-xxx
VL-HDW-106
VL-HDW-108
VL-HDW-201
VL-MM8-xxxx
VL-PS200-ATX
VL-SPX-x
Description
Development cable kit.
Includes bold items below.
ATX power adapter cable
20” 24-bit LVDS flat panel cable (Hirose)
LVDS to VGA adapter board
IDE adapter board
IDE cable
I/O cable set and paddleboard
0.6” standoff package (metric thread)
Cable assembly for (2) SPX modules
Cable assembly for (4) SPX modules
Quad USB transition cable
20” 18-bit LVDS flat panel cable (Hirose)
20” 18-bit LVDS flat panel cable (JAE)
CD-RW / DVD-ROM drive
Development enclosure
Disk on Module (IDE)
2.5” hard drive (IDE)
0.6” standoff package (English thread)
DOM hardware kit (metric thread)
PC/104 module separator tool
DDR2 RAM module
200W ATX-style development power supply
SPX expansion modules
Environmental
Stackable Bus
Other I/O Expansion
RoHS
Operating Temperature
Storage Temperature
Airflow Requirements
Thermal Shock
Humidity
Vibration, Sinusoidal
Sweep
Vibration, Random
Mechanical Shock
PC/104-Plus (PCI, ISA)
VersaLogic SPX interface
RoHS (2002/95/CE) compliant
Model
Operating Temperature
VL-EPM-24SU 0° to +60°C
VL-EPM-24EU -40° to +85°C
-40° to +85°C
Model
Airflow Requirements
VL-EPM-24SU Free air from 0° to +60°C
VL-EPM-24EU 100 LFPM from +60° to +85°C
Memory
Video
System RAM
General
5°C/min. over operating temperature
Less than 95%, noncondensing
MIL-STD-202G, Method 204, Modified Condition A:
2g constant acceleration from 5 to 500 Hz,
20 minutes per axis
MIL-STD-202G, Method 214A, Condition A:
5.35g rms, 5 minutes per axis
MIL-STD-202G, Method 213B, Condition G:
20g half-sine, 11 ms duration per axis
SO-DIMM socket. Up to 2 GB DDR2 SDRAM.
Mass Storage
Network
Interface
Device I/O
* Power specifications represent operation at +25°C with +5V supply running Windows XP
with 2 GB RAM, Ethernet, keyboard, and mouse. Typical power computed as the mean
value of Idle and Maximum power specifications. Maximum power is measured with 95%
CPU utilization.
† Signal lines on this port are TVS protected (enhanced ESD protection)
‡ Power pins on this port are overload protected
Specifications are subject to change without notification. Intel and Atom are trademarks
of Intel Corp. SpeedStep is a registered trademark of Intel Corp. SPX is a trademark of
VersaLogic Corp. All other trademarks are the property of their respective owners.
12/27/11
Software
Integrated high-performance video. Intel GMA
500 graphics core supports advanced 3D
graphics and high-definition video decode.
VRAM
Up to 256 MB shared DRAM
OEM Flat Panel Interface 18/24-bit LVDS interface. CMOS-selectable TFT
panel types. Up to 1280 x 1024 (24 bits) @ 85 Hz.
Desktop Display Interface Analog output (VGA) via optional adapter cable
†
Hard Drive
IDE controller (ATA-6, UDMA/100) supports two
IDE devices
Flash
Right angle IDE Disk on Module (DOM) site with
retention screw
Ethernet
†
Autodetect 10BaseT / 100BaseTX / 1000BaseT port
Network Boot Option
Intel boot agent (downloadable) supports PXE
protocol. Argon Managed Boot Agent (optional
with royalty fee) supports PXE, RPL, NetWare,
TCP/IP (DHCP, BOOTP) remote boot protocols.
USB
† ‡
Seven USB 2.0/1.1 ports (one client, six host)
COM 1 / 2 / 3 / 4
†
RS-232/422/485 selectable. 16C550 compatible.
460 Kbps.
Audio
Intel High Definition Audio (HDA) compatible.
Stereo line in / out.
BIOS
Phoenix Technologies Embedded BIOS with OEM
enhancements. Field reprogrammable. Support
for USB boot. User-configurable CMOS defaults.
Sleep Mode
ACPI 2.0 compatible
Operating Systems
Compatible with most x86 operating systems
including Windows, Windows Embedded, Linux,
VxWorks, and QNX
VersaLogic Corporation
•
4211 West 11th Ave., Eugene, OR 97402
•
(541) 485-8575
•
Fax (541) 485-5712
•
info@VersaLogic.com
•
www.VersaLogic.com
