LMLP05A6M4R7DTAS datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LMLP05A6M4R7DTAS

LMLP05A6M4R7DTAS: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, Ferrite-Core, 2022,; CategoryPassive components inductor; File Size256KB，7 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LMLP05A6M4R7DTAS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LMLP05A6M4R7DTAS	-	-	View	Buy Now

LMLP05A6M4R7DTAS Overview

General Purpose Inductor, 4.7uH, 20%, Ferrite-Core, 2022,

LMLP05A6M4R7DTAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	2022
Reach Compliance Code	compliant
ECCN code	EAR99

Preview

Download Datasheet

View All

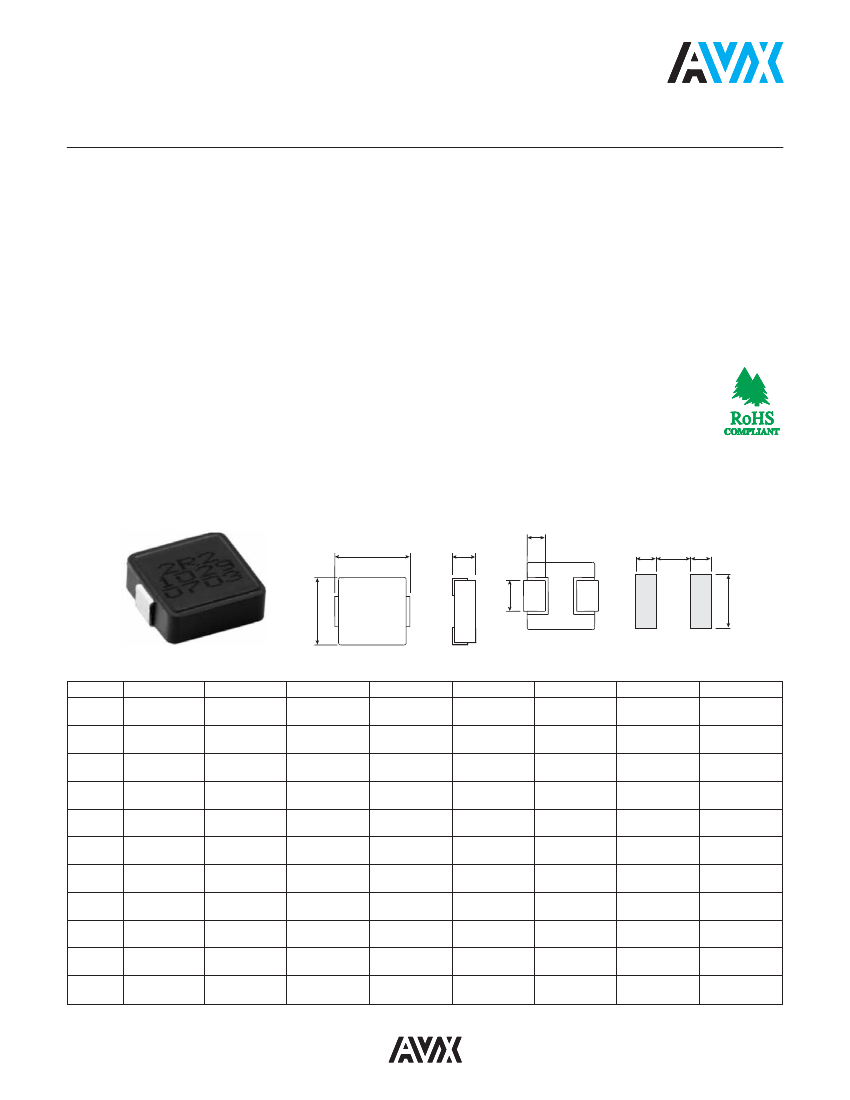

LMax Low Profile/High Current

Power Inductor

LMLP Series – Style D

FEATURES

• Large Current Rating

• Lower Temperature Rise

• Low Profile

• Available on tape and reel

INDUCTANCE AND RATED

CURRENT RANGES

• 0405

• 05A6

• 0506

• 0707

• 07A7

• 07B7

• 07C7

• 1011

• 13A3

• 1313

• 13B3

0.1 μH ~ 3.3 μH

0.1 μH ~ 4.7 μH

0.1 μH ~ 10 μH

0.56 μH ~ 10 μH

0.19 μH ~ 47 μH

0.1 μH ~ 10 μH

22 ~ 4 A

45 ~ 5 A

27 ~ 8.2 A

40 ~ 8 A

50 ~ 7 A

60 ~ 7 A

12 ~ 4.5 A

90 ~ 3 A

84 ~ 14 A

118 ~ 16 A

120 ~ 15.5 A

APPLICATIONS

• Personal Computers

• Servers

• High Current POL Converters

• Low Profile High Current Power Supplies

• DC/DC Converters

• DC/DC Converters for FPGA

• All test data taken at 25ºC

• Operating Temperature Range:

-55°C ~ +155°C

• I

SAT

: The current that causes an inductance

drop of approximately 25% (30% on 0405 size).

• I

: DC Current that causes an approximate ΔT of 40ºC.

DIMENSIONS

Recommended

Land Pattern

mm (inches)

Type

0405

05A6

0506

0707

07A7

07B7

07C7

1011

13A3

1313

13B3

4.10±0.50

(0.161±0.020)

5.00±0.50

(0.197±0.020)

5.00±0.50

(0.197±0.020)

6.80 max

(0.278 max)

6.80 max

(0.278 max)

6.80 max

(0.278 max)

6.80 max

(0.278 max)

10.4 max

(0.409 max)

13.0 max

(0.512 max)

13.0 max

(0.512 max)

13.0 max

(0.512 max)

4.50±0.50

(0.177±0.020)

5.50±0.50

(0.217±0.020)

5.50±0.50

(0.217±0.020)

7.50 max

(0.295 max)

7.50 max

(0.295 max)

7.50 max

(0.295 max)

7.50 max

(0.295 max)

11.5 max

(0.453 max)

14.2 max

(0.559 max)

14.2 max

(0.559 max)

14.2 max

(0.559 max)

2.10

(0.083)

2.00

(0.083)

3.00

(0.118)

2.00

(0.083)

2.50

(0.098)

3.00

(0.118)

5.00

(0.197)

4.00

(0.157)

4.00

(0.157)

5.00

(0.197)

6.50

(0.256)

0.80±0.50

(0.031±0.020)

1.20±0.50

(0.047±0.020)

1.20±0.50

(0.047±0.020)

1.60±0.50

(0.063±0.020)

1.60±0.50

(0.063±0.020)

1.60±0.50

(0.063±0.020)

1.60±0.50

(0.063±0.020)

2.00±0.50

(0.079±0.020)

2.30±0.50

(0.091±0.020)

2.30±0.50

(0.091±0.020)

2.30±0.50

(0.091±0.020)

1.50±0.50

(0.059±0.020)

1.50±0.50

(0.059±0.020)

1.50±0.50

(0.059±0.020)

2.90±0.50

(0.114±0.020)

2.90±0.50

(0.114±0.020)

2.90±0.50

(0.114±0.020)

2.90±0.50

(0.114±0.020)

2.90±0.50

(0.114±0.020)

3.80±0.50

(0.150±0.020)

3.80±0.50

(0.150±0.020)

3.80±0.50

(0.150±0.020)

1.50

(0.059)

2.00

(0.079)

2.00

(0.079)

2.50

(0.098)

2.50

(0.098)

2.50

(0.098)

2.50

(0.098)

3.50

(0.138)

2.90

(0.114)

2.90

(0.114)

2.90

(0.114)

2.50

(0.098)

3.00

(0.118)

3.00

(0.118)

3.70

(0.146)

3.70

(0.146)

3.70

(0.146)

3.70

(0.146)

6.00

(0.236)

7.90

(0.311)

7.90

(0.311)

7.90

(0.311)

2.20

(0.087)

2.50

(0.098)

2.50

(0.098)

3.50

(0.138)

3.50

(0.138)

3.50

(0.138)

3.50

(0.138)

4.00

(0.157)

5.00

(0.197)

5.00

(0.197)

5.00

(0.197)
