8FEL2-BTN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8FEL2-BTN

Preview

8FEL2-BTN: DescriptionCard Edge Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size113KB，3 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

8FEL2-BTN Overview

Card Edge Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT

8FEL2-BTN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	TOP ENTRY
Body/casing type	PLUG
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

FEL

CONNECTOR

SQW

91

JS

T

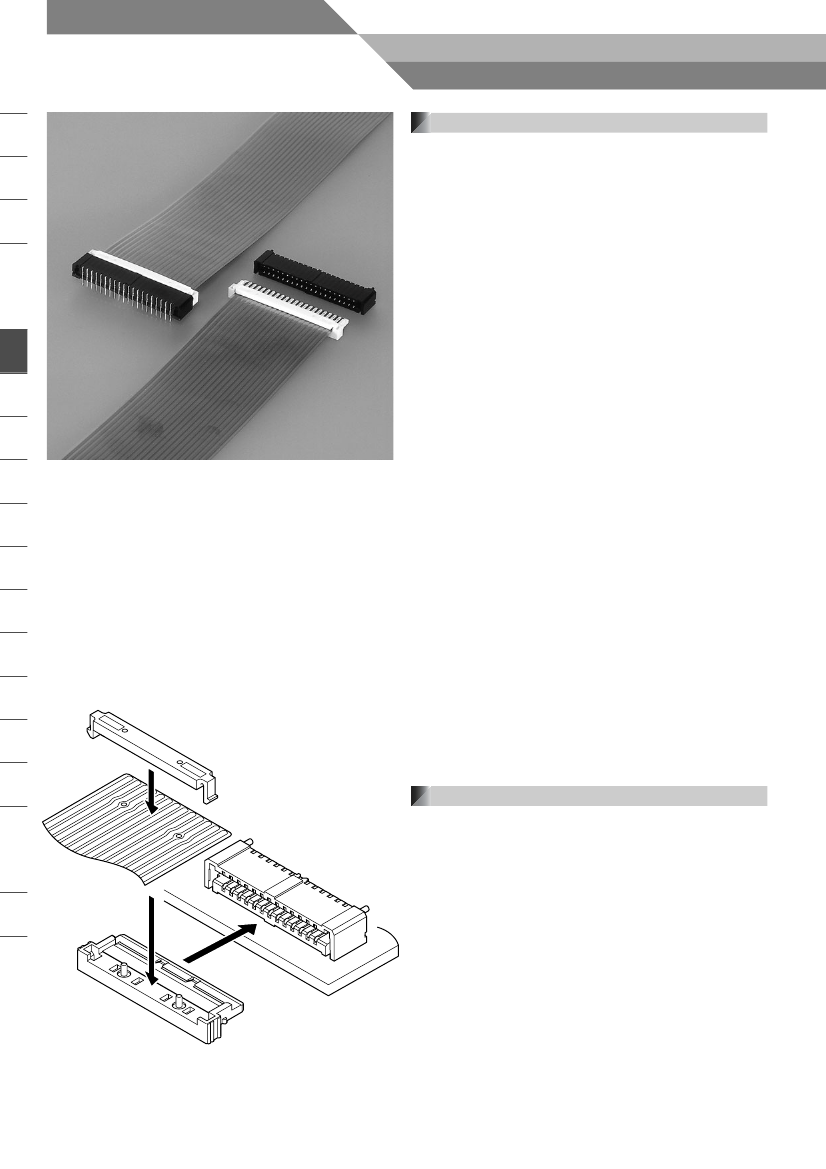

Connectors for FPC and FFC

Features

●The

FEL connector passed various types of durability

tests for automobile

High contact force ensures contact reliability and allows stability

of performance in various applications.

SQF SQSK SHUNT RING

FEL

FOX

CN

●Secure

mating process

A FPC is fixed by a plug housing and a retainer and then mated

to a male connector.

It prevents problems such as inverse, incomplete insertion,

which occur in the conventional ZIF type connector.

●Multi-entry

type

In addition to top entry type, side normal type whose FPC is

positioned with its mating surface facing upward and side

reverse type whose FPC is positioned with its mating surface

facing down are available for mounting designs.

The FEL connector is 2.0mm pitch FPC connector

suitable for environments in automotive compartment.

The FEL connector is different from the conventional

ZIF type connector, reliable connection is greatly

improved by using a general housing lock for an

automotive connector.

EA1

BIC

WPZ

ASG

HCC

WIC

ATSS

SAC JUNCTION BOX INDEX

JS

T

Specifications

¡Current

rating: 0.6 to 1.5A AC, DC

(When specific FPC pattern is used.)

¡Voltage

rating: 200V AC, DC

¡Temperature

range: -40°C to +90°C

(including temperature rise in applying

electrical current)

¡Contact

resistance: Initial value/10mΩ max.

After environmental testing/50mΩ max.

¡Insulation

resistance: 100MΩ min.

¡Withstanding

voltage: 1,000V AC/minute

¡Applicable

FPC: Lead pitch/2.0mm

Lead width/1.2mm

Mating part thickness/0.14±0.02mm

¡Applicable

PC board: Thickness/1.6mm

Hole size/0.8±0.1mm (Through-hole)

∗

Compliant with ELV/RoHS.

∗

Contact JST for details.

8FEL2-BTN Related Products

	8FEL2-BTN	13FEL2-SRTN	13FEL2-STN	20FEL3-SRTN	20FEL3-STN	20FEL2-BTN	8FEL2-SRTN	8FEL2-STN	13FEL2-BTN
Description	Card Edge Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 20 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT	Card Edge Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknow
Other features	TOP ENTRY	SIDE ENTRY	SIDE ENTRY	SIDE ENTRY	SIDE ENTRY	TOP ENTRY	SIDE ENTRY	SIDE ENTRY	TOP ENTRY
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	13	13	20	20	20	8	8	13
Base Number Matches	-	1	1	1	1	1	-	-	-
