M83-LFD1F4N18-0000-000: DescriptionBoard Connector, 18 Contact(s), 3 Row(s), Female, Crimp Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size884KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M83-LFD1F4N18-0000-000 Overview

Board Connector, 18 Contact(s), 3 Row(s), Female, Crimp Terminal, ROHS COMPLIANT

M83-LFD1F4N18-0000-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M83-LF
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	CRIMP
Total number of contacts	18

Preview

Download Datasheet

View All

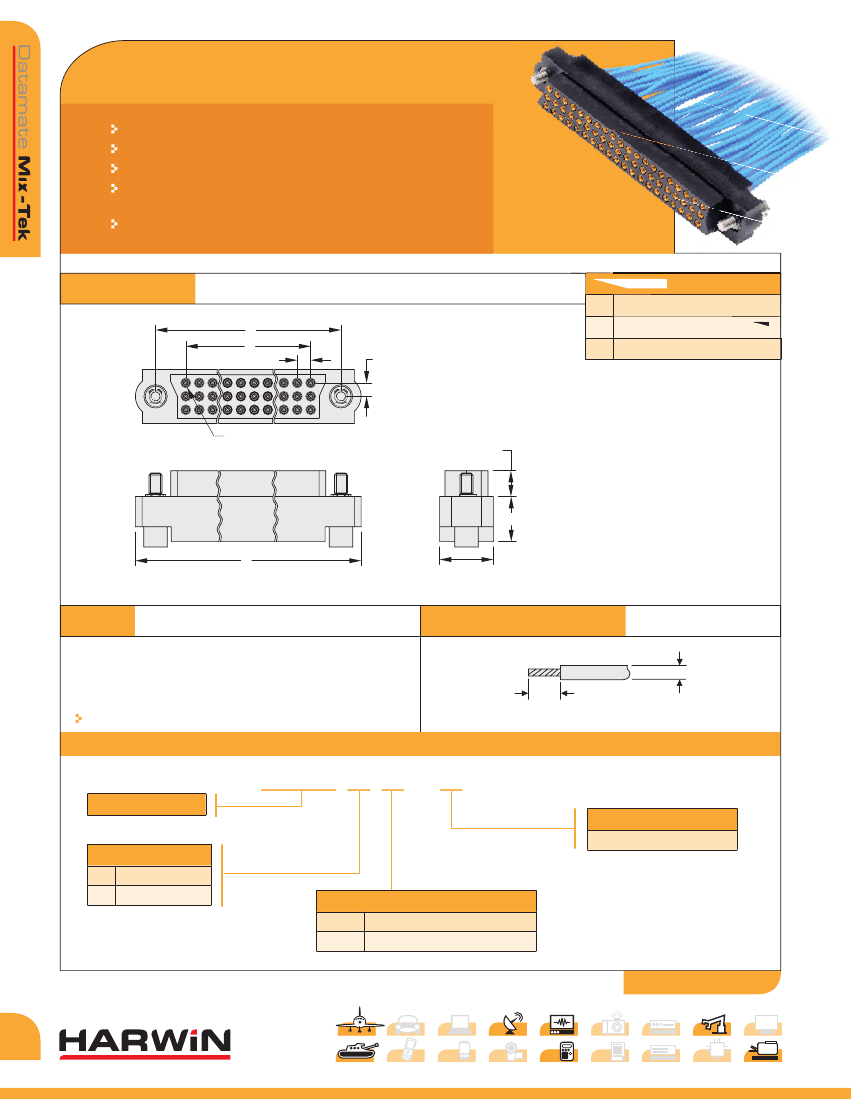

M83 Datamate Connectors

Female Crimp

Choice of compatible jackscrews.

All contacts are gold finish for full RoHS compliance.

See page 71 for configurations including special contacts.

Contact datamate@harwin.com for alternative

contact configurations.

Spare contacts are available – see page 16.

FeMale CriMP

C

B

2.00

caLcULatioN

a

B

c

B + 15

(Total No. of contacts – 3) x 2/3

B+9

No. 1 contact

3.85

6.70

A

8.00

Diagram shown with Jackscrew F2 assembled.

tools

HM1288: M83LFXXFXNXX-0000-000

Wire striPPing Details

Ø1.10 max.

recommended crimp tool

– M22520/2-01

Positioner

– T5747

contact insertion/removal tool

– Z80-280

See pages 77 to 79

instruction sheets available at www.harwin.com/downloads/instructions

2.00 Nominal

HoW to orDer

m83 – LF XX XX N XX – 0000 – 000

SerieS coDe

totaL No. oF coNtactS

18,27,36,51,54,60,72,96

crimPS

c1

Small Bore

D1

Large Bore

JackScreW

00

Fx

No Jackscrew

Female Jackscrews – see page 64

All dimensions in mm.

www.harwin.com
