DSA9005
Silicon PNP epitaxial planar type
For general amplification
Complementary to DSC9005
DSA5005 in SSMini3 type package
Features
Low collector-emitter saturation voltage V
CE(sat)
Contributes to miniaturization of sets, reduction of component count.
High forward current transfer ratio h
FE
with excellent linearity
Eco-friendly Halogen-free package
Package
Code
SSMini3-F3-B
Package dimension clicks here.→
Click!
Packaging
DSA9005×0L Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Peak collector current
Collector power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
stg
Rating
–60
–50
–6
–200
–300
125
150
–55 to +150
Unit
V
V
V
mA
mA
mW
°C
°C
Name
Pin
1. Base
2. Emitter
3. Collector
Marking Symbol: A3
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
*
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
(Common base, input open circuited)
Symbol
V
CEO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(sat)
f
T
C
ob
Conditions
I
C
= –100
mA,
I
B
= 0
V
CB
= –60 V, I
E
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –6 V, I
C
= –1 mA
V
CE
= –6 V, I
C
= – 0.1 mA
I
C
= –100 mA, I
B
= –10 mA
V
CE
= –6 V, I
C
= –10 mA
V
CB
= –6 V, I
E
= 0, f = 1 MHz
150
5.0
150
90
– 0.3
Min
–50
– 0.1
– 0.1
390
Typ
Max
Unit
V
mA
mA
V
MHz
pF
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *: Rank classification
Code
Rank
h
FE1
Marking Symbol
R
R
150 to 270
A3R
S
S
200 to 390
A3S
0
No-rank
150 to 390
A3
Product of no-rank is not classified and have no marking symbol for rank.
Publication date: February 2012
Ver. AED
1
This product complies with the RoHS Directive (EU 2002/95/EC).
DSA9005

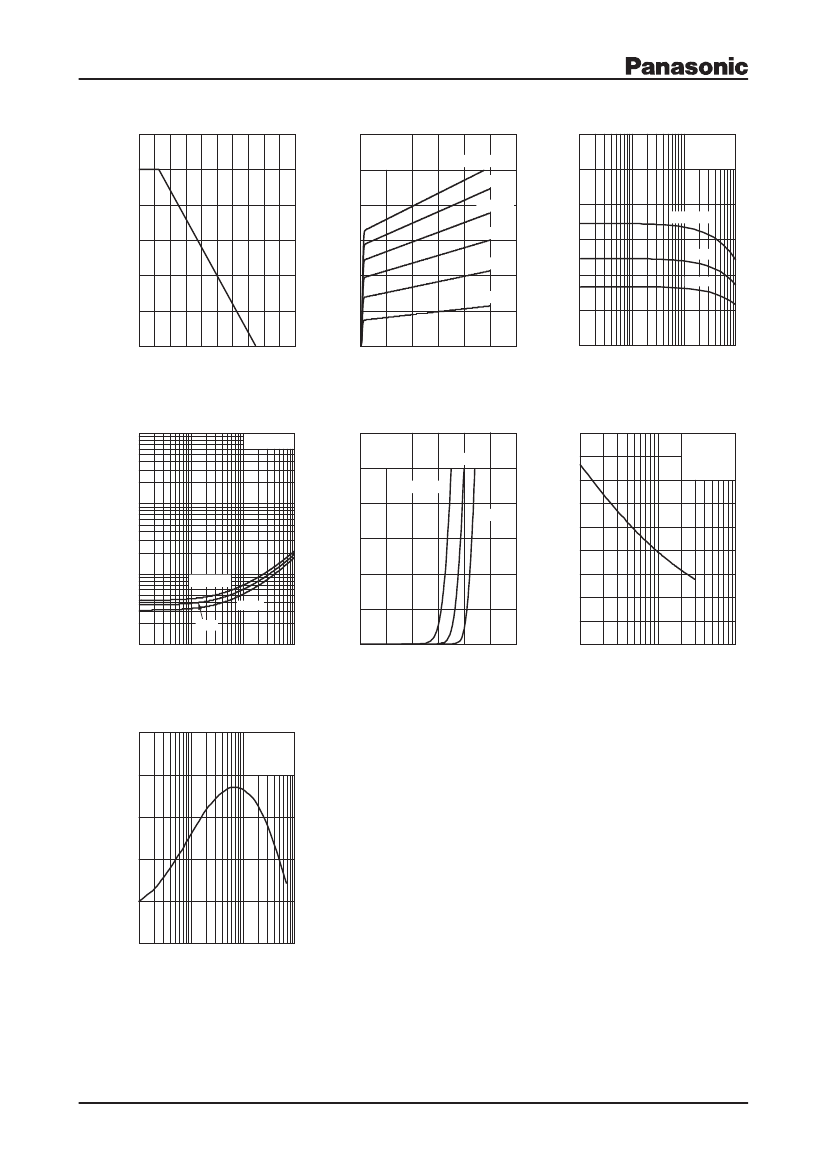

DSA9005_PC-Ta
DSA9005_IC-VCE
DSA9005_hFE-IC
P
C
T
a
150
−120
T
a
=
25°C
125
100
75
50
25
0
−100
I
C
V
CE
600
I
B
= −600 µA
−500 µA
−400 µA
−300 µA
−200 µA
−40
−100 µA
−20
0
h
FE
I
C
V
CE
= −10
V
Collector power dissipation P
C
(mW)
Forward current transfer ratio h
FE
500
400
300
25°C
200
100
0
−10
−1
−30°C
Collector current I
C
(mA)
−80
−60
T
a
=
85°C
0
40
80
120
160
200
0
−2
−4
−6
−8
−10
−12
−1
−10
−10
2
Ambient temperature T
a
(
°C
)
DSA9005_VCEsat-IC
Collector-emitter voltage V
CE
(V)
DSA9005_IC-VBE
Collector current I
C
(mA)
DSA9005_Cob-VCB
V
CE(sat)
I
C
Collector-emitter saturation voltage V
CE(sat)
(V)
−10
I
C
/ I
B
= 10
−120
V
CE
= −10
V
−100
I
C
V
BE
Collector output capacitance
(Common base, input open circuited) C
ob
(pF)
25°C
4.0
C
ob
V
CB
I
E
= 0
f = 1 MHz
T
a
= 25°C
Collector current I
C
(mA)
T
a
=
85°C
−80
−60
−40
−20
0
−30°C
−1
3.0
2.0
−10
−1
T
a
=
85°C
−30°C
25°C
−1
−10
−10
2
1.0
−10
−2
−10
−1
0
−
0.2
−
0.4
−
0.6
−
0.8
−1.0 −1.2
0
−1
−10
−10
2
Collector current I
C
(mA)
DSA9005_fT-IC
Base-emitter voltage V
BE
(V)
Collector-base voltage V
CB
(V)
f
T
I
C
250
V
CE
=
−10
V
T
a
=
25°C
Transition frequency f
T
(MHz)
200
150
100
50
0
−10
−1
−1
−10
−10
2
Collector current I
C
(mA)
2
Ver. AED
