AM9080ADM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AM9080ADM

AM9080ADM: DescriptionMicroprocessor, 8-Bit, 2.08MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size333KB，8 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM9080ADM Overview

Microprocessor, 8-Bit, 2.08MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40

AM9080ADM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	2.08 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
length	52.324 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	1
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5,12 V
Certification status	Not Qualified
RAM (number of words)	0
Filter level	MIL-STD-883 Class C
Maximum seat height	5.715 mm
speed	2.08 MHz
Maximum slew rate	60 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

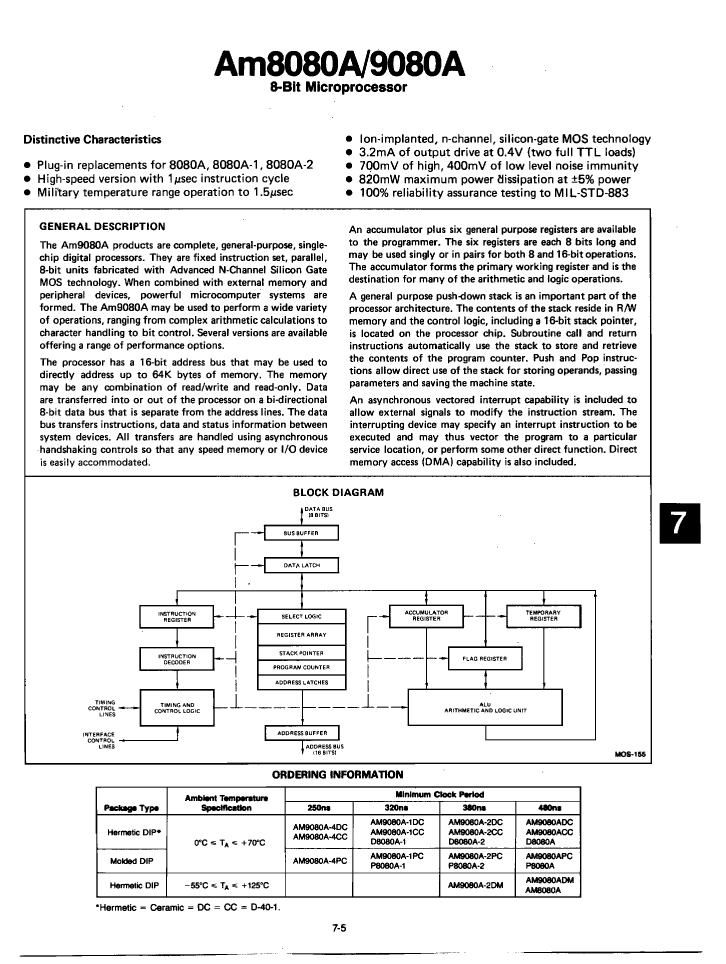

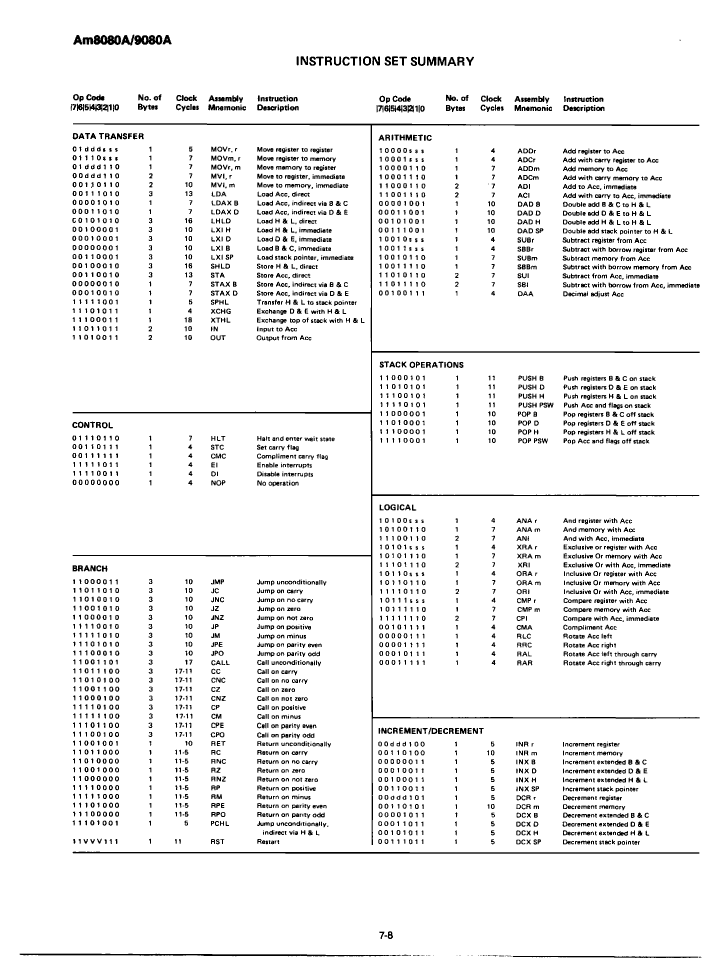

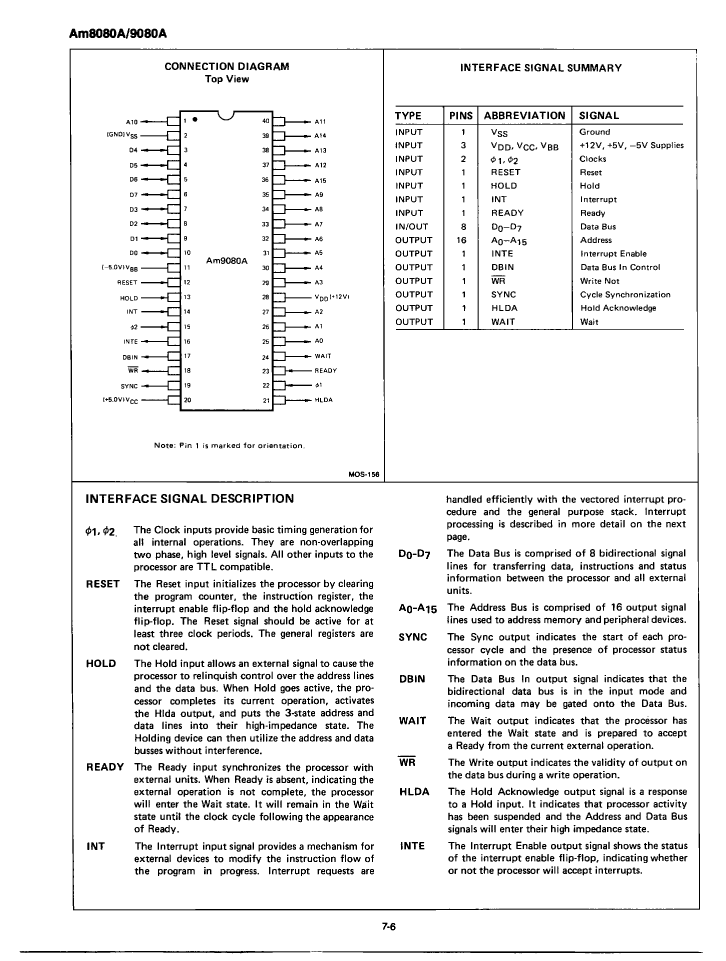

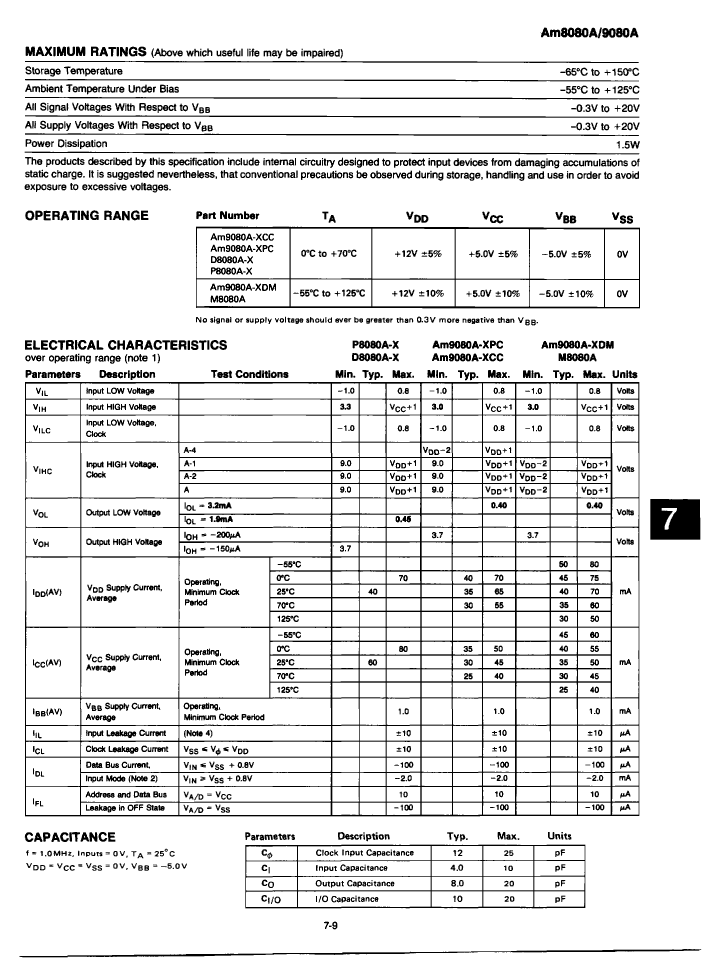

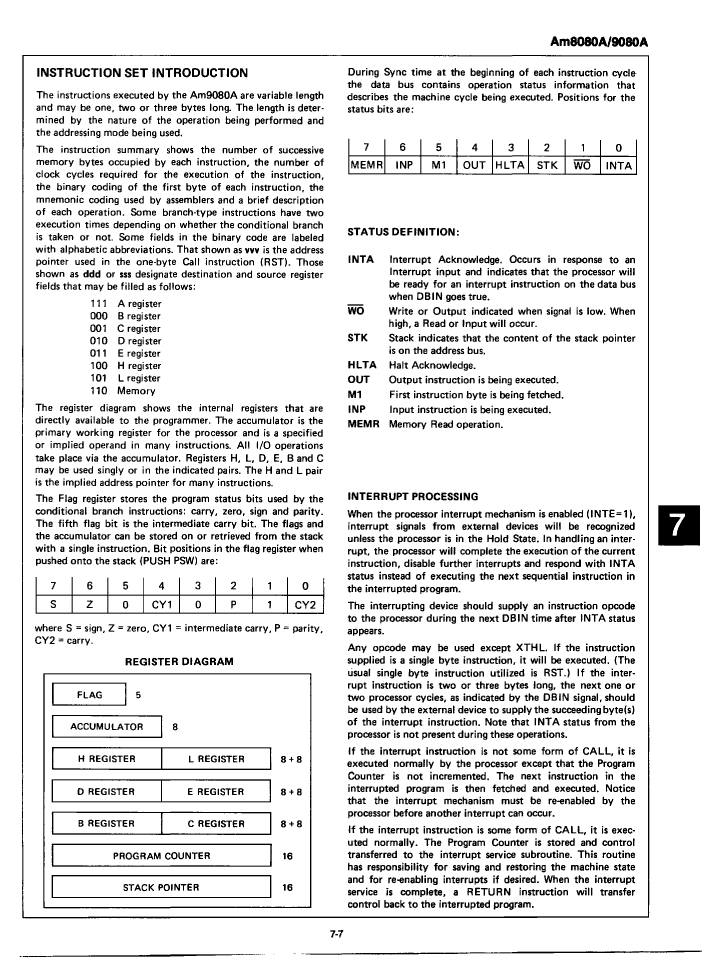

Preview

Download Datasheet

View All

AM9080ADM Related Products

	AM9080ADM	AM9080A-4CC	AM9080A-4DC	AM9080A-1CC	AM9080ACC	AM9080A-2CC	AM9080A-2DM	AM9080A-4PC
Description	Microprocessor, 8-Bit, 2.08MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 16-Bit, 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 3.125MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.08MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 16-Bit, 4MHz, NMOS, PDIP40, PLASTIC, DIP-40
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP,	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	16	8	8	8	8	16
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	2.08 MHz	4 MHz	4 MHz	3.125 MHz	2.08 MHz	2.63 MHz	2.63 MHz	4 MHz
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-PDIP-T40
length	52.324 mm	52.324 mm	52.324 mm	52.324 mm	52.324 mm	52.324 mm	52.324 mm	52.451 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of external interrupt devices	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.08 mm
speed	2.08 MHz	4 MHz	4 MHz	3.125 MHz	2.08 MHz	2.63 MHz	2.63 MHz	4 MHz
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	-	AMD	AMD	AMD	AMD	AMD
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	-	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5,12 V	+-5,12 V	+-5,12 V	-	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V
Maximum slew rate	60 mA	50 mA	-	50 mA	50 mA	50 mA	60 mA	50 mA
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
