51777-003LUB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51777-003LUB

51777-003LUB: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size228KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51777-003LUB Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle

51777-003LUB Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.47 inch
subject depth	0.82 inch
body length	2.34 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	0.7 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	7.1168 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51777
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.154 inch
Terminal pitch	6.35 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	2.224 N

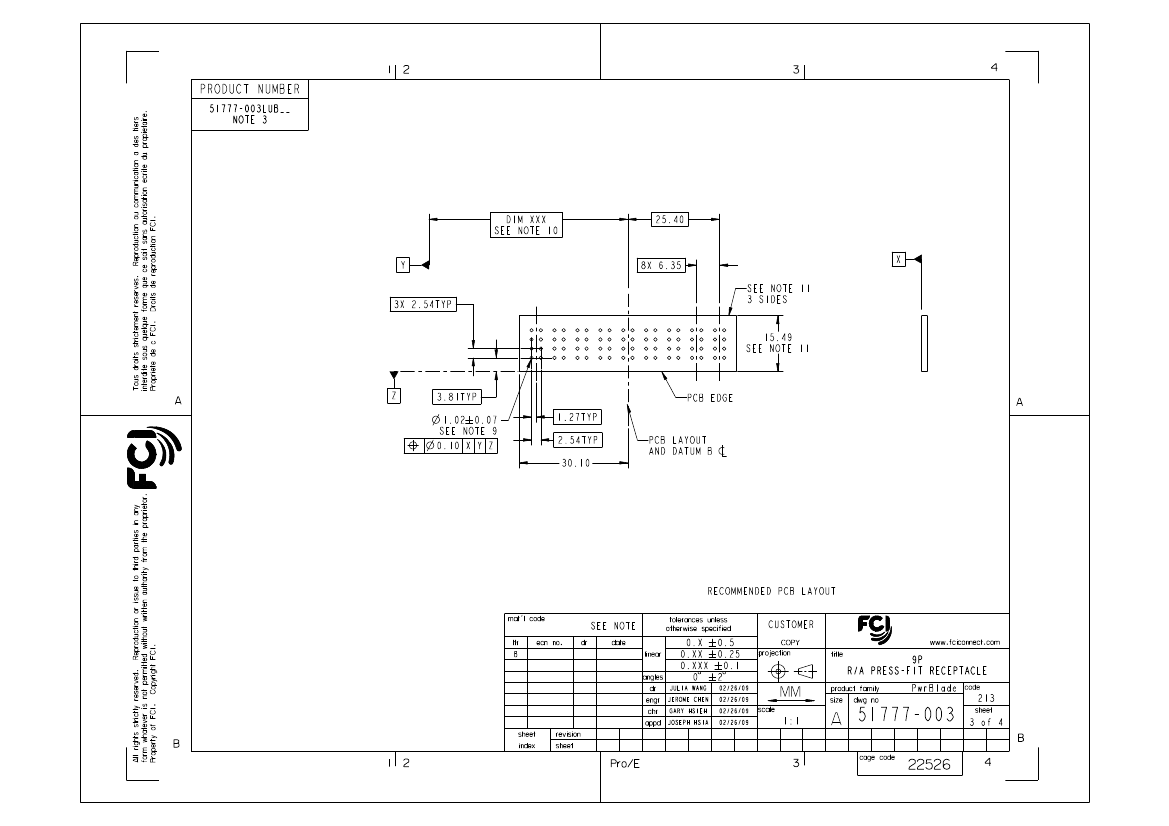

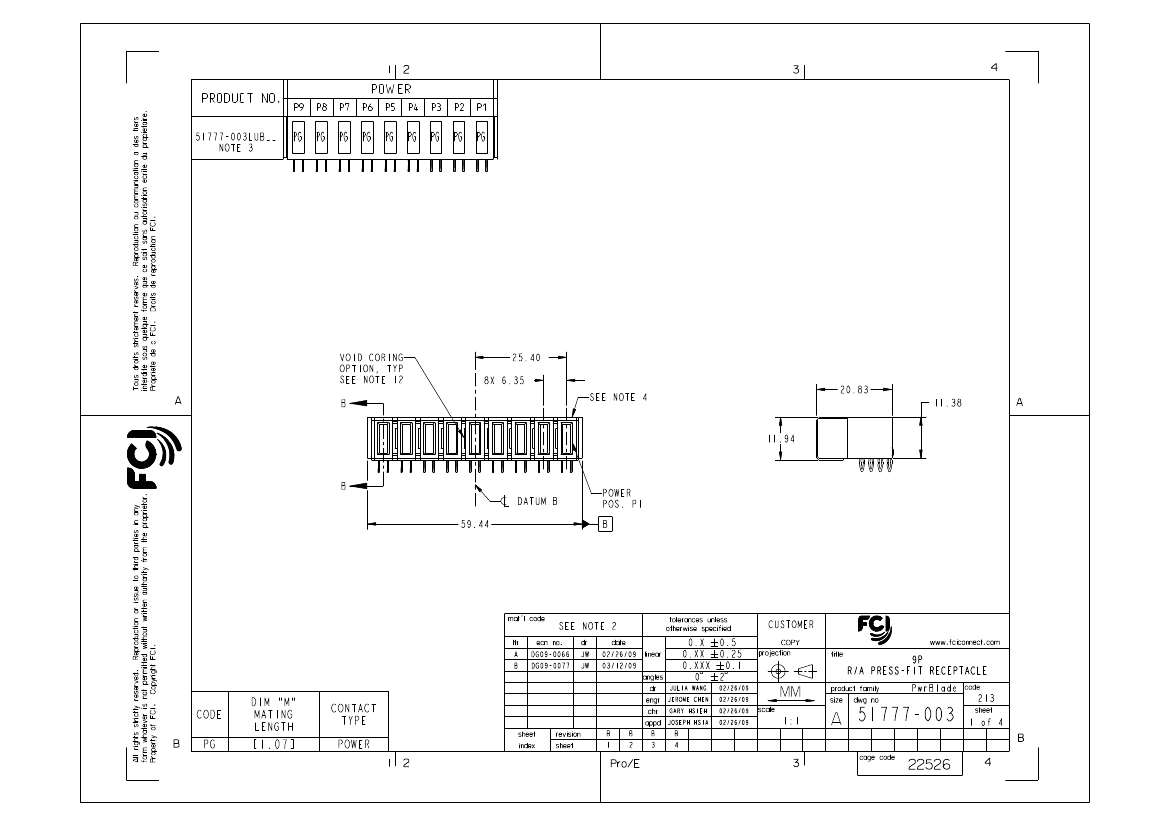

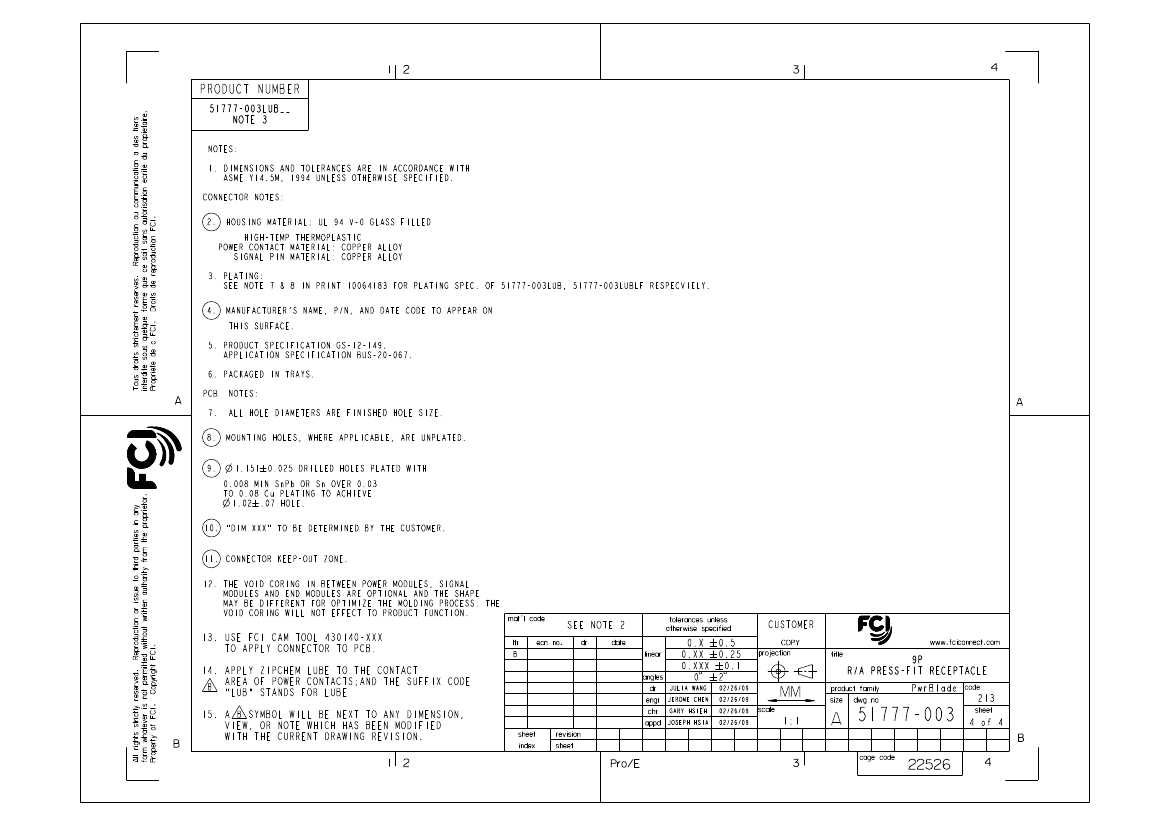

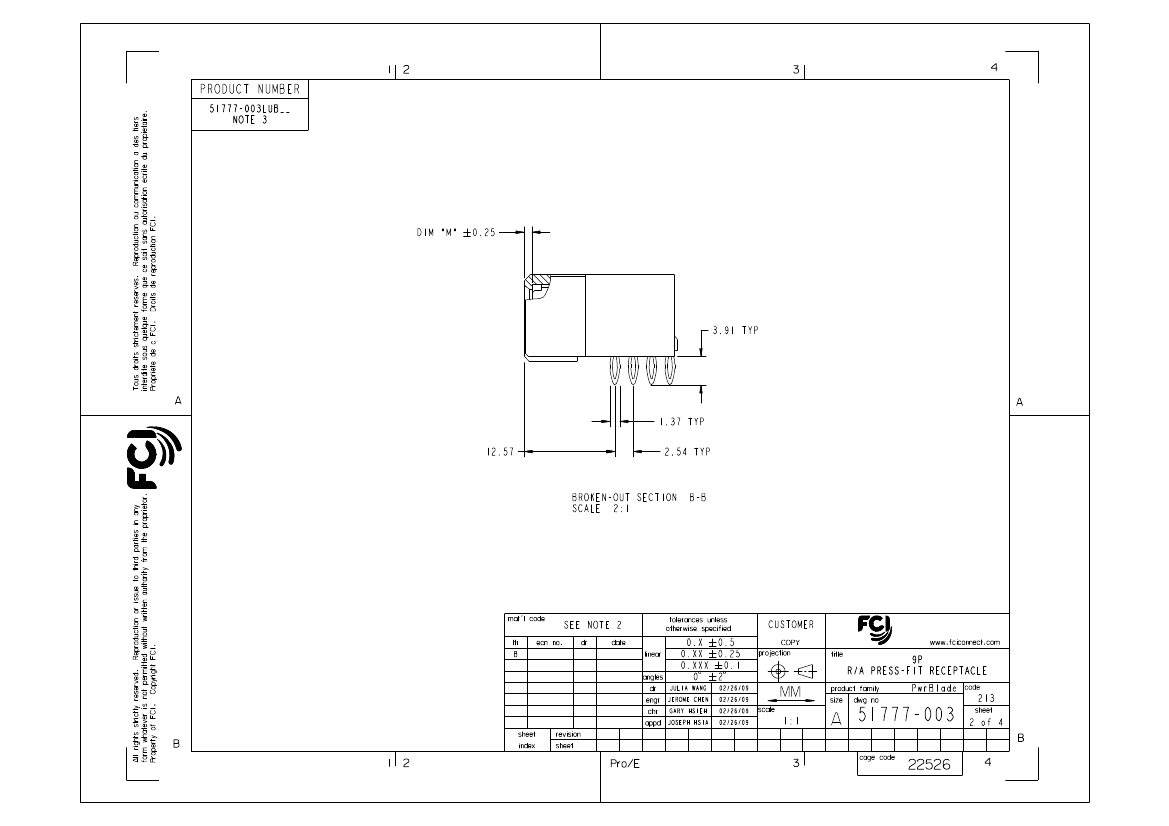

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Dec 20, 2010

51777-003LUB Related Products

	51777-003LUB	51777-003LUBLF	51776-003LUBLF
Description	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 9 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
body width	0.47 inch	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch	0.82 inch
body length	2.34 inch	2.34 inch	2.34 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P9	S0P9	S0P9
Contact completed and terminated	TIN/LEAD OVER NICKEL	NOT APPLICABLE	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	MALE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
Contact resistance	0.7 mΩ	0.7 mΩ	0.7 mΩ
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	7.1168 N	7.1168 N	7.1168 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Mixed contacts	NO	NO	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	125 °C	125 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.154 inch	0.154 inch	0.154 inch
Termination type	PRESS FIT	PRESS FIT	SOLDER
Total number of contacts	9	9	9
Evacuation force-minimum value	2.224 N	2.224 N	2.224 N
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Manufacturer's serial number	51777	-	51776
Number of rows loaded	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	6.35 mm	6.35 mm	-
UL Flammability Code	94V-0	94V-0	-
Is it Rohs certified?	-	conform to	conform to
