85840-8

Description
HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

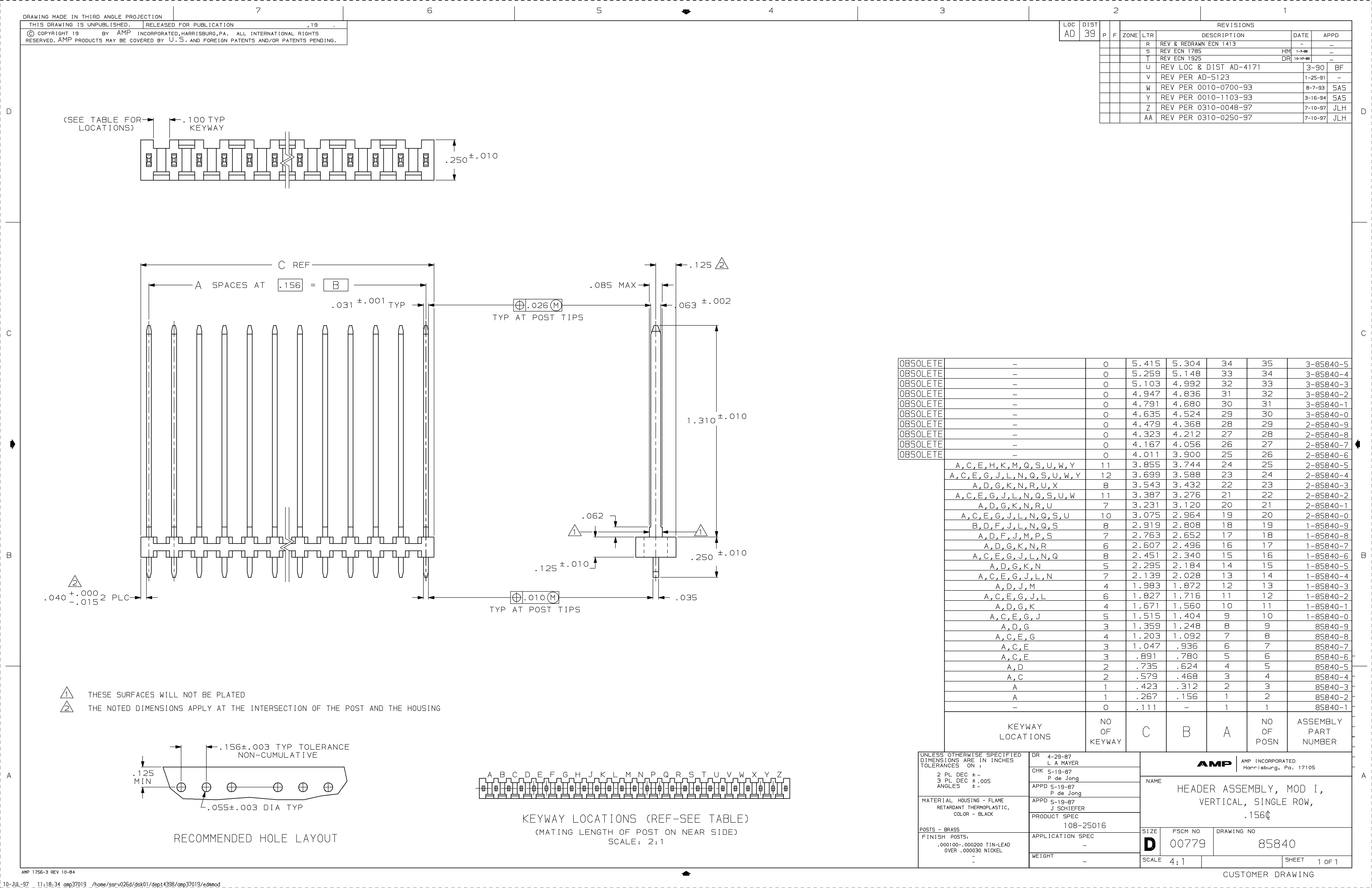

85840-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK

85840-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresNUMBER OF KEYWAY=4
body width0.25 inch
subject depth0.125 inch
body length1.203 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1200VAC V
Durability75 Cycles
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number85840
Plug contact pitch0.156 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature60 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
Plating thickness100u inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value.278 N
