MISC-140M01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MISC-140M01

MISC-140M01: DescriptionInd,Iron Oxide,14uH,20% +Tol,20% -Tol; CategoryPassive components inductor; File Size78KB，1 Pages; ManufacturerFastron; Environmental Compliance

Download Datasheet Parametric Compare View All

MISC-140M01 Overview

Ind,Iron Oxide,14uH,20% +Tol,20% -Tol

MISC-140M01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fastron
Reach Compliance Code	unknown
core material	Iron Oxide
Nominal inductance(L)	14 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.8 mm
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	5 mm
Package length	12 mm
Package form	Axial
series	MISC
Tolerance	20%

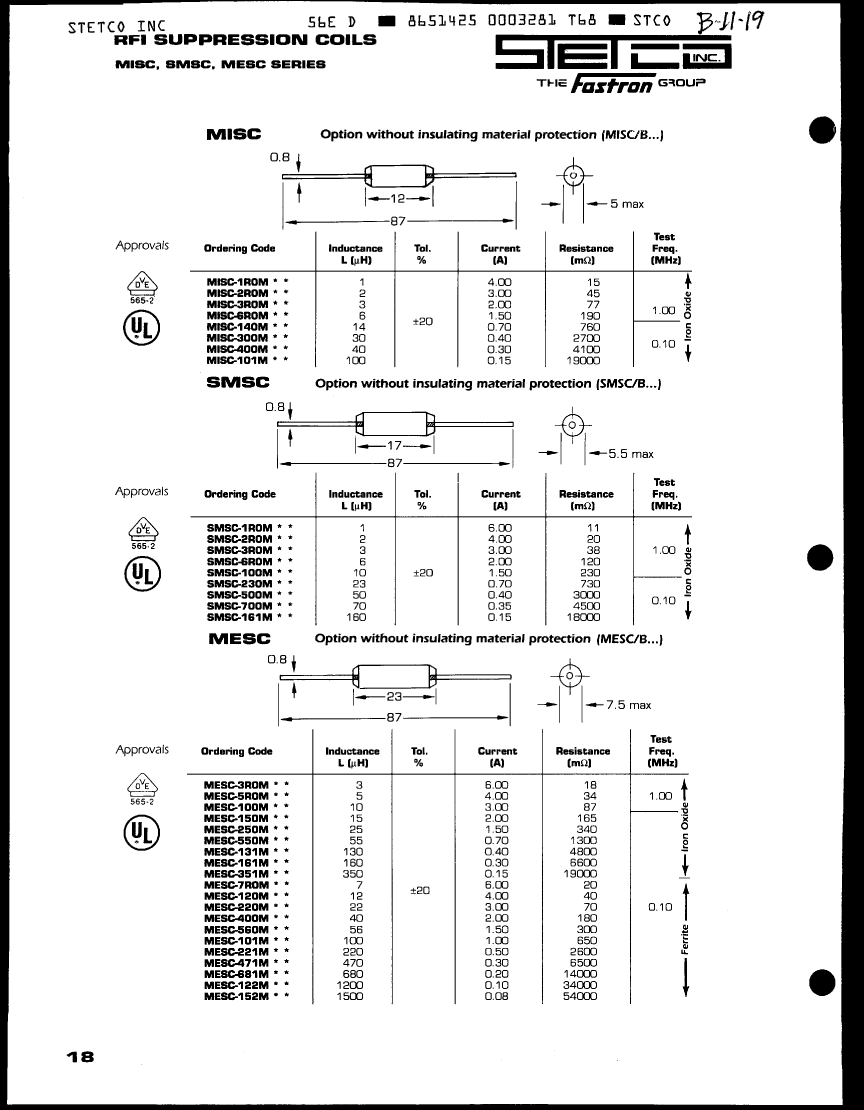

Preview

Download Datasheet

View All

MISC-140M01 Related Products

	MISC-140M01	MISC-1R0M11	MISC-101M11	MISC-140M11	MISC-2R0M01	MISC-2R0M11	MISC-300M11	MISC-300M01	MISC-400M11
Description	Ind,Iron Oxide,14uH,20% +Tol,20% -Tol	General Purpose Inductor, 1uH, 20%, Iron Oxide-Core,	General Purpose Inductor, 100uH, 20%, Iron Oxide-Core,	General Purpose Inductor, 14uH, 20%, Iron Oxide-Core,	General Purpose Inductor, 2uH, 20%, Iron Oxide-Core	General Purpose Inductor, 2uH, 20%, Iron Oxide-Core,	General Purpose Inductor, 30uH, 20%, Iron Oxide-Core,	Ind,Iron Oxide,30uH,20% +Tol,20% -Tol	General Purpose Inductor, 40uH, 20%, Iron Oxide-Core,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant
core material	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide	Iron Oxide
Nominal inductance(L)	14 µH	1 µH	100 µH	14 µH	2 µH	2 µH	30 µH	30 µH	40 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Package length	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
series	MISC	MISC	MISC	MISC	MISC	MISC	MISC	MISC	MISC
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Base Number Matches	-	1	1	1	1	1	-	-	-
