52808-2790 datasheet, PDF - EEWORLD Datasheet

52808-2790: DescriptionCard Edge Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, White Insulator; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

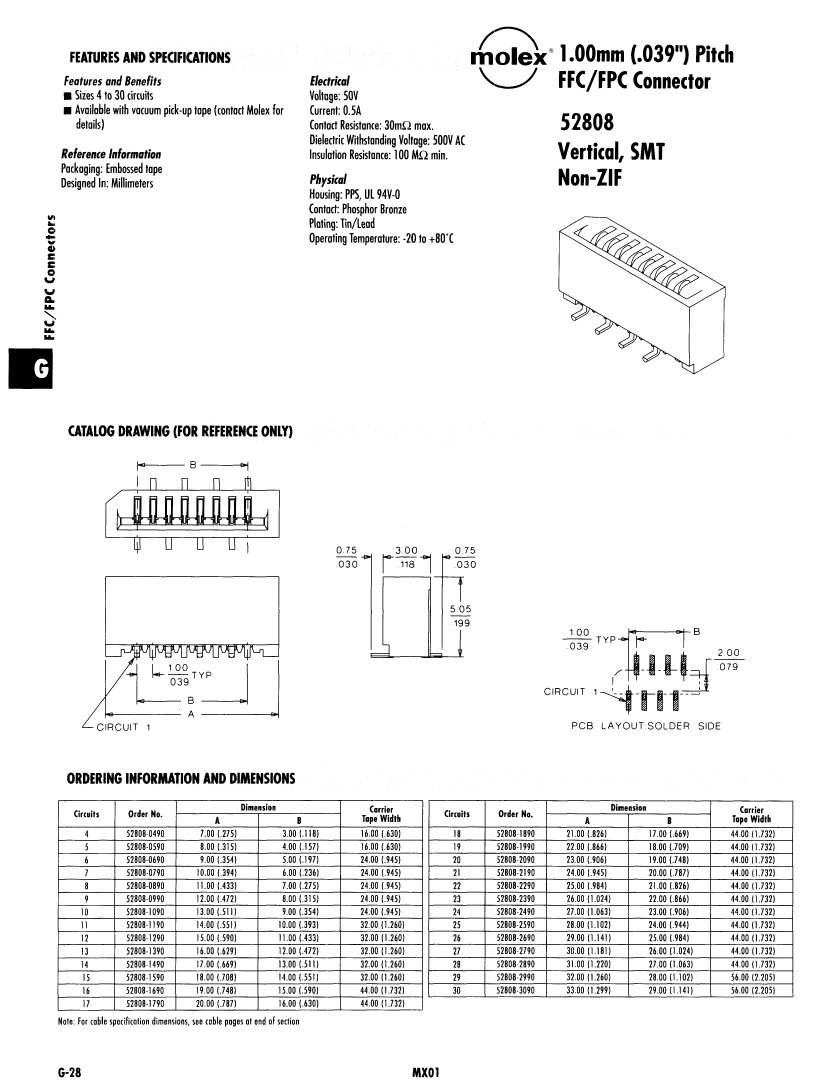

Download Datasheet Parametric View All

52808-2790 Overview

Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, White Insulator

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
body width	0.118 inch
subject depth	0.201 inch
body length	1.181 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.556 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
UL Flammability Code	94V-0
