3001-6124-02: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size1010KB，2 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric Compare View All

3001-6124-02 Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max

3001-6124-02 Parametric

Parameter Name	Attribute value
Maker	XMA Corp.
Reach Compliance Code	compliant
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

N

Terminations

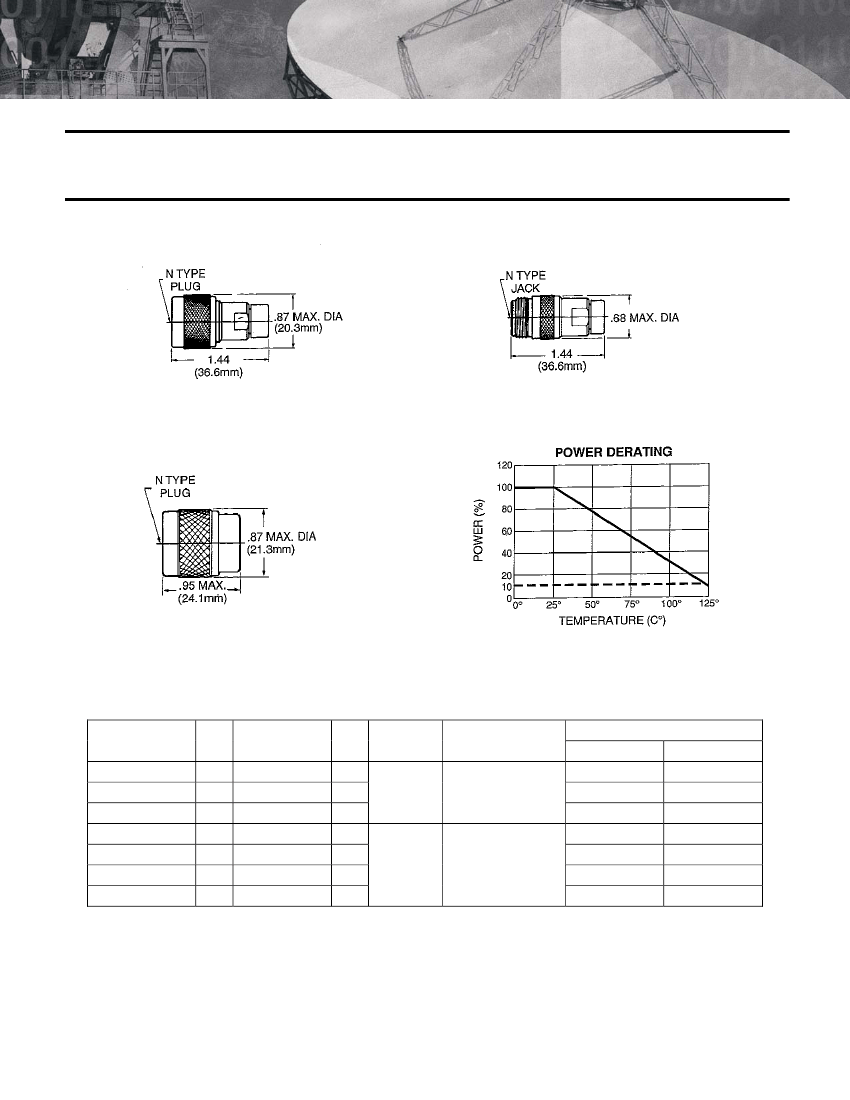

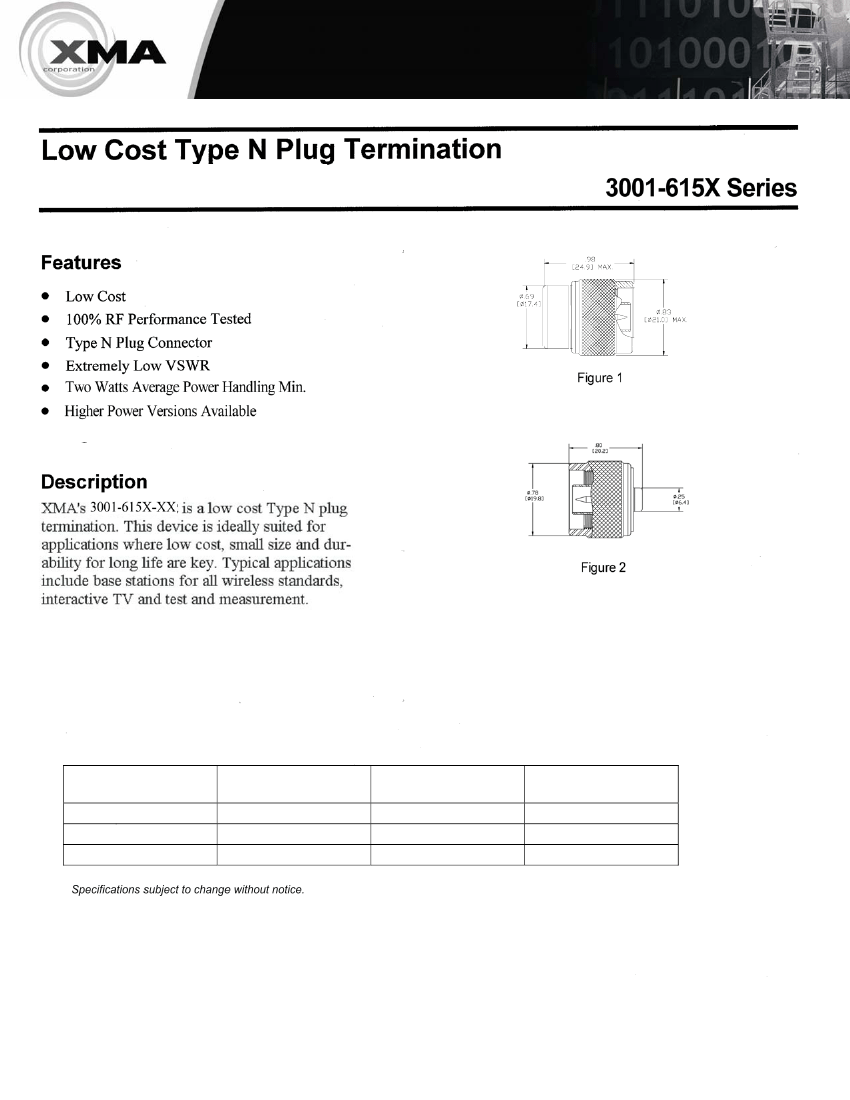

Figure 1

Figure 2

3001

Series

Figure 3

All

Type N

standard model terminations are 50 ohm

o

and are derated linearly to 10% power at 125 C.

o

Operating temperature range is –54 C to +125 C.

Part Number

Plug

3001-6113-00

3001-6121-02

3001-6125-02

3001-6100-00

3001-1316-00

3001-6120-02

3001-6124-02

Fig.

1

3

3*

1

1*

3

3*

Part Number

Jack

3002-6113-00

_

3002-6100-00

_

Fig

2

_

2

_

Frequency

(GHz)

VSWR

Weight

Plug

1.5 oz. (41.7 g)

Jack

1.4 oz (38.5 g)

_

1.4 oz (38.5 g)

_

DC -12.4

DC to 12.4 GHz 1.15

1.3 oz. (37 g)

1.5 oz. (41.7 g)

DC - 18

DC to 12.4 GHz 1.15

12.4 to 18 GHz 1.20

1.5 oz. (41.7 g)

1.3 oz. (37 g)

Power:

2.0 Watts Average (See Derating Curve)

Finish:

Passivated Stainless Steel

* With 2” monel bead chain attached to Nickel Plated Brass eyelet 0.130 I.D. clearance hole end adds to length of device.

Phone: 603-222-2256

fax: 603-222-2259

www.XMAcorp.com

sales@XMAcorp.com

63

3001-6124-02 Related Products

	3001-6124-02	3001-6100-00	3001-6120-02	MT7844B	N200P-016BL-IND	3002-6100-00	3002-6113-00	3001-1316-00	3001-6121-02
Description	RF/Microwave Termination, 0MHz Min, 18000MHz Max	RF/Microwave Termination, 0MHz Min, 18000MHz Max	RF/Microwave Termination, 0MHz Min, 18000MHz Max	Non-isolated APFC BUCK LED Driver	Industrial Cat6 UTP Ethernet Cable (RJ45 M/M), 100W PoE, CMR-LP, IP68, Blue, 16 ft.	RF/Microwave Termination, 0MHz Min, 18000MHz Max	RF/Microwave Termination, 0MHz Min, 12400MHz Max	RF/Microwave Termination, 0MHz Min, 18000MHz Max	RF/Microwave Termination, 0MHz Min, 12400MHz Max
Reach Compliance Code	compliant	unknown	unknown	-	-	unknown	unknown	unknown	compliant
structure	COAXIAL	COAXIAL	COAXIAL	-	-	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	-	-	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	-	-	18000 MHz	12400 MHz	18000 MHz	12400 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	-	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C	-	-	-54 °C	-54 °C	-54 °C	-54 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	-	-	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.2	1.2	1.2	-	-	1.2	1.2	1.2	1.15
Base Number Matches	-	1	1	-	-	1	1	1	-
