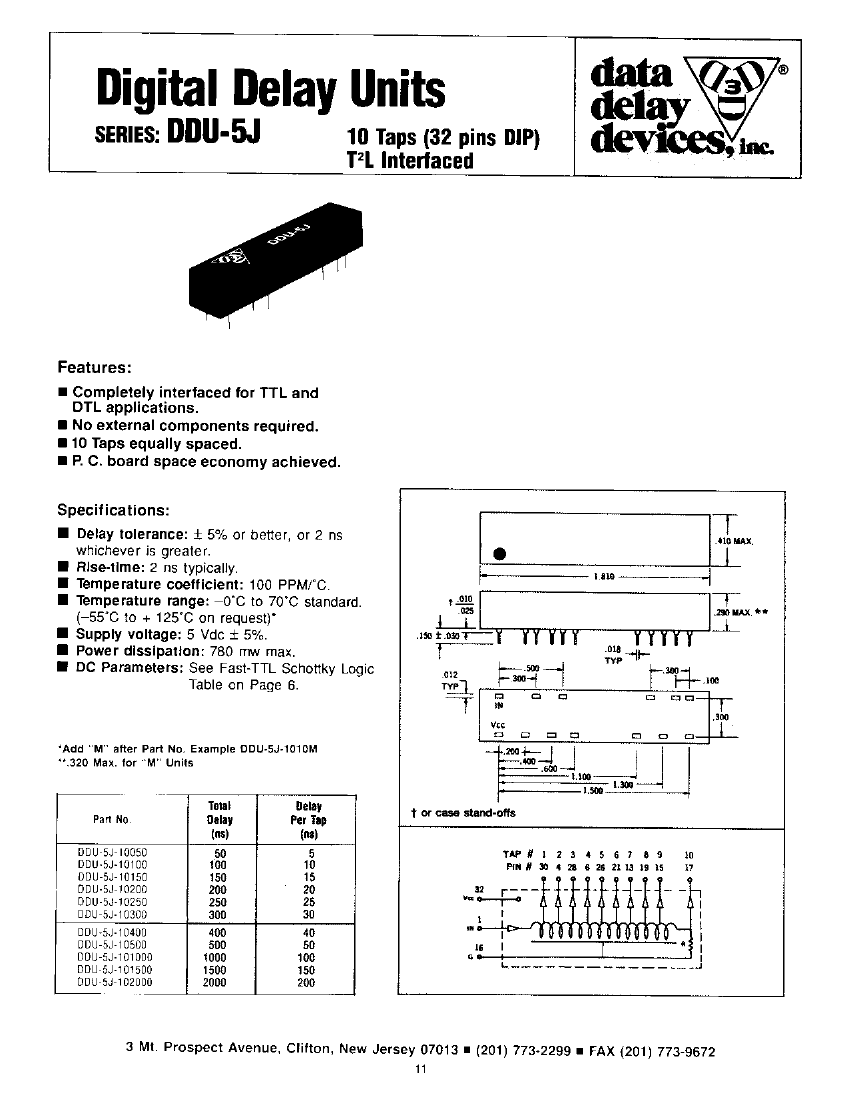

DDU-5J-10250M: DescriptionActive Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,; Categorylogic logic; File Size20KB，1 Pages; ManufacturerData Delay Devices

Download Datasheet Parametric Compare View All

DDU-5J-10250M Overview

Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,

DDU-5J-10250M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Delay Devices
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T32
JESD-609 code	e0
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	156 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	250 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

DDU-5J-10250M Related Products

	DDU-5J-10250M	DDU-5J-102000M	DDU-5J-101500M	DDU-5J-101000M	DDU-5J-10200M	DDU-5J-10400M
Description	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,	Active Delay Line, 1-Func, 10-Tap, Hybrid, CDIP32,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10
Number of terminals	32	32	32	32	32	32
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	156 mA	156 mA	156 mA	156 mA	156 mA	156 mA
programmable delay line	NO	NO	NO	NO	NO	NO
Prop。Delay @ Nom-Sup	250 ns	2000 ns	1500 ns	1000 ns	200 ns	400 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
