5417FM datasheet, PDF - EEWORLD Datasheet

5417FM: DescriptionBuffer, TTL, CDFP14,; Categorylogic logic; File Size24KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5417FM Overview

Buffer, TTL, CDFP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	BUFFER
MaximumI(ol)	0.016 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	41 mA
Prop。Delay @ Nom-Sup	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

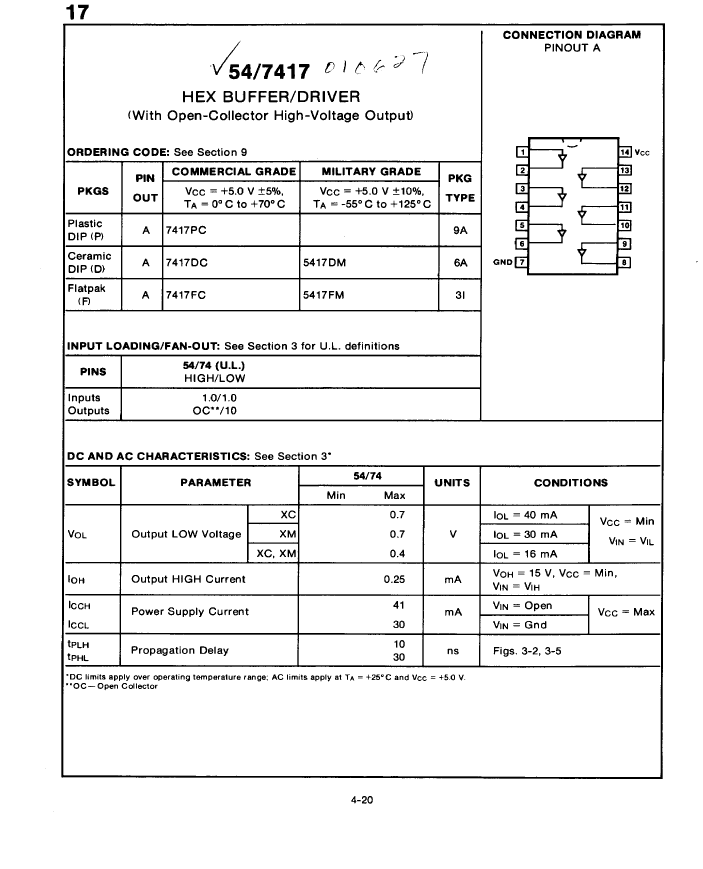

This Material Copyrighted By Its Respective Manufacturer

	5417FM	7417FC	7417PC	7417DC
Description	Buffer, TTL, CDFP14,	Buffer, TTL, CDFP14,	Buffer, TTL, PDIP14	Buffer, TTL, CDIP14,
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compliant	unknown	compliant
JESD-30 code	R-XDFP-F14	R-XDFP-F14	R-PDIP-T14	R-XDIP-T14
Logic integrated circuit type	BUFFER	BUFFER	BUFFER	BUFFER
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	41 mA	41 mA	41 mA	41 mA
Prop。Delay @ Nom-Sup	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	-	incompatible
JESD-609 code	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
