52527-200024 datasheet, PDF - EEWORLD Datasheet

52527-200024: DescriptionTelecom and Datacom Connector, 24 Contact(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size243KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

52527-200024 Overview

Telecom and Datacom Connector, 24 Contact(s), Female, Straight, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIGITAL ONLY CONTACTS
body width	0.428 inch
subject depth	0.281 inch
body length	1.45 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	44.48 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52527
Plug contact pitch	0.075 inch
Match contact row spacing	0.075 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.102 inch
Terminal pitch	1.905 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	9.7856 N

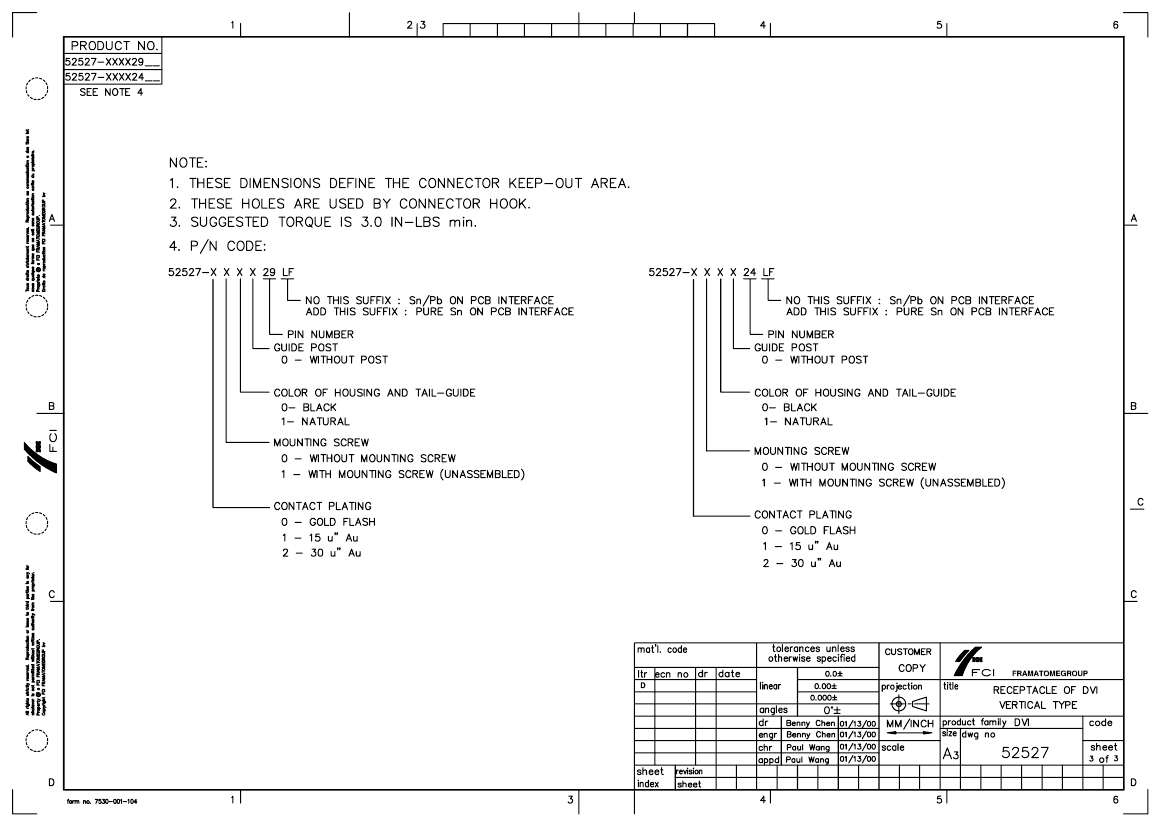

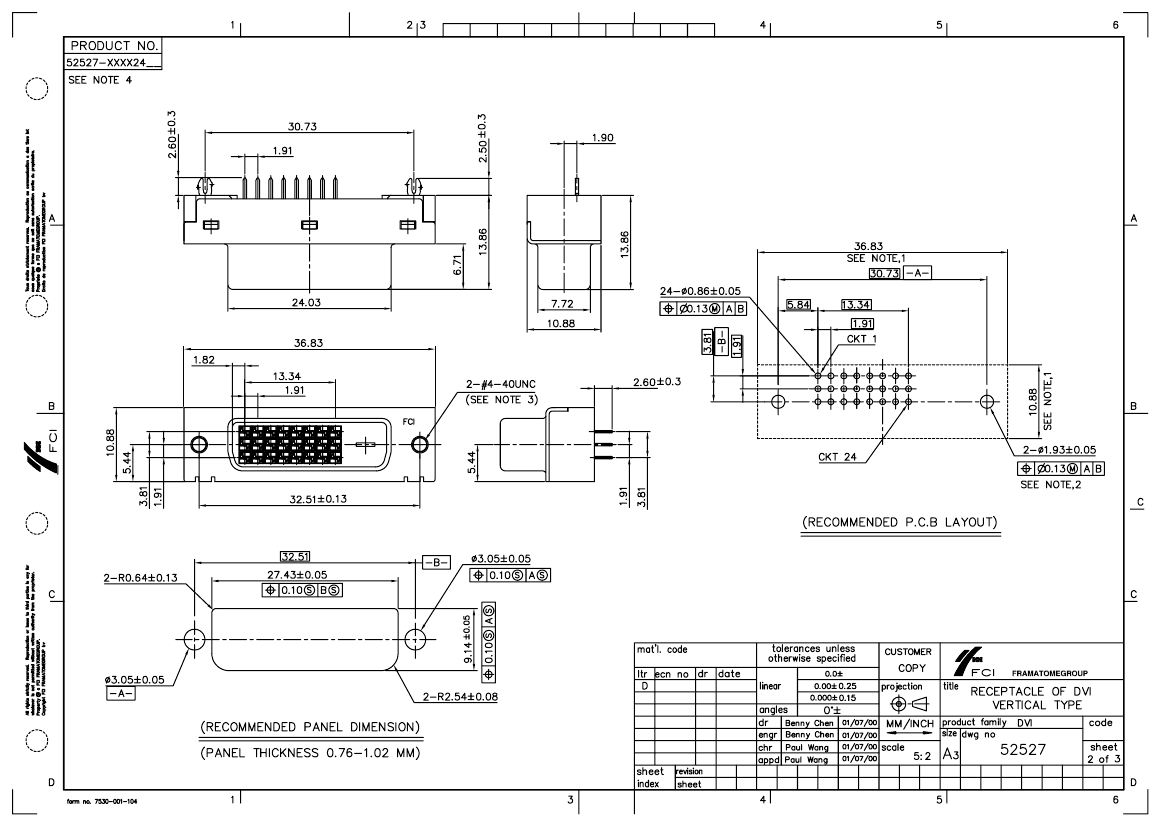

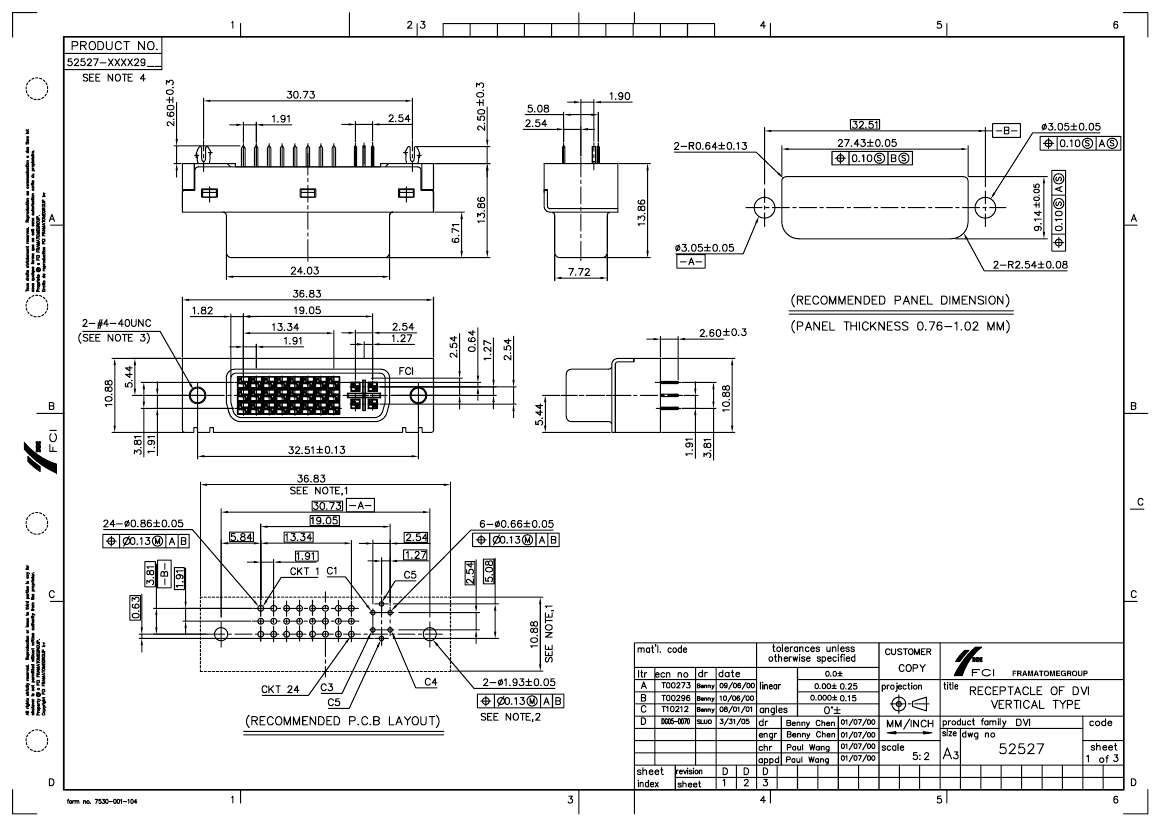

PDM: Rev:D

STATUS:

Released

Printed: Apr 04, 2005
