Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998
FAX: (805) 522-9989
E-mail:
frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
1A FAST RECOVERY PLASTIC RECTIFIER
FR10-005 THRU FR10-10
FEATURES
FAST RECOVERY TIMES
UL 94V0 FLAME RETARDANT EPOXY MOLDING COMPOUND
DIFFUSED JUNCTION
LOW COST
HIGH SURGE CURRENT CAPABILITY
1.0(25.4)
MIN
.034(0.9)
.028(0.7)
.205(5.2)
.166(4.2)
.107(2.7)
.080(2.0)
MECHANICAL DATA
CASE: TRANSFER MOLDED, DO41, DIMENSIONS
IN INCHES AND (MILLIMETERS)
LEADS: SOLDERABLE PER MIL-STD-202, METHOD 208
POLARITY: CATHODE INDICATED BY COLOR BAND
WEIGHT: 0.34 GRAMS
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL FR10-005 FR10-01 FR10-02 FR10-04 FR10-06 FR10-08 FR10-10 UNITS
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
R
θja
T
STG
T
OP
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
15
50
- 55 TO + 150
- 55 TO + 150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
PF
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
MAXIMUM FORWARD VOLTAGE AT I
O
DC
MAXIMUM REVERSE CURRENT AT 25℃
MAXIMUM REVERSE CURRENT AT100℃
SYMBOL FR10-005 FR10-01 FR10-02 FR10-04 FR10-06 FR10-08 FR10-10 UNITS
V
F
I
R
I
R
1.3
5
50
250
500
V
μA
μA
nS
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
150
NOTE: 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
FR10-005 THRU FR10-10
Page: 1
RATINGS AND CHARACTERISTIC CURVE FR10-005 THRU FR10-10

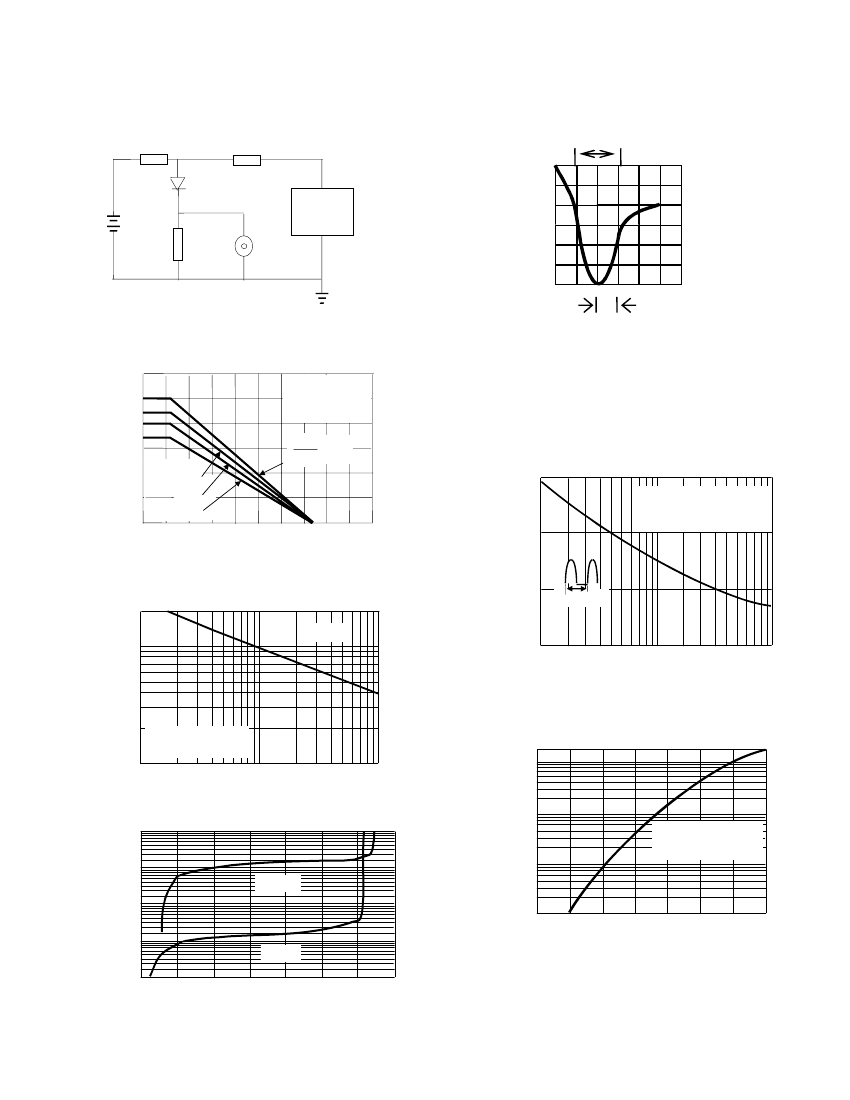

FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
(-)
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
+0.5A
0
-0.25A
(-)
(+)
-1.0A
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
Fig. 2-MAXIMUM CURRENT DERATING CURVE
RESISTIVE OR
INDUCTIVE LOAD
0.375”(9.5mm)
LEAD LENGTH
1cm
SET TIME BASE
FOR 10/20 ns/cm
Io-AVERAGE RECTIFIED
CURRENT (A)
1.0
0.8
0.6
0.4
0.2
0
0
CAPACITIVE
LOAD
I(pk)
I(AV)
=
π
PEAK FORWARD SURGE CURRENT
AMPERES
Fig. 5-MAXIMUM FORWARD SURGE
NUMBER OF CYCLES
I(pk)
I(
AV
)
5
= 10
20
60 80 100 120 140 160 180 200
30
20
T
A
=75
o
C
8.3ms SINGLE HALF
SINE-WAVE JEDEC METHOD
20 40
T
A
-AMBIENT TEMPERATURE (
O
C)
FIG. 3-TYPICAL JUNCTION CAPACITANCE
10
1.0 CYCLE
20
Tj=25
o
C
CAPACITANCE, pF
10
0
1
10
NUMBER OF CYCLES AT 60 HZ
100
1
10
REVERSE VOLTAGE, VOLTS
100
INSTANTANEOUS FORWARD
CURRENT, I
F
(A)
1
f = 1 MHz
Vsig = 50 mVp-p
FIG. 6-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
20
10
3
1
.3
.1
.03
.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6 1.8
Tj=25
o
C
PULSE WIDTH =300us
1% DUTY CYCLE
INSTANTANEOUS REVERSE
CURRENT, MICRO AMPERES(uA)
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
100
10
1
0.1
.01
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE
o
T
J
=100 C
o
T
J
=25 C
INSTANTANEOUS FORWARD
VOLTAGE, (V)
FR10-005 THRU FR10-10
Page: 2
