1A ULTRA FAST RECOVERY RECTIFIER
FUF4001 THRU FUF4007
FEATURES
PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY
FLAMMABILITY CLASSIFICATION 94V-0
ULTRA FAST RECOVERY TIMES FOR HIGH EFFICIENCY
LOW FORWARD VOLTAGE, HIGH CURRENT CAPABILITY
LOW LEAKAGE
HIGH SURGE CAPABILITY
HIGH TEMPERATURE SOLDERING GUARANTEED:
260°C 0.375” (9.5mm) LEAD LENGTHS FOR 10 SECONDS AT
5 LBS.(2.3KG)TENSION
1.0(25.4)
MIN
.034(0.9)
.028(0.7)
.205(5.2)
.166(4.2)
.107(2.7)
.080(2.0)
MECHANICAL DATA
CASE: MOLDED PLASTIC, DO41, DIMENSIONS
IN INCHES AND (MILLIMETERS)
TERMINALS: AXIAL LEADS SOLDERABLE PER MIL-STD-
202, METHOD 208
POLARITY: COLOR BAND DENOTES CATHODE END
MOUNTING POSITION: ANY
WEIGHT: 0.34 GRAMS
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED SINGLE
PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL FUF4001 FUF4002 FUF4003 FUF4004 FUF4005 FUF4006 FUF4007
UNITS
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
R
θja
T
STG
T
OP
20
50
- 55 TO + 150
- 55 TO + 150
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
15
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
PF
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
SYMBOL FUF4001 FUF4002 FUF4003 FUF4004 FUF4005 FUF4006 FUF4007
UNITS
1.7
V
μA
μA
nS
MAXIMUM FORWARD VOLTAGE AT I
O
DC
V
F
1.3
MAXIMUM DC REVERSE CURRENT AT TA=25°C
I
R
5
MAXIMUM DC REVERSE CURRENT AT TA=100°C
I
R
50
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
50
NOTE: 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
75
FUF4001 THRU FUF4007
Page: 1

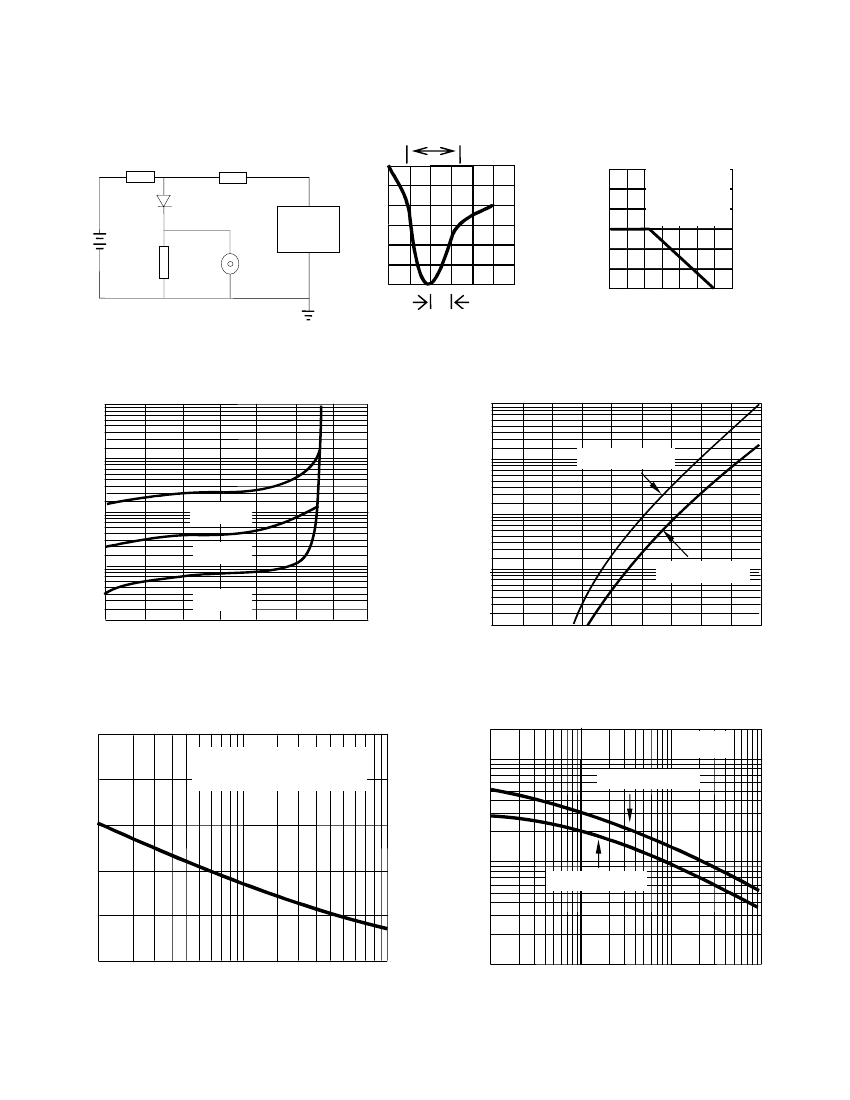

RATINGS AND CHARACTERISTIC CURVE FUF4001 THRU FUF4007
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
+0.5A
(-)
FIG. 2-TYPICAL FORWARD
CURRENT DERATING CURVE
2.0
AVERAGE FORWARD
CURRENT (A)
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
0
-0.25A
1.0
Single Phase Half
Wave 60 Hz
Resistive or
Inductive Load
(-)
(+)
-1.0A
1cm
SET TIME BASE
FOR 10/20 ns/cm
0
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
FIG. 3-TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (uA)
25 50 75 100 125 150 175
AMBIENT TEMPERATURE (
o
C)
FIG. 4-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
1000
100
100
10
FUF4001~4004
10
T
J
=125
o
C
T
J
=80
o
C
1
.1
1
T
J
=25
o
C
0.1
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FUF4005~4007
.01
.2 .4 .6
.8 1.0 1.2 1.4 1.6 1.8 2.0
INSTANTANEOUS FORWARD VOLTAGE (V)
FIG. 5-MAXIMUN NON-REPETITIVE
FORWARD SURGE CURRENT
FIG. 6-TYPICAL JUNCTION CAPACITANCE
50
PEAK FORWARD SURGE CURRENT (A)
200
JUNCTION CAPACITANCE (pF)
T
J
=25
o
C
FUF4001~4004
40
8.3 ms Single Half Sine Wave
(JEDEC Method)
100
40
20
10
6
4
2
1
FUF4005~4007
30
20
10
0
0
1 2
4 6
10
20
40 60
100
.1 .2
.4
1.0 2
4
10 20 40
100
NUMBER OF CYCLES AT 60 Hz
REVERSE VOLTAGE (V)
FUF4001 THRU FUF4007
Page: 2
