GRM32EER72A105KA01L datasheet, PDF

Datasheet> All Categories > Passive components> GRM32EER72A105KA01L

GRM32EER72A105KA01L: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210; CategoryPassive components; File Size1MB，22 Pages; ManufacturerFREESCALE (NXP)

Download Datasheet Parametric Compare View All

GRM32EER72A105KA01L Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210

GRM32EER72A105KA01L Parametric

Parameter Name	Attribute value
Minimum operating temperature	-55 Cel
Maximum operating temperature	155 Cel
Processing package description	CHIP, HALOGEN FREE AND ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Resistor type	FIXED RESISTOR
structure	Chip
jesd_609_code	e3
Manufacturer Series	CRCWE3
Installation features	SURFACE MOUNT
ckage_heigh	0.5500 mm
ckage_length	3.2 mm
packaging shape	RECTANGULAR PACKAGE
Package Size	SMT
ckage_width	2.5 mm
cking_method	TR, PAPER, 7 INCH
Rated power P	0.5000 W
Rated temperature	70 Cel
eference_standard	AEC-Q200
resistance	2 ohm
series	D/CRCW E3
size code	1210
sub_category	Fixed Resistors
Craftsmanship	METAL GLAZE/THICK FILM
emperature_coefficient__ppm_cel_	-100,100
terminal coating	TIN OVER NICKEL
Terminal shape	WRAPAROUND
deviation	1 %
Operating Voltage	200 V
dditional_feature	RATED AC VOLTAGE (V): 200

Preview

Download Datasheet

View All

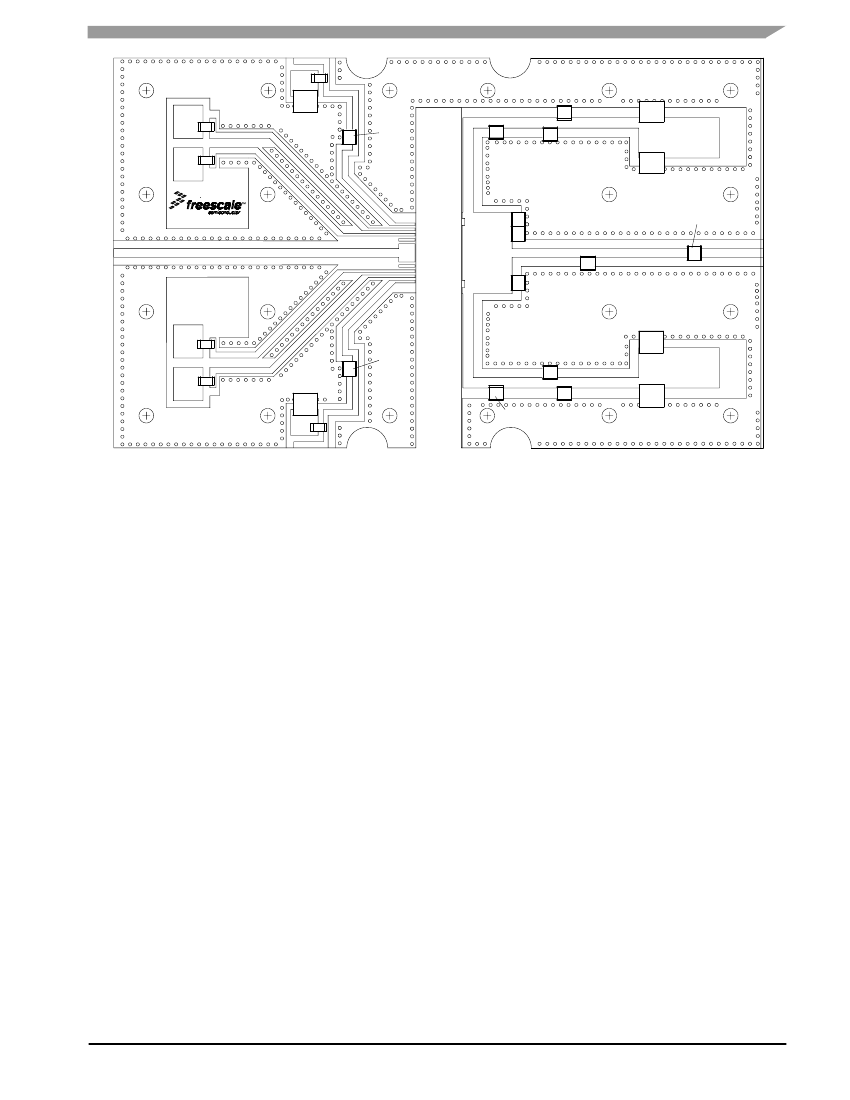

Freescale Semiconductor

Technical Data

Document Number: MD7IC21100N

Rev. 2, 2/2012

RF LDMOS Wideband Integrated

Power Amplifiers

The MD7IC21100N wideband integrated circuit is designed with on--chip

matching that makes it usable from 2110 to 2170 MHz. This multi--stage

structure is rated for 24 to 32 Volt operation and covers all typical cellular base

station modulation formats including TD--SCDMA.

•

Typical Single--Carrier W--CDMA Performance: V

= 28 Volts, I

DQ1A

DQ1B

= 190 mA, I

DQ2A

+ I

DQ2B

= 925 mA, P

out

= 32 Watts Avg.,

f = 2167.5 MHz, IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz,

Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.

Power Gain — 28.5 dB

Power Added Efficiency — 30%

Device Output Signal PAR — 6.1 dB @ 0.01% Probability on CCDF

ACPR @ 5 MHz Offset — --38 dBc in 3.84 MHz Channel Bandwidth

•

Capable of Handling 5:1 VSWR, @ 32 Vdc, 2140 MHz, P

out

= 110 Watts CW

(3 dB Input Overdrive from Rated P

out

)

•

Stable into a 5:1 VSWR. All Spurs Below --60 dBc @ 1 mW to 100 Watts CW

out

•

Typical P

out

@ 1 dB Compression Point

≃

110 Watts CW

Features

•

100% PAR Tested for Guaranteed Output Power Capability

•

Characterized with Series Equivalent Large--Signal Impedance Parameters

and Common Source S-Parameters

•

On--Chip Matching (50 Ohm Input, on a per side basis, DC Blocked)

•

Internally Matched for Ease of Use

•

Integrated Quiescent Current Temperature Compensation with

Enable/Disable Function

(1)

•

Integrated ESD Protection

•

225°C Capable Plastic Package

•

In Tape and Reel. R1 Suffix = 500 Units, 44 mm Tape Width, 13 inch Reel.

MD7IC21100NR1

MD7IC21100GNR1

MD7IC21100NBR1

2110-

-2170 MHz, 32 W AVG., 28 V

SINGLE W-

-CDMA

RF LDMOS WIDEBAND

INTEGRATED POWER AMPLIFIERS

CASE 1618-

-02

TO-

-270 WB-

-14

PLASTIC

MD7IC21100NR1

CASE 1621-

-02

TO-

-270 WB-

-14 GULL

PLASTIC

MD7IC21100GNR1

CASE 1617-

-02

TO-

-272 WB-

-14

PLASTIC

MD7IC21100NBR1

DS1A

inA

GS1A

GS2A

GS1B

GS2B

inB

DS1B

out1

DS2A

Quiescent Current

Temperature Compensation

(1)

Quiescent Current

Temperature Compensation

(1)

out2

DS2B

DS1A

GS2A

GS1A

inA

inB

GS1B

GS2B

DS1B

out1

DS2A

out2

DS2B

(Top View)

Note: Exposed backside of the package is

the source terminal for the transistors.

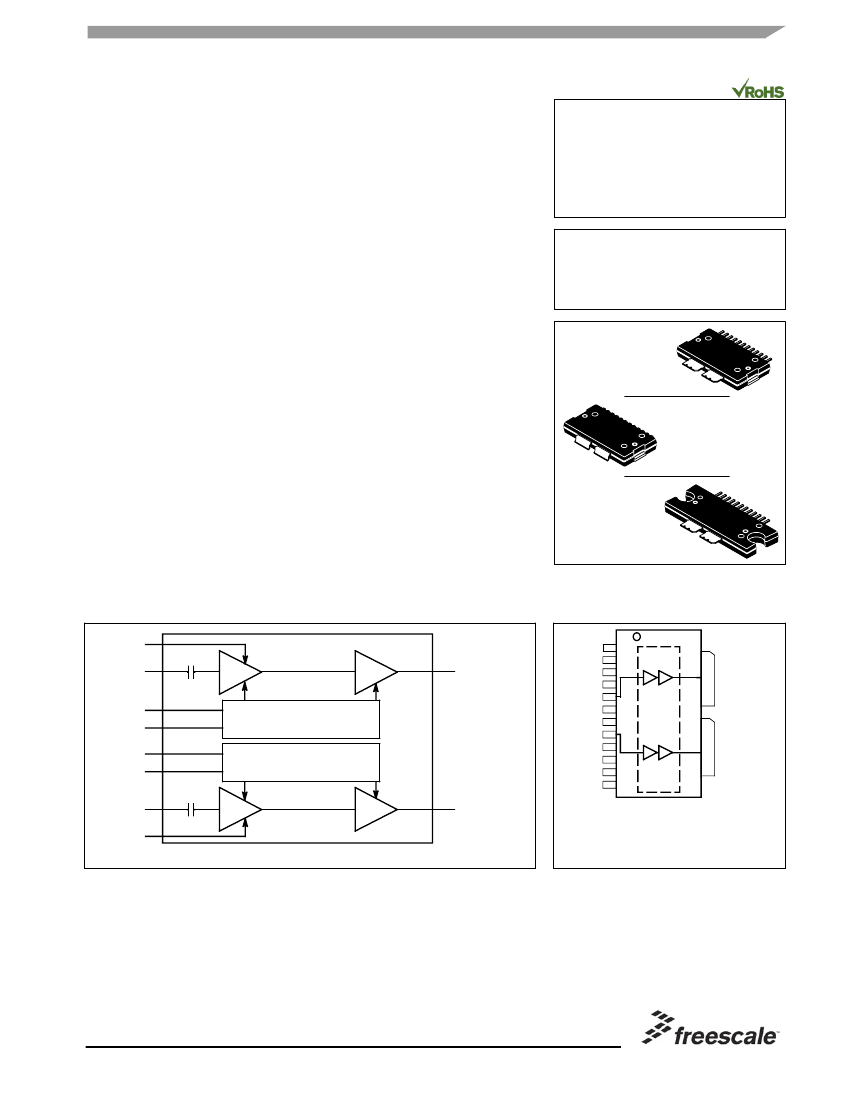

Figure 1. Functional Block Diagram

Figure 2. Pin Connections

1. Refer to AN1977,

Quiescent Current Thermal Tracking Circuit in the RF Integrated Circuit Family

and to AN1987,

Quiescent Current Control

for the RF Integrated Circuit Device Family.

Go to http://www.freescale.com/rf. Select Documentation/Application Notes -- AN1977 or AN1987.

MD7IC21100NR1 MD7IC21100GNR1 MD7IC21100NBR1

RF Device Data

Freescale Semiconductor, Inc.

GRM32EER72A105KA01L Related Products

	GRM32EER72A105KA01L	ATC100B0R5CT500XT	ATC100B1R2CT500XT	CRCW12064701FKEA	CRCW12102R00FKEA	GRM32NR72A104KA01B	MD7IC21100N_12	ATC100B100JT500XT
Description	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210	RESISTOR, METAL GLAZE/THICK FILM, 0.5 W, 1 %, 100 ppm, 2 ohm, SURFACE MOUNT, 1210
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Maximum operating temperature	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel
Processing package description	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT	CHIP, HALOGEN FREE AND ROHS COMPLIANT
each_compli	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	Active	Active	Active	Active	Active	Active	Active	Active
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
structure	Chip	Chip	Chip	Chip	Chip	Chip	Chip	Chip
jesd_609_code	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer Series	CRCWE3	CRCWE3	CRCWE3	CRCWE3	CRCWE3	CRCWE3	CRCWE3	CRCWE3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
ckage_heigh	0.5500 mm	0.5500 mm	0.5500 mm	0.5500 mm	0.5500 mm	0.5500 mm	0.5500 mm	0.5500 mm
ckage_length	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
packaging shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package Size	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
ckage_width	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
cking_method	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH
Rated power P	0.5000 W	0.5000 W	0.5000 W	0.5000 W	0.5000 W	0.5000 W	0.5000 W	0.5000 W
Rated temperature	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel
eference_standard	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
resistance	2 ohm	2 ohm	2 ohm	2 ohm	2 ohm	2 ohm	2 ohm	2 ohm
series	D/CRCW E3	D/CRCW E3	D/CRCW E3	D/CRCW E3	D/CRCW E3	D/CRCW E3	D/CRCW E3	D/CRCW E3
size code	1210	1210	1210	1210	1210	1210	1210	1210
sub_category	Fixed Resistors	Fixed Resistors	Fixed Resistors	Fixed Resistors	Fixed Resistors	Fixed Resistors	Fixed Resistors	Fixed Resistors
Craftsmanship	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
emperature_coefficient__ppm_cel_	-100,100	-100,100	-100,100	-100,100	-100,100	-100,100	-100,100	-100,100
terminal coating	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
deviation	1 %	1 %	1 %	1 %	1 %	1 %	1 %	1 %
Operating Voltage	200 V	200 V	200 V	200 V	200 V	200 V	200 V	200 V
dditional_feature	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200
