MH36TAD50.0000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MH36TAD50.0000MHZ

Preview

MH36TAD50.0000MHZ: DescriptionXO, Clock, 1MHz Min, 80MHz Max, 50MHz Nom,; CategoryPassive components oscillator; File Size53KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MH36TAD50.0000MHZ Overview

XO, Clock, 1MHz Min, 80MHz Max, 50MHz Nom,

MH36TAD50.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	DIP4/8,.3
Reach Compliance Code	unknown
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	50 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

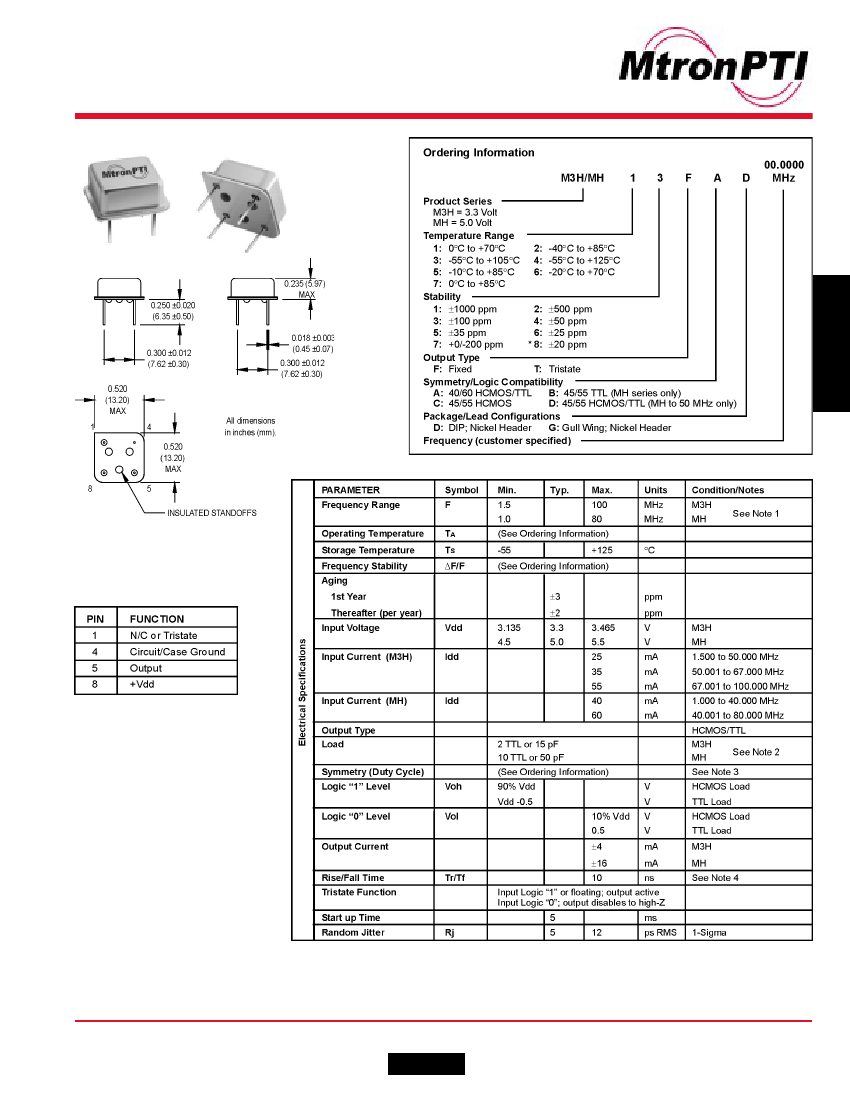

M3H & MH Series

8 DIP, 5.0 or 3.3 Volt, HCMOS/TTL, Clock Oscillator

X

O

*Contact factory for availability.

Pin Connections

1. Contact the factory for availability of higher frequencies.

2. TTL load - See load circuit diagram #1 on page 116. HCMOS load - See load circuit diagram #2 on page 116.

3. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

4. Rise/Fall times are measured between 0.4 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
