VDE1-50P-20: DescriptionInternational Power Transformer; File Size656KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

VDE1-50P-20 Overview

International Power Transformer

Preview

Download Datasheet

View All

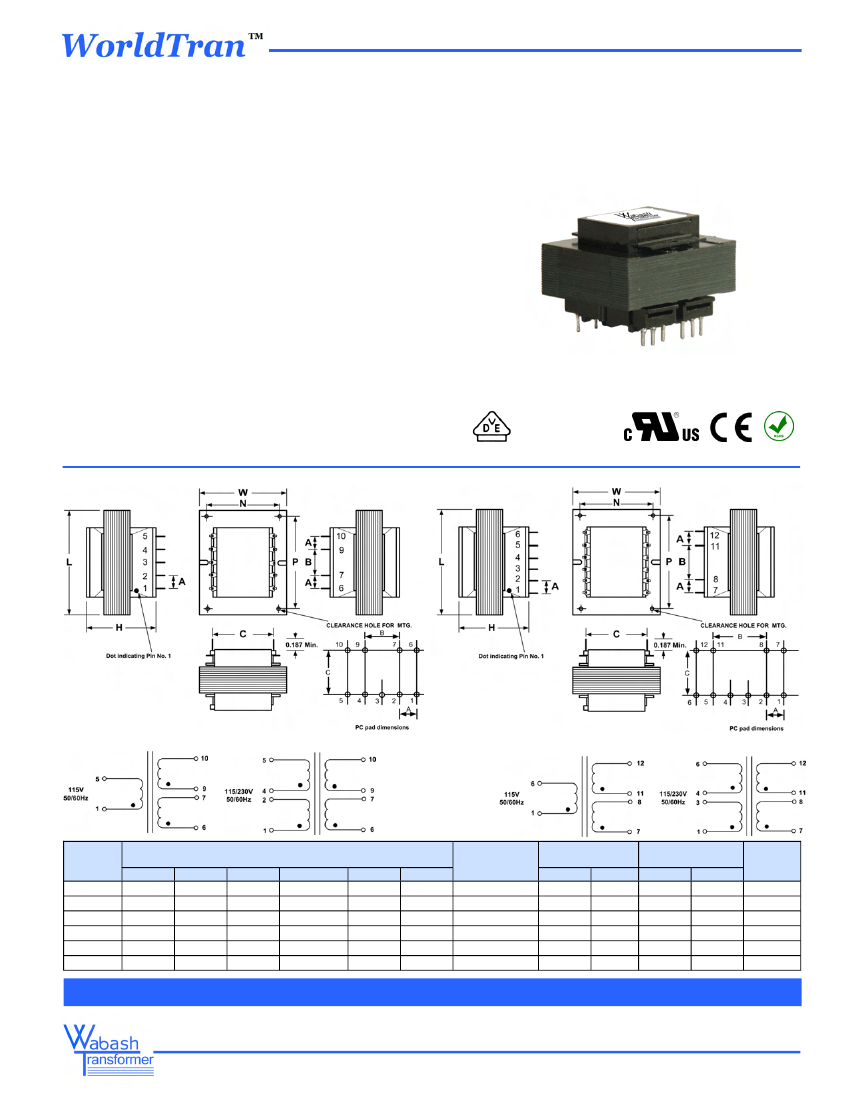

International Power Transformer

Series: VDE

- Printed Circuit Mount, Full Shroud



Power Rating 25VA to 56VA

Single or Dual Primary, 115V, 230V or 115/230V

Frequency 50/60Hz

Series or Parallel Secondary

Dielectric Strength – 4000 Vrms

Insulation Class F (155°C)

Flammability Rating – Bobbin/Shroud UL94V0 or 94H-B

Transformer meets international safety standards by

providing high isolation, creepage, clearance, and

increased flammability ratings. Use in low power

applications.

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

VDE Licensed (File 40001595)

UL/cUL 5085-3 Class 2 Recognized (File E49606)

UL 6500 Audio/Video Recognized (File E210114)

Insulation File No. E95662

25 to 50 VA

Class 2

56 VA

Single Primary

Dual Primary

●

Indicates Like Polarity

Primaries and Secondaries are

designed to be used simultaneously.

That is, they must be used either

series or parallel connected (as one

winding). Same applies to secondaries

also.

Single Primary

Dual Primary

Rating

Dimensions (Inches)

2.25

2.62

3.00

1.87

2.18

2.50

1.96

1.94

2.07

2.32

2.18

0.300

0.600

0.900

1.22

1.40

1.50

1.59

Pin Dim.

W X THK.

0.06 X 0.02

Mounting Dim.

1.50

1.75

2.00

1.875

2.188

2.580

Mtg. Screw

Size

Qty

Weight

lbs

1.10

1.15

1.36

1.64

1.85

2.09

Any application, Any requirement, Contact us for our Custom Designs

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
