DCJ02601 Overview

Circular DC Power Connector,

DCJ02601 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeCIRCULAR DC POWER CONENCTOR
Manufacturer's serial numberDCJ

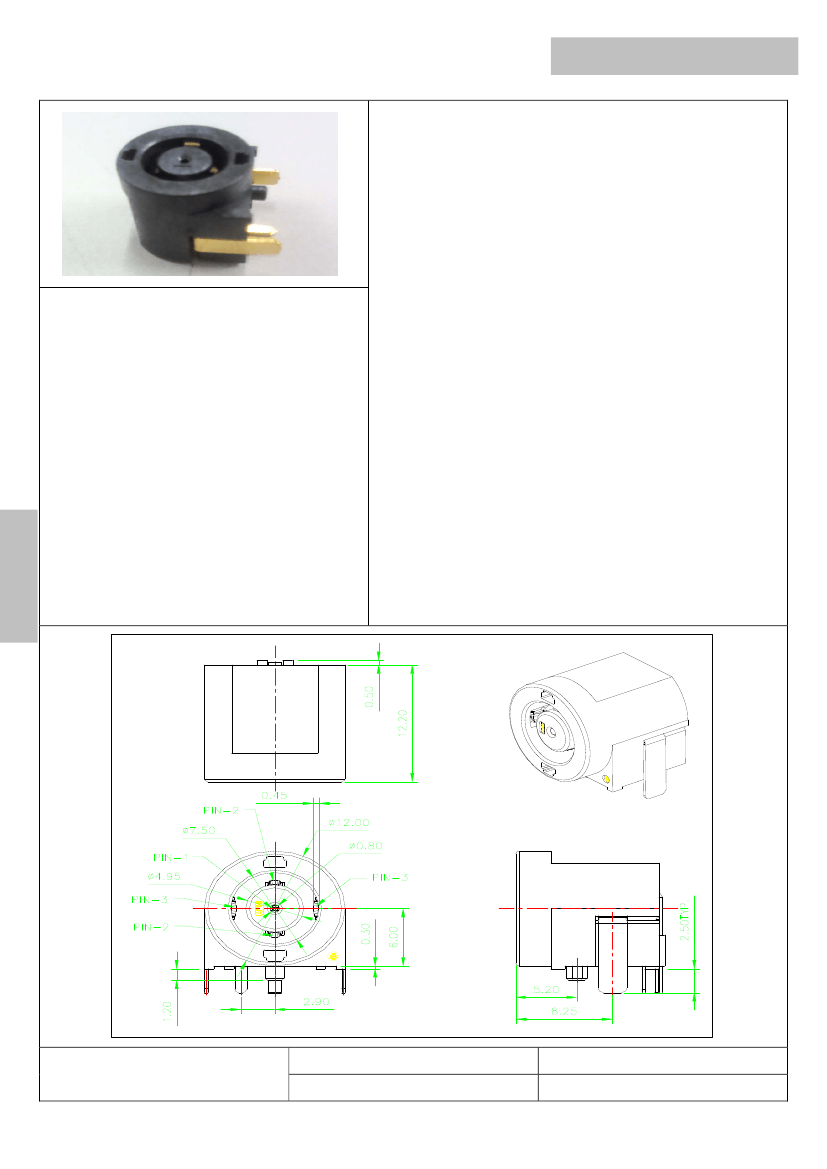

Amphenol
DC POWER JACK
1.Material/
Finish
:
Body Insulator:HIGH-TEMP. Thermoplastic,Glass Filled,UL
94V-0,Color:Black;
Pin1:Copper alloy,Gold flash on select contact area over 30u"
Palladium-Nickel on mating area,
Tin plating on solder tail ,
Nickel underplate overall;
Pin2:Copper alloy,Gold flash on select contact area over 30u"
Palladium-Nickel on mating area,
Tin plating on solder tail ,
Nickel underplate overall;
Pin3:Copper alloy,Gold flash on select contact area over 30u"
Palladium-Nickel on mating area,
Tin plating on solder tail ,
Nickel underplate overall;
2.Performance:
Current Rating: 1.0A
Voltage Rating: 48V DC
I.R: 100Mohms
C.R: 30 mohms(Initial Test)
C.R: 45 mohms(After Test)
Dielectric Strengh:500V AC
Durability: 5000Cycles
MFG:EIA-364-65A,Condition IIA,
3.Packaging:
Parts to be packed in tray.
All packaging materials to be approved by Amphenol
engineering.
Part Number:DCJ02601
Part Description: 3PIN DC POWER JACK
Through hole soldering
ROHS applied
High Reliability
HDM Connector
Amphenol
Website:http//www.amphenol.com.cn
Product Series:
DCJ
Revision A
Part Number:
DCJ02601
Release date: May,30,2012
