Filter Connectors / D*J
Features/Benefits
•
D*Sub
•
Filtration 4000 to 12000 pf
•
Direct filtration included
inside the connectors
•
Burning and LAT test included
•
EPPL Listed connector
Typical Applications
•
To be used where
filtration is not set
in the embedded
electronic

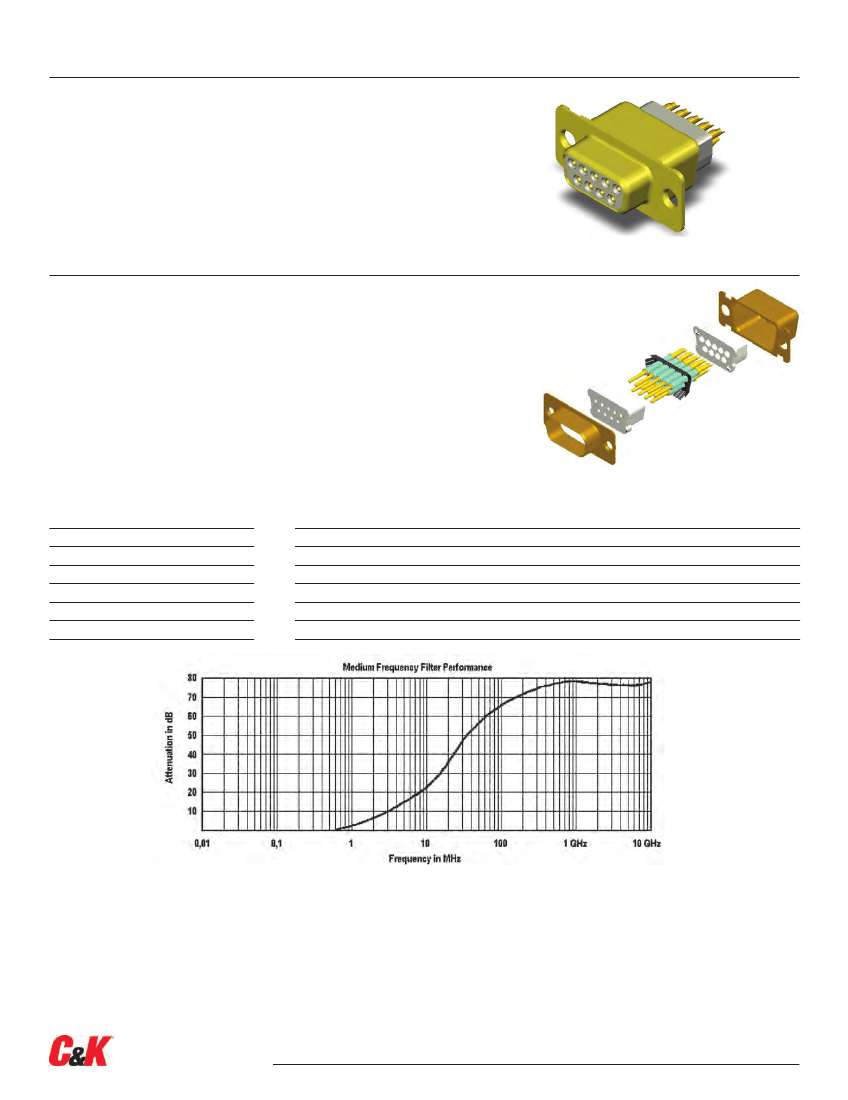

D*J Subminiature filter connectors for space applications
Compatible with other D Subminiature space connectors
Only one quality levels available:
- Code FR165: Refers to the old ESA/ESCC specification 3405/001
Amended by the C&K Connector specification CS-FR165
Used for flight models
Filter type “P”, medium frequency (code M)
Solder bucket terminations
Printed Circuit Board terminations Straight or 90° bent (Without or With Plastic Bracket)
Packaging unit: 1 piece (plastic bag)
Specific Performance Specifications
Working Voltage
Rated Current
Insulation Resistance (100 V DC)
Voltage Proof
Capacitance at 1 kHz
Attenuation at 100 MHz
200 V DC
5.0 A
10000 MW min
500 V DC
4000 pF min / 12000 pF max
50 dB min
Residual Magnetism level: NM = 20000 Gamma
Dimensions are shown in mm (inch)
Dimensions subject to change
A13-1
www.ck-components.com
Rev. 23APR13
Filter Connectors / D*J
How to order
CONNECTORS:
Our easy build-a-connector concept allows you to mix and match options to create the D*J you need. To order, select
desired option from each category and place it in the appropriate box.
For any part number different from those listed above, please consult your local C&K components representative.
• Connectors D*J – FR165 (Flying and Engineering Models):
D
Series
Shell size:
E, A, B, C, D
Filter connector serie: J
Mounting type:
Blank: Standard
Y: Float mount
E: Captive nut
Contact arrangement:
9, 15, 25, 37, 50
M:
Filter type ‘Л’ for medium frequency
B
J
Y
25
M
P
NM
OL3
-FR165
Modification code for space level
according to FR165 C&K specification
Modification code for terminations type
Nothing: Solder bucket
OL3: Straight PCB
1A0N/1B0N/2A0N/2B0N: 90° PCB
Without bracket
1A2N/1B2N/2A2N/2B2N: 90° PCB
With bracket
Magnetism level:
NM: 20 000 Gamma
P:
Pin contacts
S:
Socket contacts
Dimensions are shown in mm (inch)
Dimensions subject to change
A13-2
www.ck-components.com
Rev. 23APR13
Filter Connectors / D*J

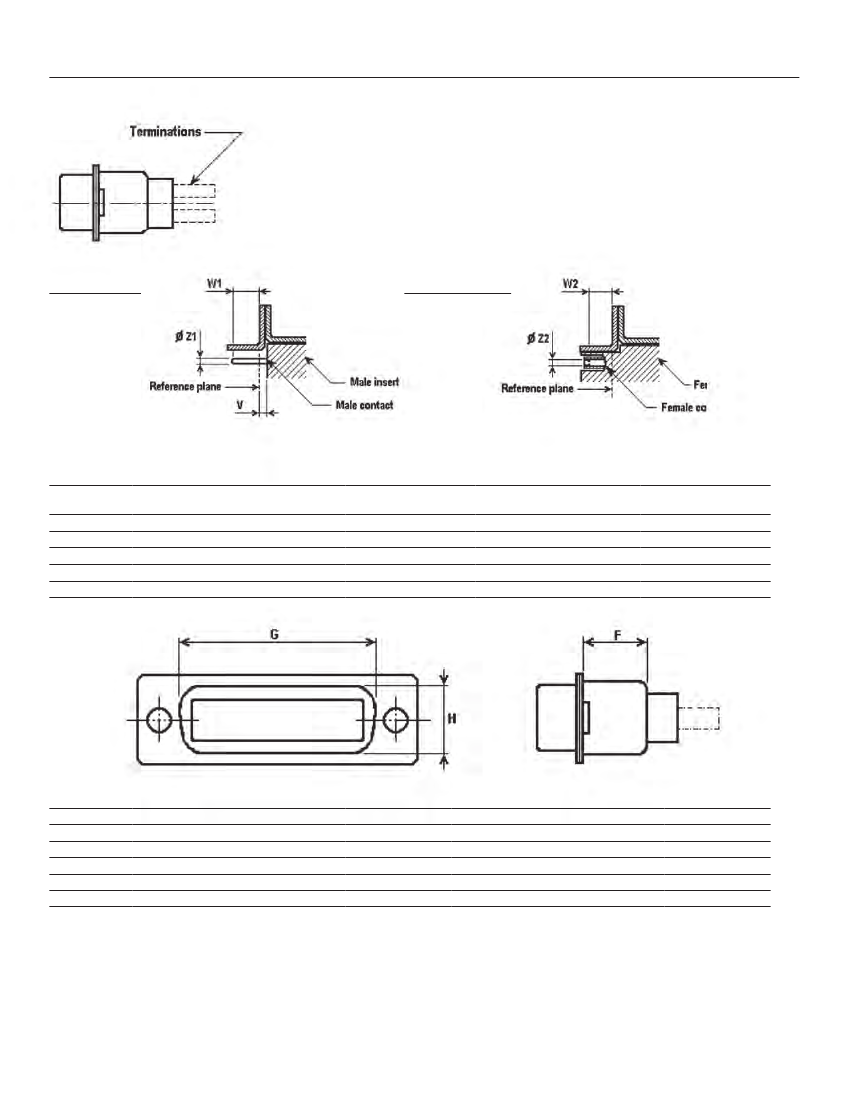

Specific Dimensions
Termination Types:
Solder Bucket
Straight PCB Solder
90° Bent PCB Solder / Without Bracket / European Footprint
90° Bent PCB Solder / With Brackets / European Footprint
Male connector
Female connector
∅Z2:
to accomodate a 0,99 (.039) / 1,04 (.041) diameter pin
Shell Size
E
A
C
D
B
V
max
0,40 (.016)
0,40 (.016)
0,60 (.024)
W1
min
(Full pin diameter)
4,47 (.176)
4,47 (.176)
4,47 (.176)
4,47 (.176)
4,47 (.176)
W1
max
(Full pin length)
5,33 (.210)
5,33 (.210)
5,33 (.210)
5,33 (.210)
5,33 (.210)
ØZ1
min
0,99 (.039)
0,99 (.039)
ØZ1
max
1,04 (.041)
1,04 (.041)
0,60 (.024)
0,60 (.024)
0,99 (.039)
0,99 (.039)
0,99 (.039)
1,04 (.041)
W2
min
(Square ended pin)
4,36 (.172)
4,36 (.172)
4,36 (.172)
4,36 (.172)
4,36 (.172)
1,04 (.041)
1,04 (.041)
Shell Size
E
A
B
C
D
F
min
10,00 (.394)
10,00 (.394)
9,90 (.390)
9,90 (.390)
9,90 (.390)
F
max
10,20 (.402)
10,20 (.402)
10,10 (.398)
10,10 (.398)
10,10 (.398)
G
min
18,95 (.746)
27,25 (1.073)
41,02 (1.615)
57,97 (2.282)
55,07 (2.168)
G
max
19,55 (.770)
27,90 (1.098)
42,01 (1.654)
58,47 (2.302)
56,08 (2.208)
H
min
10,46 (.412)
10,46 (.412)
10,46 (.412)
10,46 (.412)
13,31 (.524)
H
max
11,15 (.439)
11,15 (.439)
11,53 (.454)
11,53 (.454)
14,32 (.564)
Dimensions are shown in mm (inch)
Dimensions subject to change
A13-3
www.ck-components.com
Rev. 23APR13
Filter Connectors / D*J

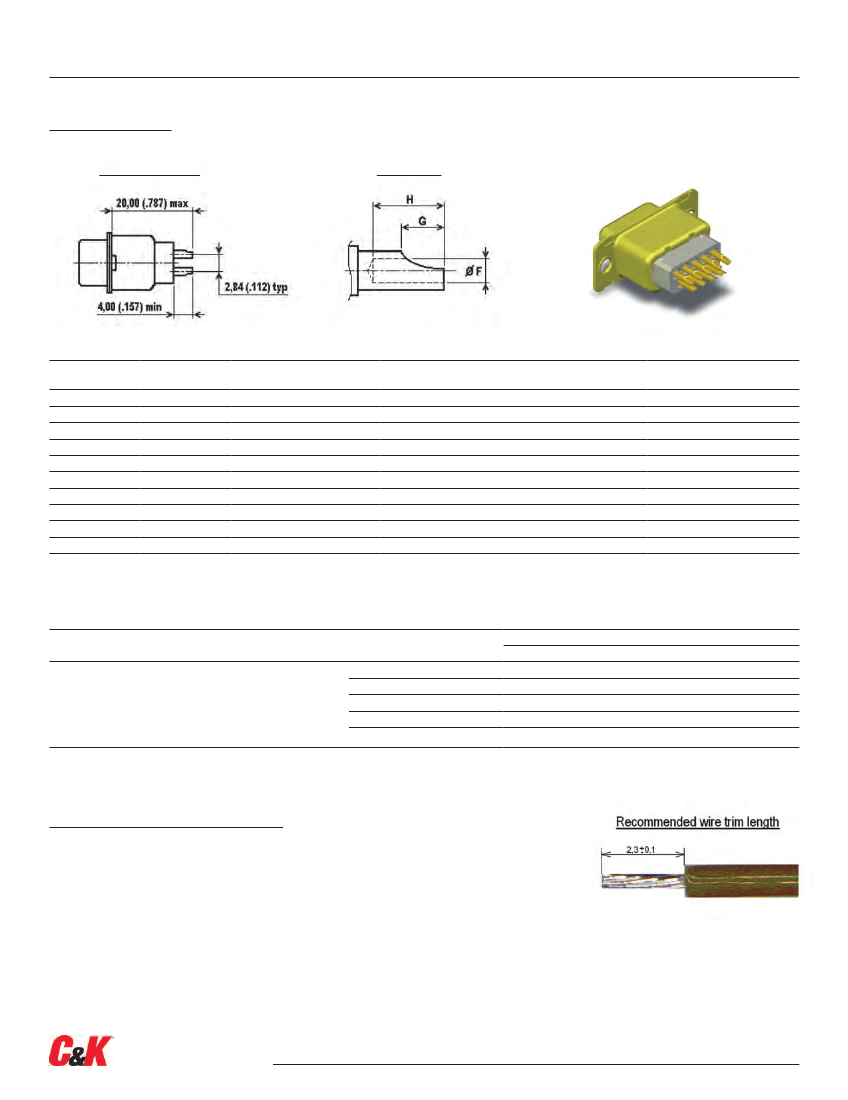

Solder Bucket Terminations:
Specific Dimensions
Sizes E, A, B, C,D
Termination
Contacts
Male
Shell Size
E
A
B
C
D
E
A
B
C
D
Female
ØF
+ 0,05(.002) / 0
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
G
± 0,15 (.006)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
H
+0,2(.008) /-0,05(.002)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
3,30 (.130)
Pitch
between contacts
2,74 (.108)
2,74 (.108)
2,76 (.109)
2,76 (.109)
2,76 (.109)
2,74 (.108)
2,74 (.108)
2,76 (.109)
2,76 (.109)
2,76 (.109)
Termination Modifier: Nothing
Weights
Max Weight (grams) with contacts
For connector with mounting option, add
the weight of the eventual accessories *
Shell Size
E
A
B
C
D
*For dual-float mount (Y) weight (if applicable), added 0,60 gr.
*For captive-nut (E) weight (if applicable), added 0,65 gr.
Recommended instruction for wire stripping:
• Cut wires to length and strip insulation per above illustration. Check for broken or frayed wires
• Accepted Wires Sizes: insulated AWG 20, AWG 22, AWG 24.
Male
12.0
18.5
28.0
38.5
47.0
Weight (Grams)
Female
13.5
20.5
31.0
42.0
51.0
Dimensions are shown in mm (inch)
Dimensions subject to change
A13-4
www.ck-components.com
Rev. 23APR13
Filter Connectors / D*J

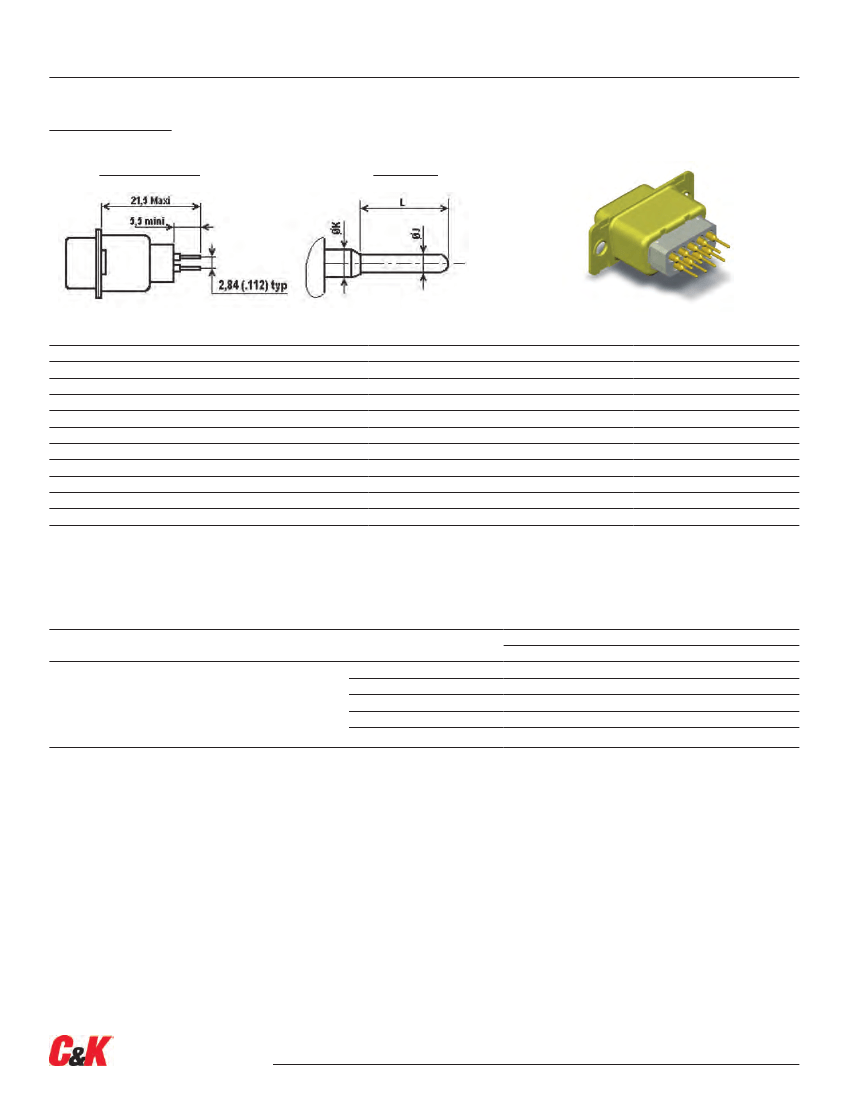

Straight PCB solder Terminations type OL3
Specific Dimensions
Sizes E, A, B, C,D
Termination
Contacts
Male
Female
Shell Size
E
A
B
C
D
E
A
B
C
D
Ø J
± 0,05 (.002)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
0,62 (.024)
Ø K
max
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
1,50 (.059)
L
± 0,05 (.002)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
4,15 (.163)
Pitch
between contacts
2,74 (.108)
2,74 (.108)
2,76 (.109)
2,76 (.109)
2,76 (.109)
2,74 (.108)
2,74 (.108)
2,76 (.109)
2,76 (.109)
2,76 (.109)
Termination Modifier: OL3
For other termination modifier, consult factory
Weights
Max Weight (grams) with contacts
For connector with mounting option, add the weight
of the eventual accessories *
Shell Size
E
A
B
C
D
*For dual-float mount (Y) weight (if applicable), added 0,60 gr.
*For captive-nut (E) weight (if applicable), added 0,65 gr.
Male
12.0
18.5
28.0
38.5
47.0
Weight (Grams)
Female
13.5
20.5
31.0
42.0
51.0
Dimensions are shown in mm (inch)
Dimensions subject to change
A13-5
www.ck-components.com
Rev. 23APR13
