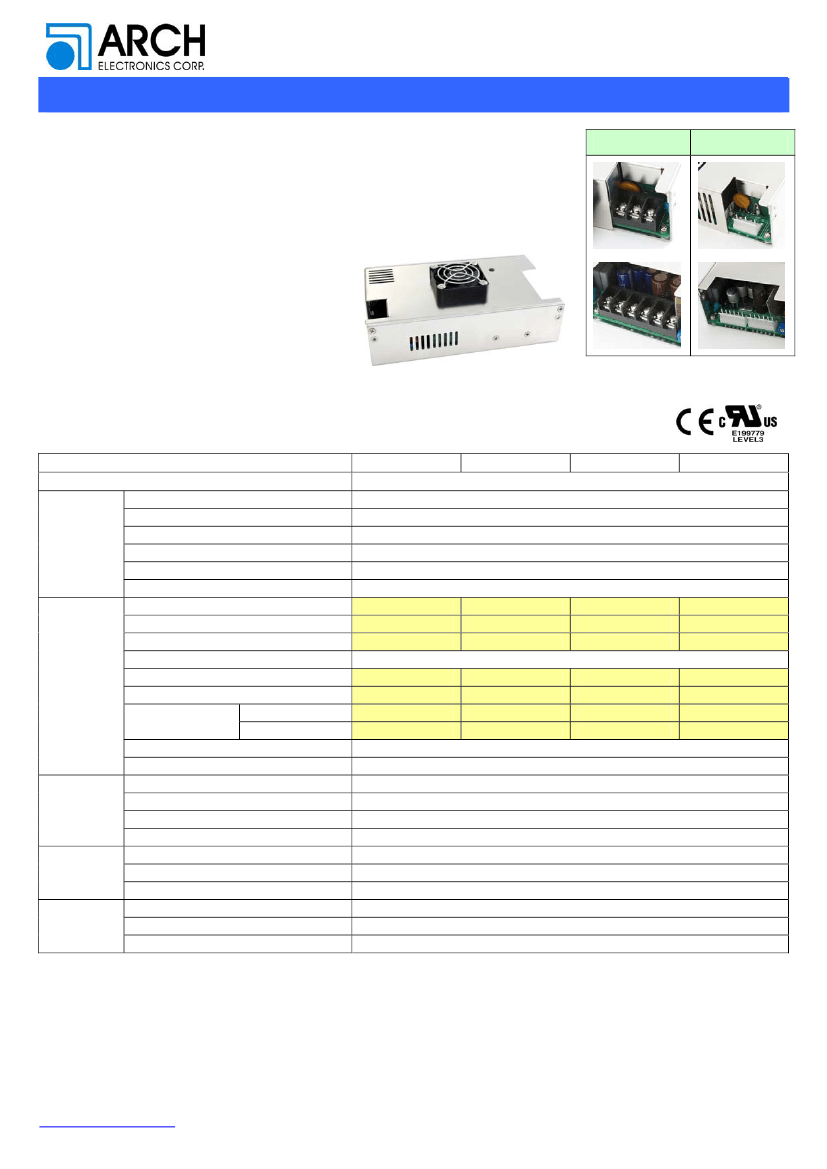

AC-DC Switching Power Supply
AQFC480E SERIES
KEY FEATURES
(CC Mode)
Standard
480 Watts
A Type
Enclosed Switching Power Supply
Universal Input: 90-264 VAC
Active P.F.C. Function, PF>0.95
Cooling by Built-in DC FAN
Protections: Over Load / Over Voltage /
Over Temperature / Short Circuit
.All
by Auto-recovery
Built-in Remote ON/OFF Control
Stand by 5V @ 0.6A
High Efficiency up to 92%
Ultra Compact Size: 7.0 x 4.2 x 2.37 Inches
3-Years Product Warranty
ELECTRICAL SPECIFICATIONS
Model No.
Max Output Wattage (W)
Voltage
Frequency (Hz)
Input
Current (Full load)
Inrush Current (<2ms)
Leakage Current
Power Factor
Voltage (V.DC.)
Constant Current Range (.VDC)
Current Adj. Range (A) max
Minimum Load
Output
Maximum Capacitive Load
Ripple & Noise (max.)
Efficiency (%.)
Hold-up Time
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Over Temperature
Short Circuit Protection
Input-Output (V.AC)
Isolation
Input-FG
Output-FG
5V Stand by
Function
Remote Control
FAN Control
(V.AC)
.(V.AC)
Vin:115(V.AC)
Vin:230(V.AC)
AQFC480E-12S
480W
90-264 VAC or 120-370 VDC
47-63 Hz
< 5.5 A max. (115 VAC) / < 3.0 A max. (230 VAC)
< 50 A max. (115 VAC) / < 70 A max. (230 VAC)
< 0.5 mA max.(240VAC 63Hz)
PF>0.95 (115 VAC) / PF>0.90 (230 VAC) at Full Load
12V
10 ~ 13.2V
5 ~ 40
5%
180000 uF
100mVp-p
85%
88%
10 ms min.
62.5 kHz ±10%
Auto recovery
Auto recovery
Auto recovery
Auto-recovery
3000V
1500V
500V
5VSB: 5V@0.6A ; Tolerance
±10%
, Ripple & Noise: 100m Vp-p (max.)
+RC / -RC: Power ON=open ; Power OFF=short
12VDC / 0.5A max.
1. All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
AQFC480E-24S
AQFC480E-36S
AQFC480E-48S
24V
20 ~ 26.4V
4 ~ 20
75000 uF
200mVp-p
87%
90%
36V
26 ~ 36V
3 ~ 13.33
50000 uF
200mVp-p
89%
92%
48V
30 ~ 50.4V
3 ~ 10
25000 uF
300mVp-p
88%
91%
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-1-
VER :
B_3
update :
2012.05.03
AC-DC Switching Power Supply
AQFC480E SERIES
(CC Mode)
480 Watts
ELECTRICAL SPECIFICATIONS
Model No.
Operating Temperature
Storage Temperature
Environment
Temperature Coefficient
Humidity
MTBF
Vibration
Physical
Safety
EMC
Dimension (L x W x H)
Weight
Agency Approvals
EMI
(Conducted & Radiated Emission)
EMS (Noise Immunity)
AQFC480E-12S
AQFC480E-24S
-20°C…+70°C (with derating)
-25°C…+85°C
±0.03%/°C ( 0~50°C )
95% RH
>100,000 h @ 25°C (MIL-HDBK-217F)
10~500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes.
7.0 x 4.2 x 2.37 Inches
950 g
UL60950-1, CE(Surge:4KV)
EN 55022 class B
EN 55024
1. All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
AQFC480E-36S
AQFC480E-48S
(177.8 x 106.5 x 60.3 mm ) Tolerance
±0.5
mm

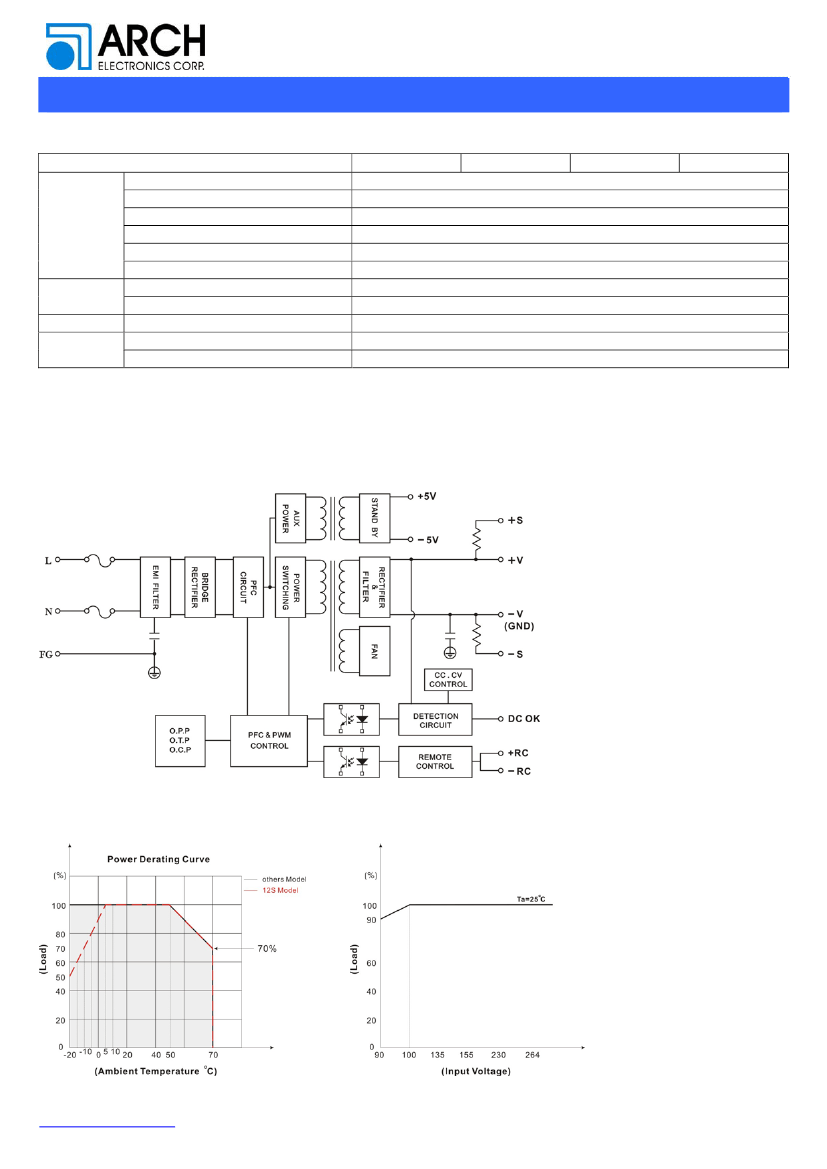

BLOCK DIAGRAM
DERATING
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-2-
VER :
B_3
update :
2012.05.03
AC-DC Switching Power Supply
AQFC480E SERIES

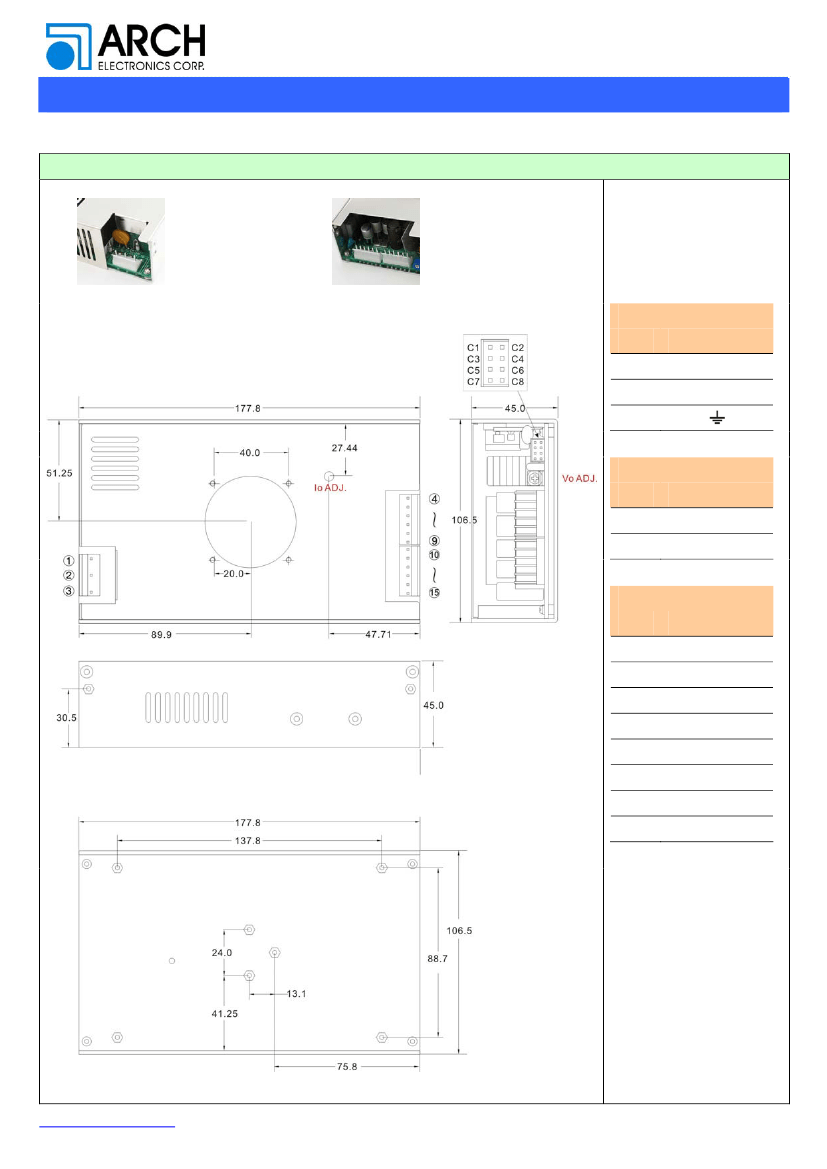

MECHANICAL DIMENSION
Standard
(CC Mode)
480 Watts
ASSEMBLY INSTRUCTIONS
*U Case
T=2.0mm
AC Input Terminal Pin
PIN#
1
SINGLE
AC IN (N)
AC IN (L)
Customer screws into the length of the case no higher than 0.5mm
(Namely screw length for load plate thickness plus 2.5mm
2
3
DC Output Terminal Pin
PIN#
4~6
7~9
SINGLE
+DC OUT
-DC OUT
Connector Pin (CN4)
PIN#
C1
C2
C3
C4
C5
C6
C7
C8
SINGLE
NC
NC
+RC
-RC
NC
NC
+5V SB
-5V SB
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-3-
VER :
B_3
update :
2012.05.03
AC-DC Switching Power Supply
AQFC480E SERIES

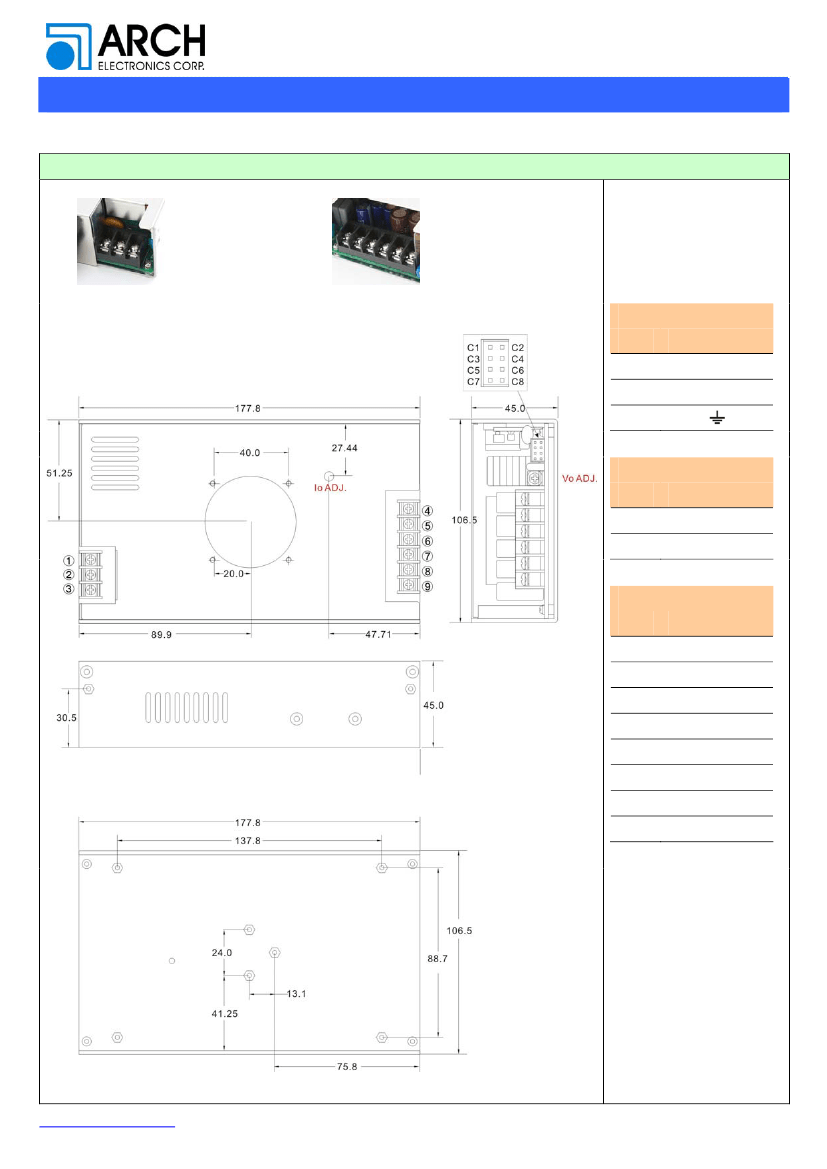

MECHANICAL DIMENSION
A Type
(CC Mode)
480 Watts
ASSEMBLY INSTRUCTIONS
*U Case
T=2.0mm
AC Input Terminal Pin
PIN#
1
SINGLE
AC IN (N)
AC IN (L)
Customer screws into the length of the case no higher than 0.5mm
(Namely screw length for load plate thickness plus 2.5mm
2
3
DC Output Terminal Pin
PIN#
4~9
10~15
SINGLE
+DC OUT
-DC OUT
Connector Pin (CN4)
PIN#
C1
C2
C3
C4
C5
C6
C7
C8
SINGLE
NC
NC
+RC
-RC
NC
NC
+5V SB
-5V SB
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-4-
VER :
B_3
update :
2012.05.03
AC-DC Switching Power Supply
AQFC480E SERIES
(CC Mode)
480 Watts

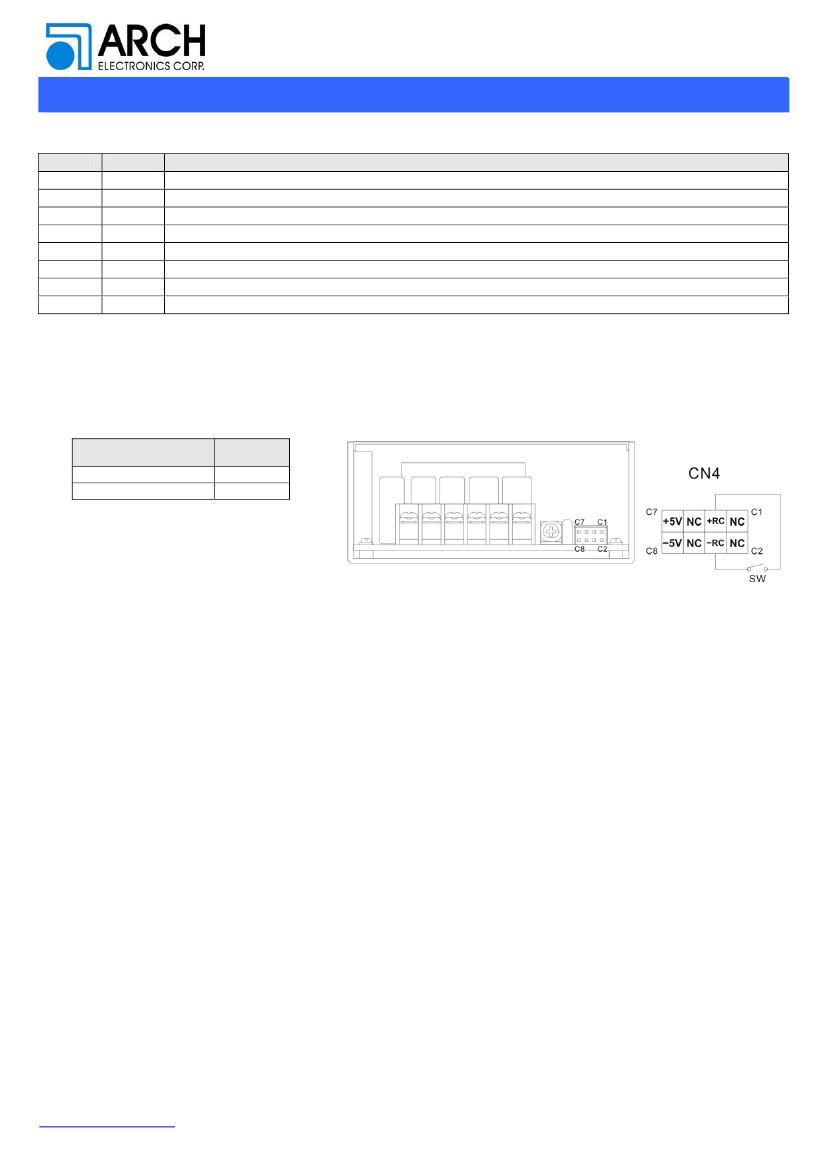

FUNCTION DESCRIPITON of CN4 :
Pin No.
C1
C2
C3
C4
C5
C6
C7
C8
Function
NC
NC
+RC
-RC
NC
NC
+5V SB
-5V SB
Stand by voltage output ground 4.5~5.5V, referenced to pin C8(-5V SB). The maximum load current is 0.6A.
Stand by voltage output ground.
Turns the output on and off by electrical or dry contact between pin C4 (-RC), Short: Power OFF, Open: Power ON.
Remote control ground.
Description
FUNCTION MANUAL :
Remote Control
It can be turned ON/OFF by using the "Remote Control" function.
Between RC+(pinC3) and
RC-(pinC4)
Output
Status
SW ON (Short)
SW OFF (Open)
OFF
ON
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-5-
