REF01RM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> REF01RM

REF01RM: DescriptionThree Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,; CategoryPower/power management The power supply circuit; File Size403KB，8 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

REF01RM Overview

Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,

REF01RM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.03 V
Minimum output voltage	9.97 V
Nominal output voltage	10 V
Package body material	METAL
Encapsulate equivalent code	TO-99
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	1.4 mA
Maximum supply voltage (Vsup)	40 V
Minimum supply voltage (Vsup)	11.4 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	20 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.22%

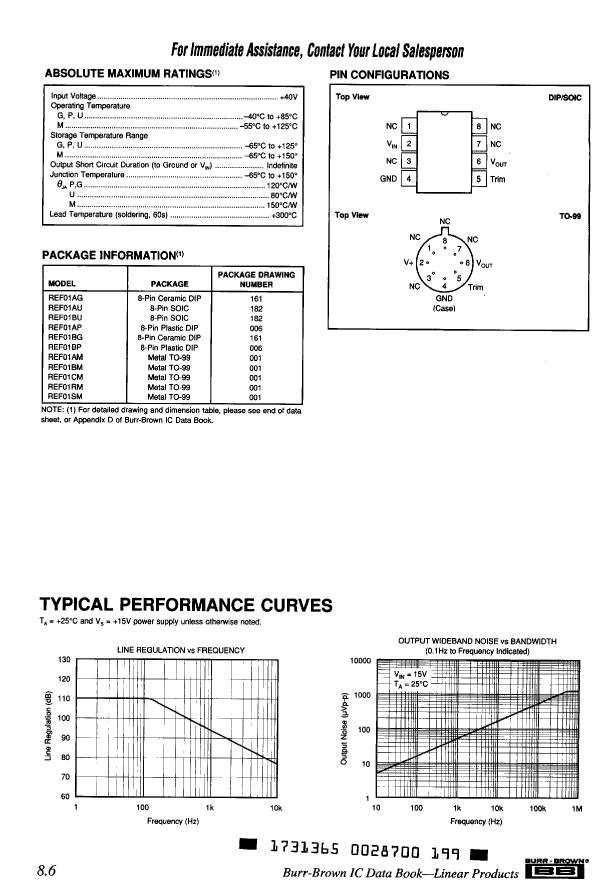

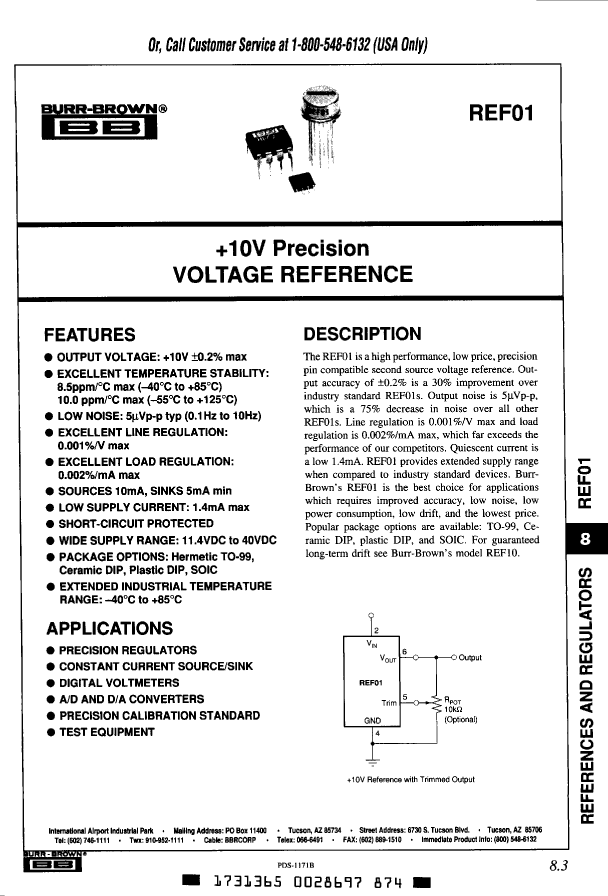

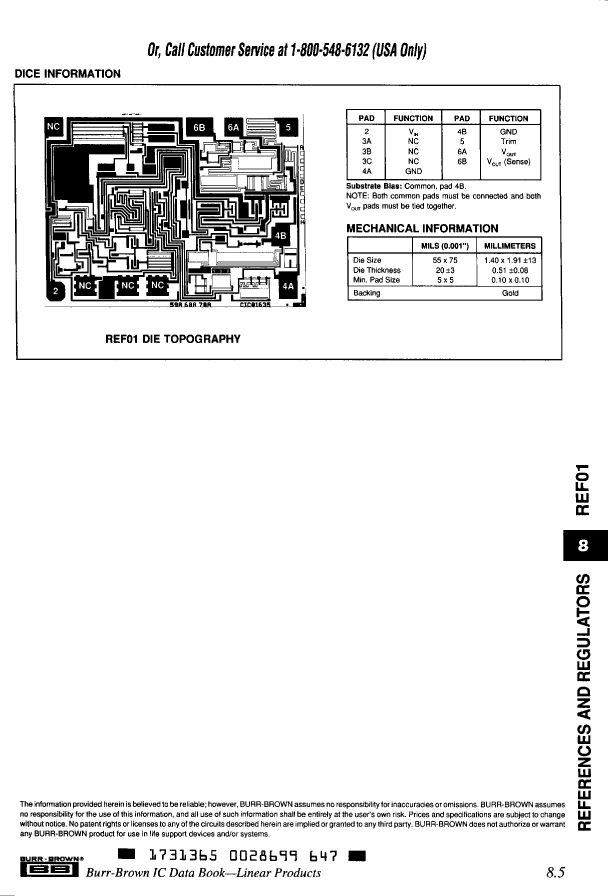

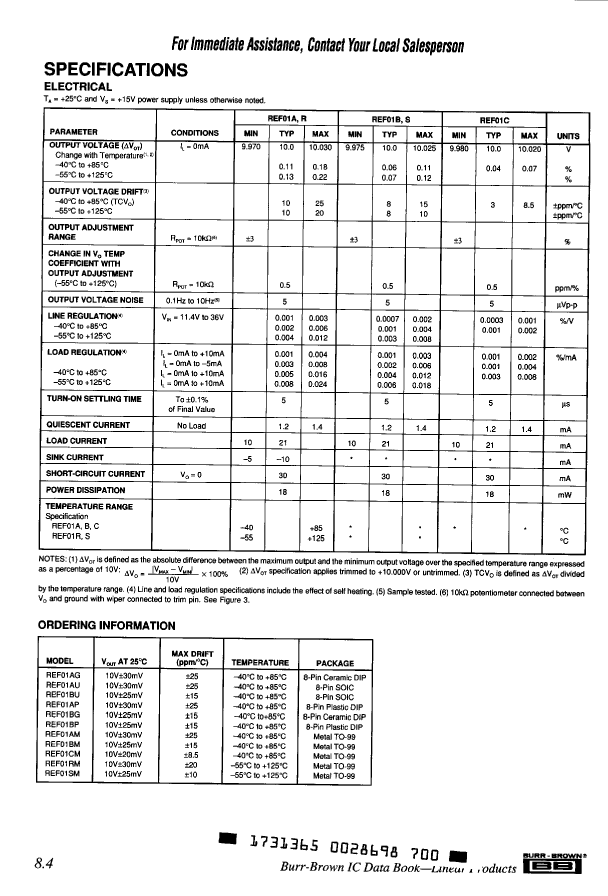

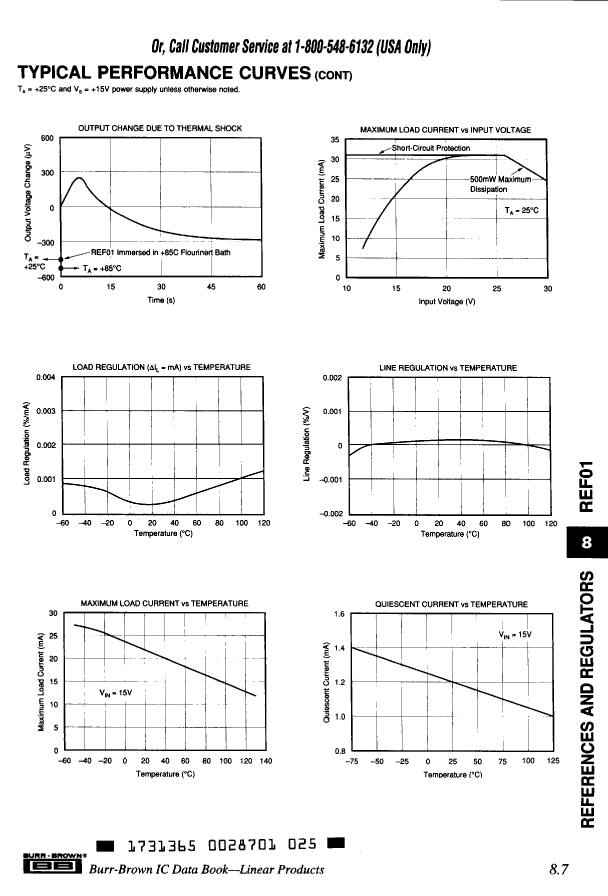

Preview

Download Datasheet

View All

REF01RM Related Products

	REF01RM	REF01AM	REF01BM	REF01AG	REF01CM
Description	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP8,	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	R-CDIP-T8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C
Maximum output voltage	10.03 V	10.03 V	10.025 V	10.03 V	10.02 V
Minimum output voltage	9.97 V	9.97 V	9.975 V	9.97 V	9.98 V
Nominal output voltage	10 V	10 V	10 V	10 V	10 V
Package body material	METAL	METAL	METAL	CERAMIC, METAL-SEALED COFIRED	METAL
Encapsulate equivalent code	TO-99	TO-99	TO-99	DIP8,.3	TO-99
Package shape	ROUND	ROUND	ROUND	RECTANGULAR	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	1.4 mA	1.4 mA	1.4 mA	1.4 mA	1.4 mA
Maximum supply voltage (Vsup)	40 V	40 V	40 V	40 V	40 V
Minimum supply voltage (Vsup)	11.4 V	11.4 V	11.4 V	11.4 V	11.4 V
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	20 ppm/°C	25 ppm/°C	15 ppm/°C	25 ppm/°C	9 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	THROUGH-HOLE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	DUAL	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	YES	YES	YES	YES	YES
Maximum voltage tolerance	0.22%	0.18%	0.11%	0.18%	0.07%
Maker	Burr-Brown	-	Burr-Brown	Burr-Brown	Burr-Brown
